8. Technical references

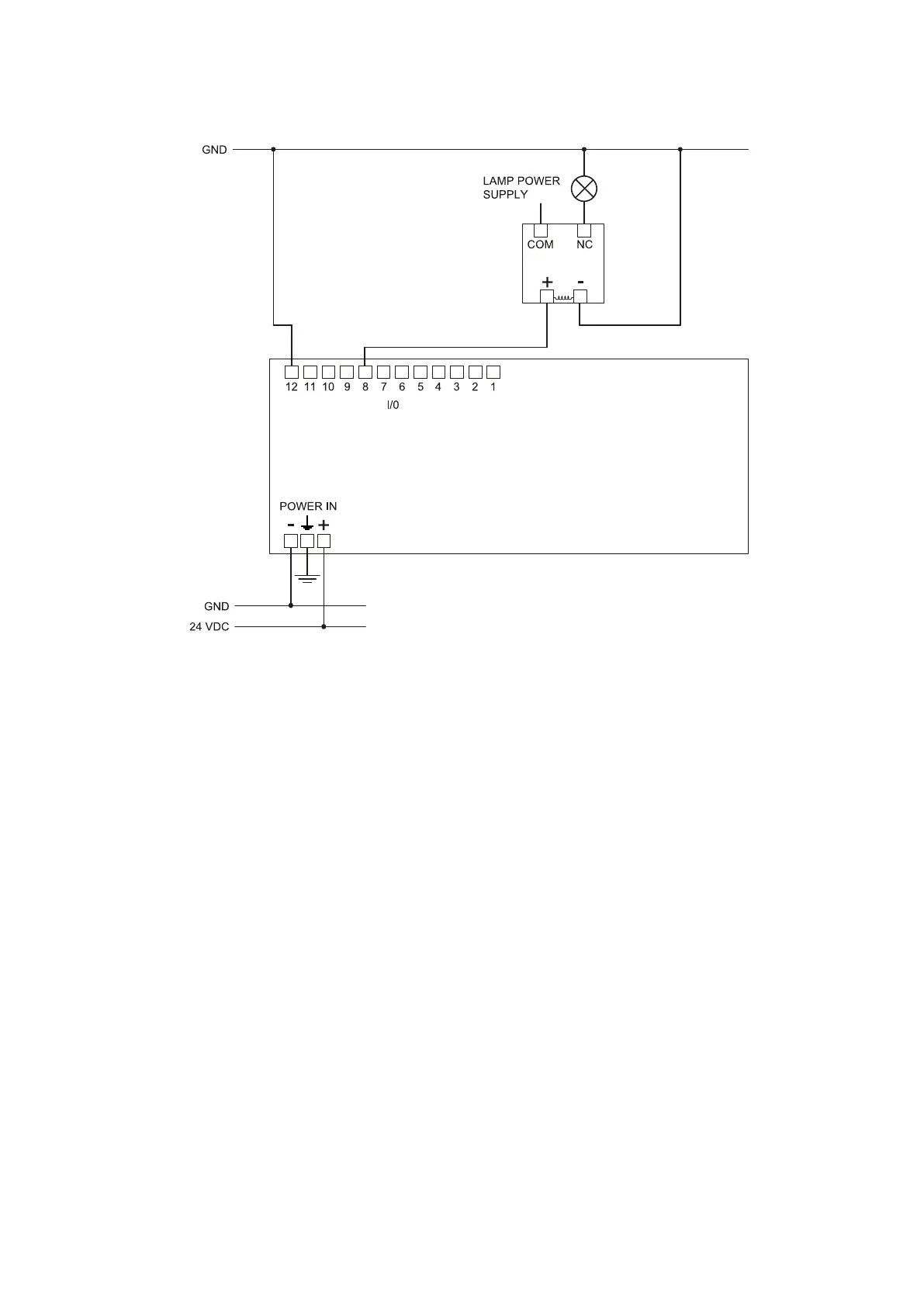

8.3.8 Diagnostic output connection

Note: the indicated light turns on in the presence of a failure.

Digital I/Osettings (through the Inxpect Safety application)

Digital input #1 Not configured

Digital input #2 Not configured

Digital output #1 Not configured

Digital output #2 Not configured

Digital output #3 Not configured

Digital output #4 System diagnostic signal
