7
2.2. Identification of Parts
1. Altitude Lock 2. Counterweight Shaft
3. Counterweight Shaft Lock 4. AZMP Mount Body
5. Tripod Bolt 6. Tripod Support Spreader
7. Tripod Lock 8. Dovetail Saddle Lock Screw
9. Level Adjustment Screw 10. Tripod Knob
11. Bubble Level 12. Hand Controller hanger
13. Vixen/Losmandy Dual Saddle 14. Hand Controller Socket (HBX)
15. RS232 Socket 16. Battery Status LED
17. Power Switch 18. Battery Charging Socket

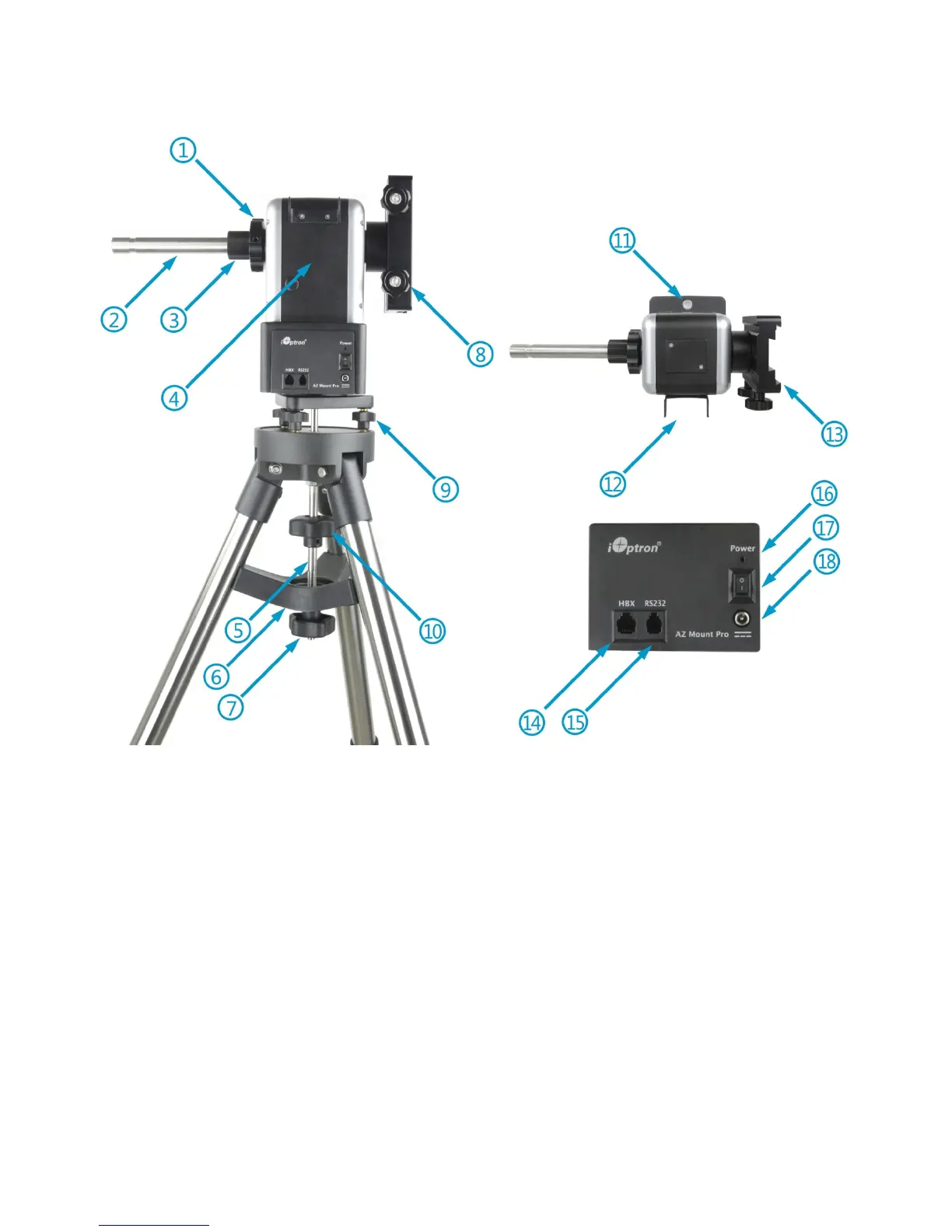

Figure 1. AZMP mount assembly
