17

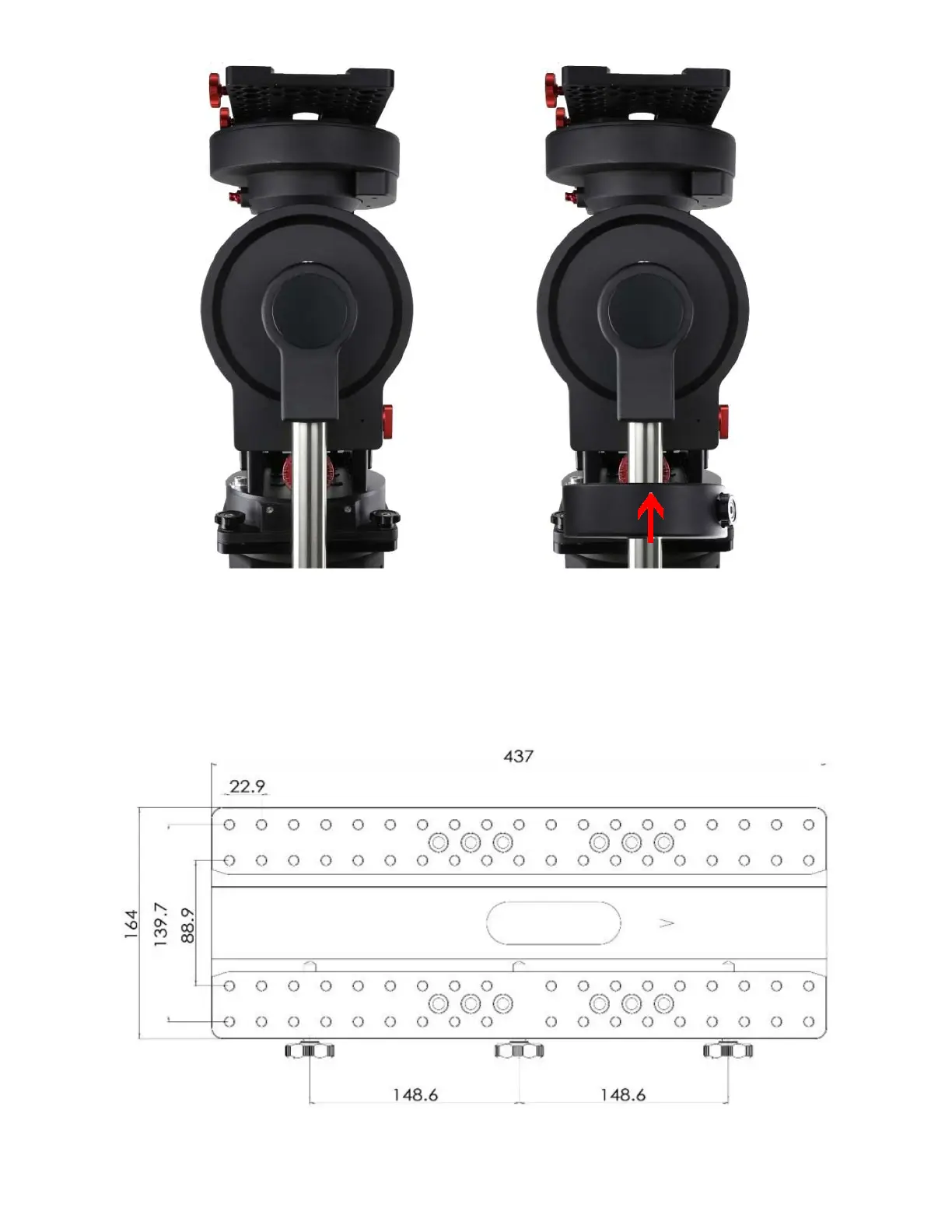

Figure 15. Loading counterweight
You may need more CWs for heavier payload, or smaller size CW for lighter scope.
The CEM120 has a Losmandy-D dovetail saddle plate, as shown in Figure 16. Release the
dovetal saddle locking knobs and slide the telescope dovatal plate into the saddle. Tighten the saddle
locking knob.
Figure 16. CEM120 dovetail saddle plate
