2.4. Go2Nova
®
Hand Controller
Either Go2Nova
®
8407+ or 8410 hand controller (HC) works with a CEM40 mount. Shown in Figure 12 is an
8410 HC. The difference between an 8407+ and an 8410 is if there is a RS232 port on the HC for firmware
upgrade. The HC has an integrated heater that ensures the LCD display will work at the temperature as low
as -20ºC(-4ºF). It has a large LCD screen, function, direction, and number keys on the front; a red LED
reading light on the back; and a HBX (6-pin) at the bottom.
The CEM40 mount can be operated without the hand controller attached if it is controlled via a
SmartPhone/Tablet/Computer.

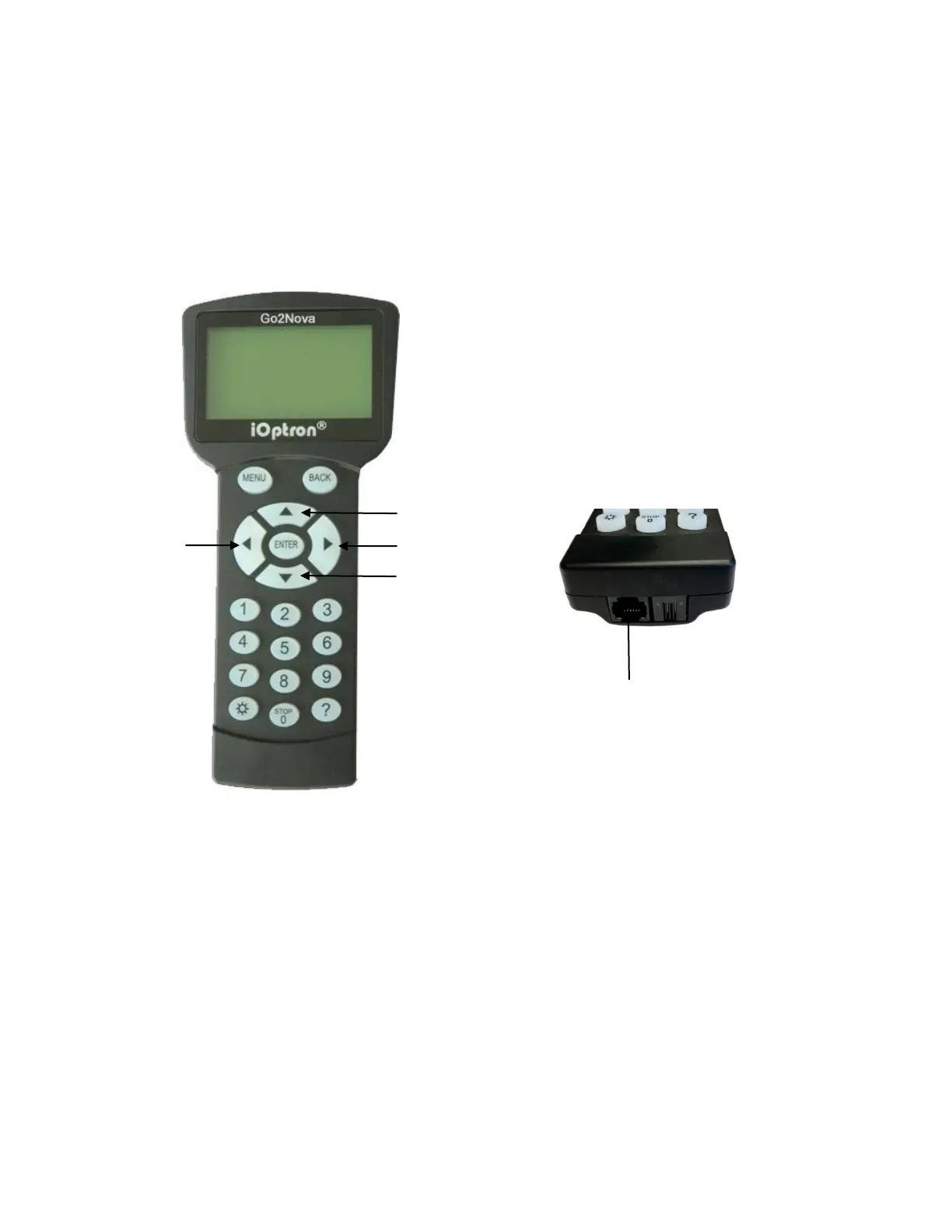

Figure 12. Go2Nova
®
8410 hand controller
2.4.1. Key Description
 MENU Key: Press “MENU” to enter the Main Menu.
 BACK Key: Move back to the previous screen, or end/cancel current operation, such as slewing.
 ENTER Key: Confirm an input, go to the next menu, select a choice, or slew the telescope to a
selected object.
 Arrow (▲▼◄►) Keys: The arrow keys are used to control the movement of DEC and R.A. axes.
Press and hold ▲(DEC+),▼(DEC-) buttons to move a telescope along the DEC direction,
◄(R.A.+), ►(R.A.-) to move a telescope along the R.A. direction. They are also used to browse
the menu or move the cursor while in the menu. Press and holding an arrow key for a fast
scrolling.
 Number Keys: Input numerical values. Also used to adjust speeds (1: 1X; 2: 2X; 3: 8X; 4: 16X; 5:
64X; 6: 128X; 7: 256X; 8: 512X; 9: MAX)
 Light Key(☼): Turns on/off the red LED reading light on the back of the controller.
HBX
Port
R.A.+
R.A.-
DEC-
DEC+

iOptron CEM40 Specifications

General

Mount	Center-balanced Equatorial Mount (CEM)
Structure Material	All metal, CNC machined
Exterior finish	Anodized red/black
Level indicator	Level bubble
Dovetail saddle	8" Losmandy D & Vixen
Hand Controller	Go2Nova® HC, 212, 000 objects database, star recognition
Cable management	Yes
Tripod	LiteRoc 1.75" Stainless Steel(7kg), optional tri-pier
Max payload*	40 lb (18kg), exclude counterweight
Payload/Mount weight ratio	2.28:1
PEC	PPEC/Real time PEC
Tracking accuracy (PE)**	<±7.5 arcsec p-p (CEM40, CEM40G), or <0.3 arcsec RMS (CEM40EC)
Motor resolution	0.08 arc seconds
Slew speed	1×, 2×, 8×, 16×, 64×, 128×, 256×, 512×, MAX(~4.5°/sec)
Latitude adjustment range	0°~ 60° (special CW shaft mounting if <10° )
Azimuth adjustment range	± 6°
Operation temperature	-10°C ~ +40°C
Right Ascension worm wheel	Φ110mm, 216 teeth aluminum
Declination worm wheel	Φ110mm, 216 teeth aluminum
Counterweight shaft	Φ28X280 mm, Stainless Steel (1.2 kg)
Counterweight	11 lb (5 kg) X1
Motor drive	Precision stepper motor, 1.8º/128X micro-step
Meridian treatment	Stop (0-14° pass), auto flip
Power consumption	0.6A(Tracking), 0.9A(GOTO)
Power requirement	12V DC 5A
AC adapter	100V ~ 240V (included, indoor use only)
Polar Scope	Internal iPolarTM electronic polar scope
GPS	Yes
WIFI	External (optional)
Guiding scope/camera	Built in guiding scope and camera, iGuiderTM (CEM40G)
Autoguide port	ST-4
Communication port	USB Port (on mount)
PC computer control	Yes (ASCOM)
Warranty	Two year limited

Weight and Dimensions

Mount weight	17.4 lb (7.9kg)
Mount base size	Φ120 mm
