iOptron CEM40 User Manual

15
3. CEM40 Mount Assembly
3.1. CEM40 Mount Assembly
NOTE: The CEM40 mount is a precision astronomical instrument. It is highly recommended that you
read this entire manual and become familiar with the nomenclature and function of all components
before starting assembly.
WARNING: DO NOT rock the counterweight shaft rigorously. This may damage the
worm/drive gear system and such damage will not be covered by warranty.
STEP 1. Remove mount head from package
Remove mount head from package: The RA axle is locked by an Allen wrench. Make sure it is
inserted all the way in. Check the R.A. Gear Switch and make sure it is unlocked before removing the
mount from the box.

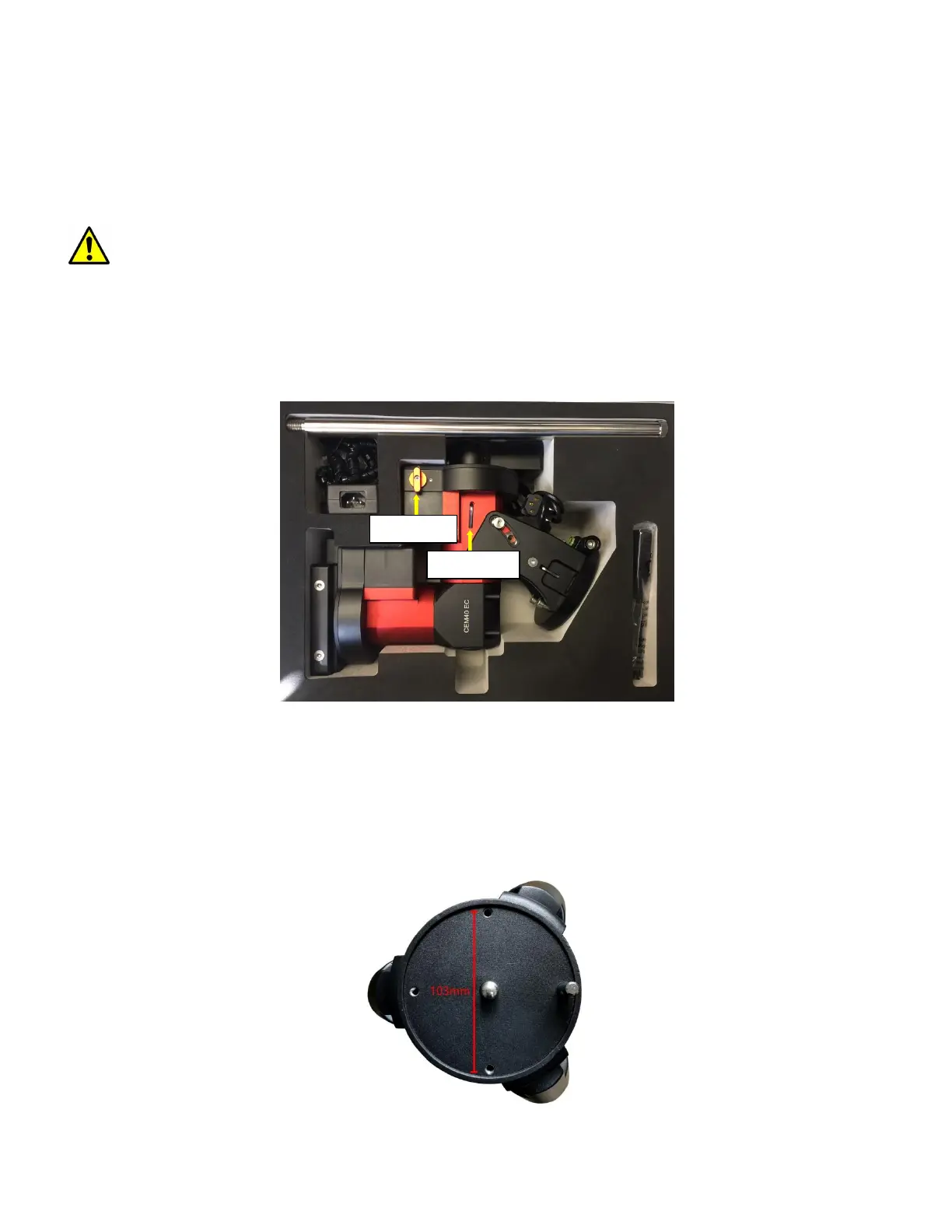

Figure 15. Mount in a hard case
STEP 2. Set up tripod
The tripod top is 120 mm in diameter with 2x M6 holes 103 mm apart for mounting. Two additional
M6 holes are for the Alignment Peg (the one on top of a leg is for high latitude use; the other one between
two legs is for low latitudes). Thread the Alignment Peg into the correct M6 hole. Insert the Accessory Tray
through the center rod and secure the setup by tightening Locking Knob from underneath.
Figure 16. Tripod top
Gear Switch
Allen wrench

iOptron CEM40 Specifications

General

Mount	Center-balanced Equatorial Mount (CEM)
Structure Material	All metal, CNC machined
Exterior finish	Anodized red/black
Level indicator	Level bubble
Dovetail saddle	8" Losmandy D & Vixen
Hand Controller	Go2Nova® HC, 212, 000 objects database, star recognition
Cable management	Yes
Tripod	LiteRoc 1.75" Stainless Steel(7kg), optional tri-pier
Max payload*	40 lb (18kg), exclude counterweight
Payload/Mount weight ratio	2.28:1
PEC	PPEC/Real time PEC
Tracking accuracy (PE)**	<±7.5 arcsec p-p (CEM40, CEM40G), or <0.3 arcsec RMS (CEM40EC)
Motor resolution	0.08 arc seconds
Slew speed	1×, 2×, 8×, 16×, 64×, 128×, 256×, 512×, MAX(~4.5°/sec)
Latitude adjustment range	0°~ 60° (special CW shaft mounting if <10° )
Azimuth adjustment range	± 6°
Operation temperature	-10°C ~ +40°C
Right Ascension worm wheel	Φ110mm, 216 teeth aluminum
Declination worm wheel	Φ110mm, 216 teeth aluminum
Counterweight shaft	Φ28X280 mm, Stainless Steel (1.2 kg)
Counterweight	11 lb (5 kg) X1
Motor drive	Precision stepper motor, 1.8º/128X micro-step
Meridian treatment	Stop (0-14° pass), auto flip
Power consumption	0.6A(Tracking), 0.9A(GOTO)
Power requirement	12V DC 5A
AC adapter	100V ~ 240V (included, indoor use only)
Polar Scope	Internal iPolarTM electronic polar scope
GPS	Yes
WIFI	External (optional)
Guiding scope/camera	Built in guiding scope and camera, iGuiderTM (CEM40G)
Autoguide port	ST-4
Communication port	USB Port (on mount)
PC computer control	Yes (ASCOM)
Warranty	Two year limited

Weight and Dimensions

Mount weight	17.4 lb (7.9kg)
Mount base size	Φ120 mm
