IPSO DR30 - Control Door Assembly

Page 30
CSA-01582WH Complete control door assy. - Simple microprocessor
CSA-01407WH Complete control door assy. - Double Timer
Note: Door rod assy. is not part of above complete assy.
Ref. Part No. Description
No.
1 CSA-01578WH Control door assy. - Simple microprocessor
1 CSA-01408WH Control door assy. - Double timer
2 CA-00856-0 Trim - Control door
3 LA-11941-0 Cam lock-Control door
4 LA-00121-0 Lock - Control door
5 LA-00119-0 Key - Control door
6 CA-13098-0 Gasket
7 CA-10085-0 Support rod
8 SB-00951-0 Screw -Phillips #8 X 7/16 flat hd.
9 SB-00971-0 Tinnerman push- on fastener
10 TU7733 Screw self drilling 8-18*1/2"

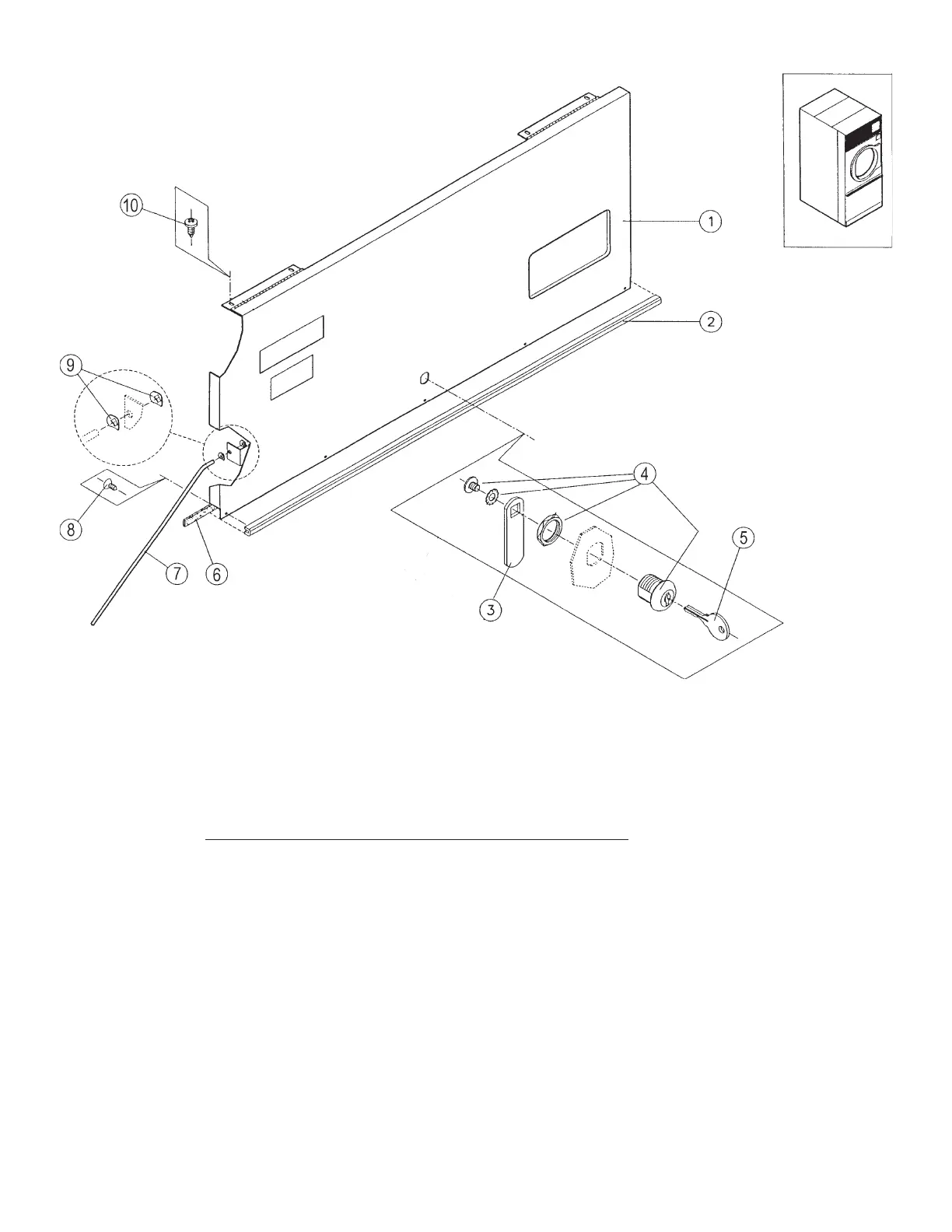

CONTROL DOOR ASSEMBLY
