Page 35
Ref. Part No. Description
No.
CSA-01386WH Complete Asm - WMC30 OPL
CSA-01465WH Complete Asm - WMC30 Coin
1 CSA-01387WH Lint door w/latch holes(white) OPL
1 CSA-01098WH Lint door w/lock holes(white) Coin
2 CA-00833-0 Kickplate
3 SB-00949-0 Fastener plastic kickplate
4 CA-11930-0 Insulation lower frontpanel WMC30
5 SB-00915-0 Screw self drilling #10-16 X 5/8
6 TU2853 Gasket
7 CA-00646-0 Handle lint door
8 CA-00841-0 Label (not part of assy.)
9 CA-00655-0 Trim-rubrail-specify 33” long
10 LA-11359-0 Cam lock
11 LA-00121-0 Lock
12 LA-00119-0 Key
13 LA-00124-0 Latch - trigger
For OPL models only.

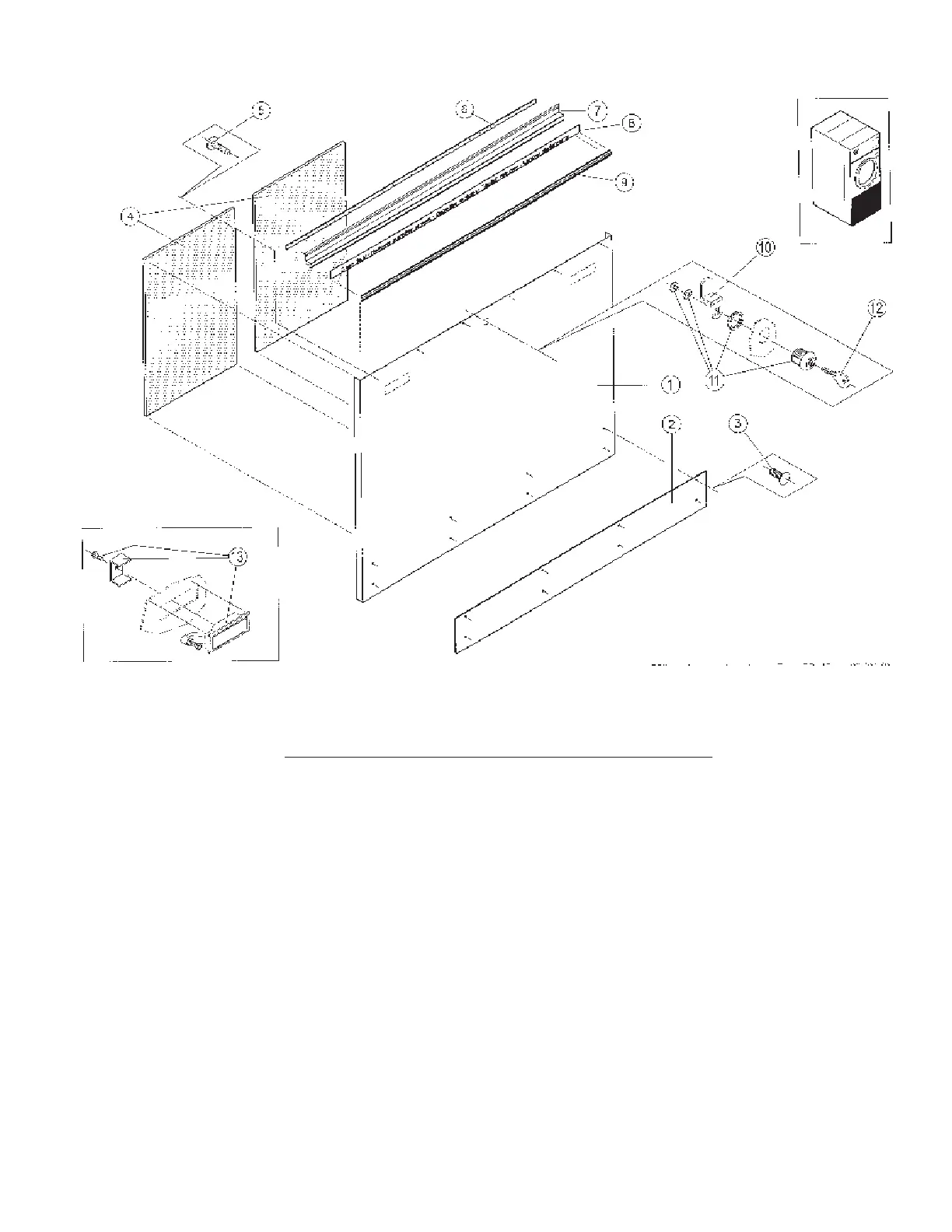

LINT DOOR ASSEMBLY
