Page 34
Ref. Part No. Description
No.
MSD-00859WH Complete door assy (consists of items 1 thru 9 only)
1 MD-00362-0 Door Glass - clear
2 MD-00354-0 Gasket - door glass - straight
3 TU5158 Latch & catch pin asm.
5 MD-00337-0 Magnet - reed switch
6 MD-00338-0 Gasket - door rim
7 TU2874 Basket door handle
8 MSD-00857WH Basket door
9 TU3215 Screw #10 - 32 X 3/8”
10 SB-00852-0 Washer 1/4” external starluck
11 SB-00921-0 Screw 1/4”-20 round head
12 MD-00348-0 Hinge spacer

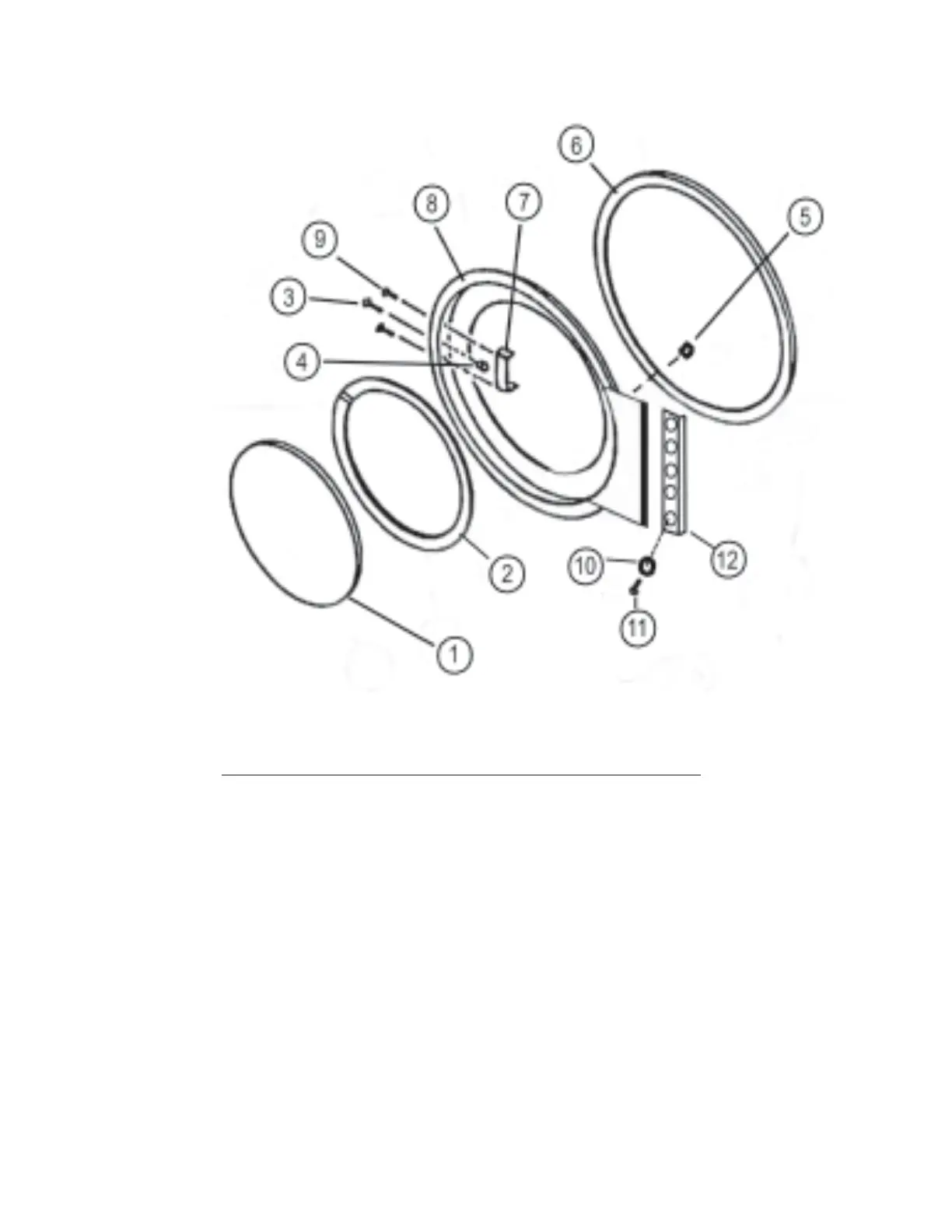

DOOR ASSEMBLY
