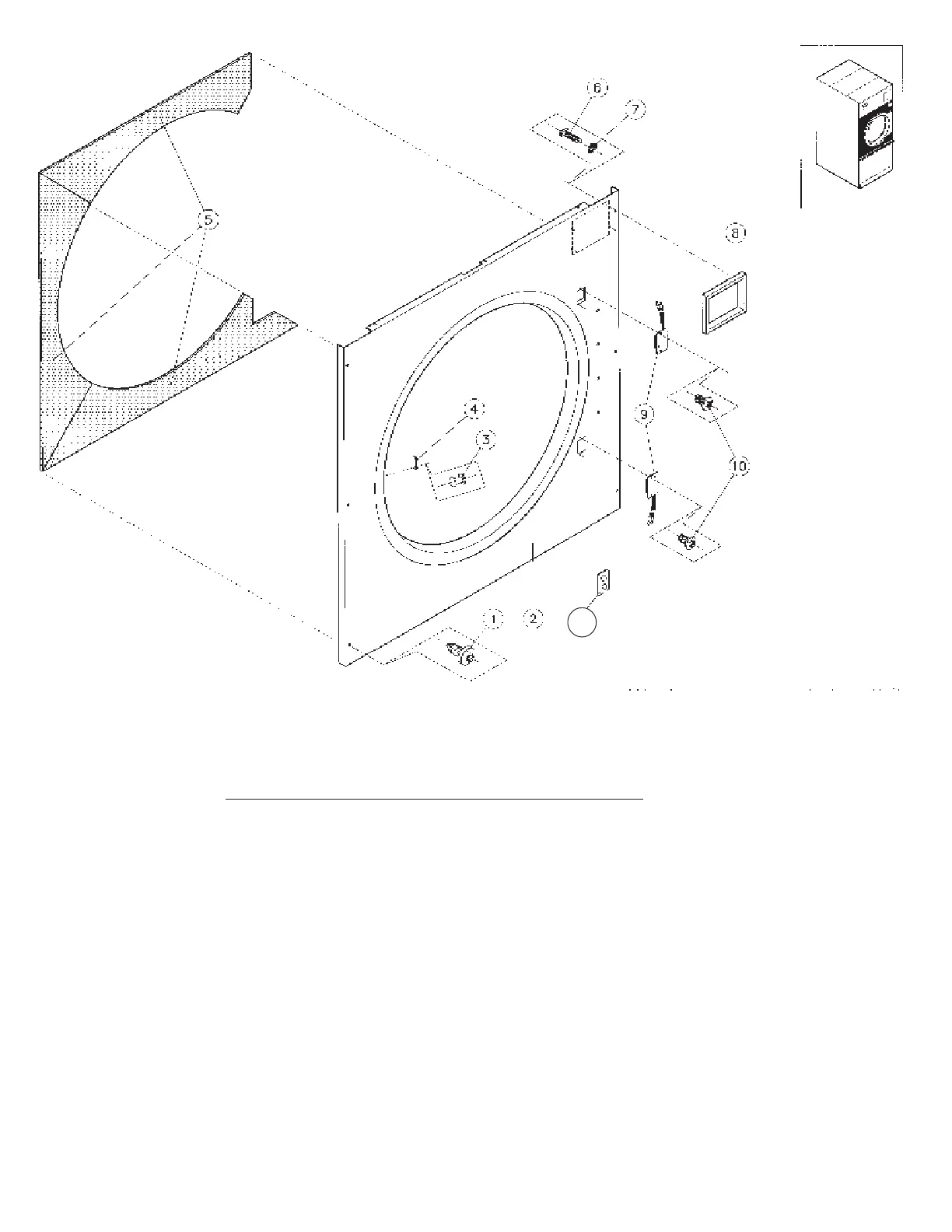

IPSO DR30 - Front Panel Assembly

Page 31
Ref. Part No. Description
No.
1 SB-00915-0 Screw self drilling #10-16 X 5/8
2 CSA-01564WH Front panel, welded assy.-Coin
2 CSA-01563WH Front panel, welded assy-OPL
3 TU5158 Latch & catch asm.
5 CA-00675-1 Insulation
6 SB-00924-0 Screw 4-40*3/8 taptite
7 SB-00938-0 Washer 4 external tooth
8 CA-00699-0 Bezel - Coin box
9 ESA-00862-0 Reed switch assy.
10 SB-00975-0 Screw 6-32*1/4 phillips
11 EA-00827-0 Mounting plate - Reed switch
FRONT PANEL ASSEMBLY
11
