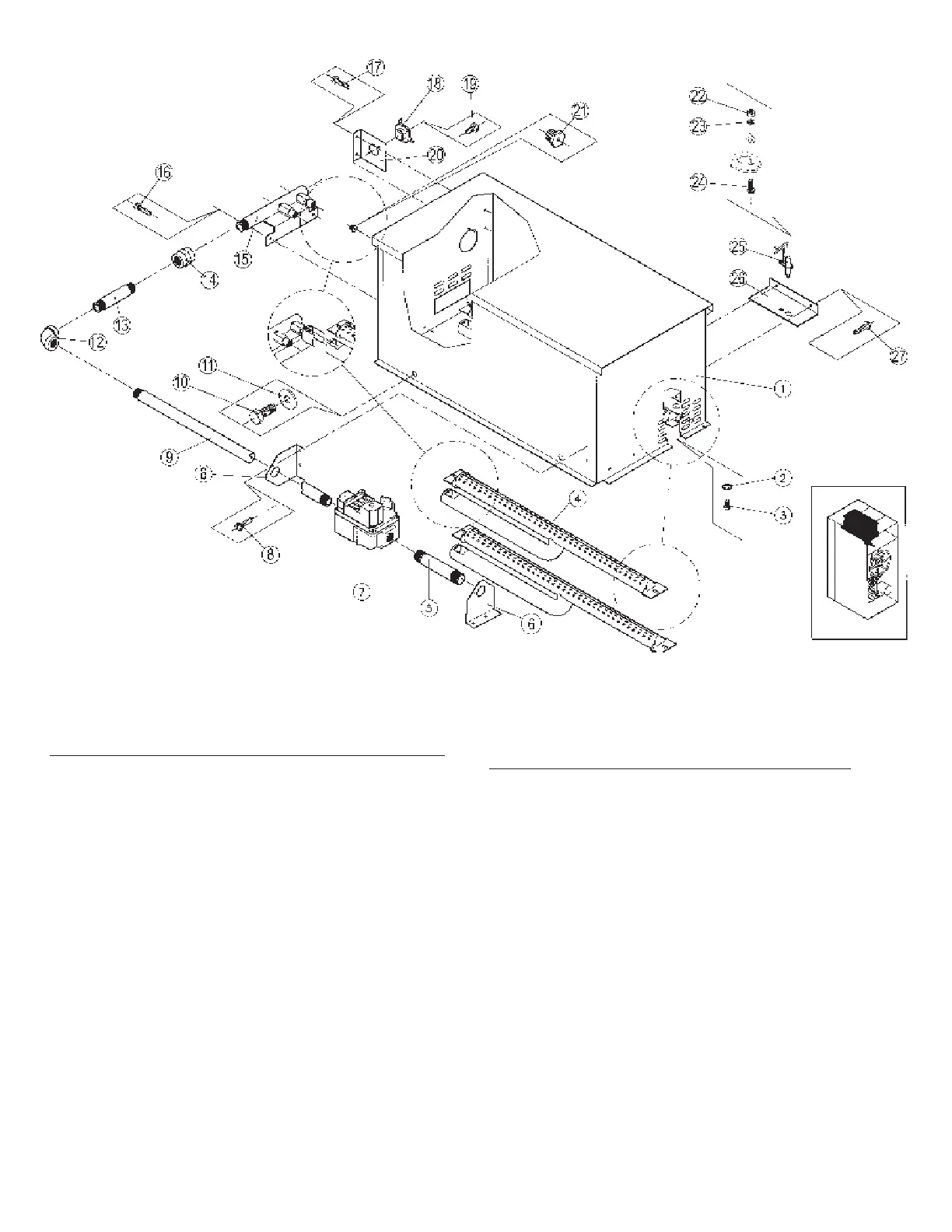

IPSO DR30 - Parts; Gas Heating Unit Assembly

Page 43
Ref. Part No. Description
No.
GSA-00784-0 Comp. assy. - Nat. gas
GSA-00775-0 Comp. assy. - LP gas
1 GSA-00255-0 Housing gas burner
2 TU11613-0 Lock washer 10 external tooth
3 SB-00831-0 Screw 10-32*3/8"
4 GA-00756-0 Gas burner
5 LB20 Nipple - 1/2” X 3”
6 CA-11878-0 Bracket -pipe
7 GA-00770-0 Gas valve 24V 1/2"(Nat.gas)
8 TU7733 Screw self drilling 8-18 X 1/2"
9 FG274 Gas pipe 1/2 X 30”
10 TU5439 Screw cap 5/16-18X3/4"
11 VSB130 Washer 5/16"
12 390501053 Elbow 1/2"
13 OP308 Nipple 1/2” X 4”
Ref. Part No. Description
No.
14 OP314 Union (gas pipe)
15 GSA-00508-0 Manifold assy.
16 TU7733 Screw self drilling 8-18X1/2"
17 TU7733 Screw self drilling 8-18X1/2"
18 EA-00245-0 Thermostat HI LIMIT -330
0
19 TU7733 Screw self drilling 8-18 X 1/2"
20 CA11028-0 Bracket thermostat
21 GA-00761-0 Gas orifce (specify size)
22 TU3266 Hex nut-brass 8-32"
23 AT368 Lock washer #8
24 M262 Screw mach.truss head 8/32X3/8"
25 GA-11003-0 Gas ignition electrode
26 GA-10457-0 Bracket
27 TU7733 Screw self drilling 8-18 X 1/2"
GAS HEATING UNIT
