IPSO DR30 - Rear Control Panel Assembly

Page 42
Ref. Part No. Description
No.
ESA-00966-0 Wire box assy, rear, gas - 115V - 2 timer
ESA-00974-0 Wire box assy, rear, gas - 208/240V - 2 timer
1 CA-11935-0 Rear wiring box
2 SB-00868-0 Bushing, insulating 7/8”
3 SB-00867-0 Bushing, insulating 1/2”
4 TU7733 Screw self drilling 8-18 X 1/2"
5 GA-00765-0 Ignitor ram III DSI
6 EA-00651-0 Varistor/relay/motor
7 GA-00803-0 High voltage lead/ram
8 TU2490 Plug button
9 EA-00680-0 Knock-out plug
10 EA-11618-0 Motor relay- 3 pole -30amp - 24V
Ref. Part No. Description
No.
11 EA-00467-0 Terminal block
12 TU7733 Screw self drilling 8-18 X 1/2"
13 TU7738 Ground lug
14 TU7733 Screw self drilling 8-18 X 1/2"
15 SB-00865-0 Screw self drilling 6 - 20 X 1/2
16 EA-00210-0 Terminal block
17 EA-00646-0 Transformer 24V
18 TU7733 Screw self drilling 8-18 X 1/2"

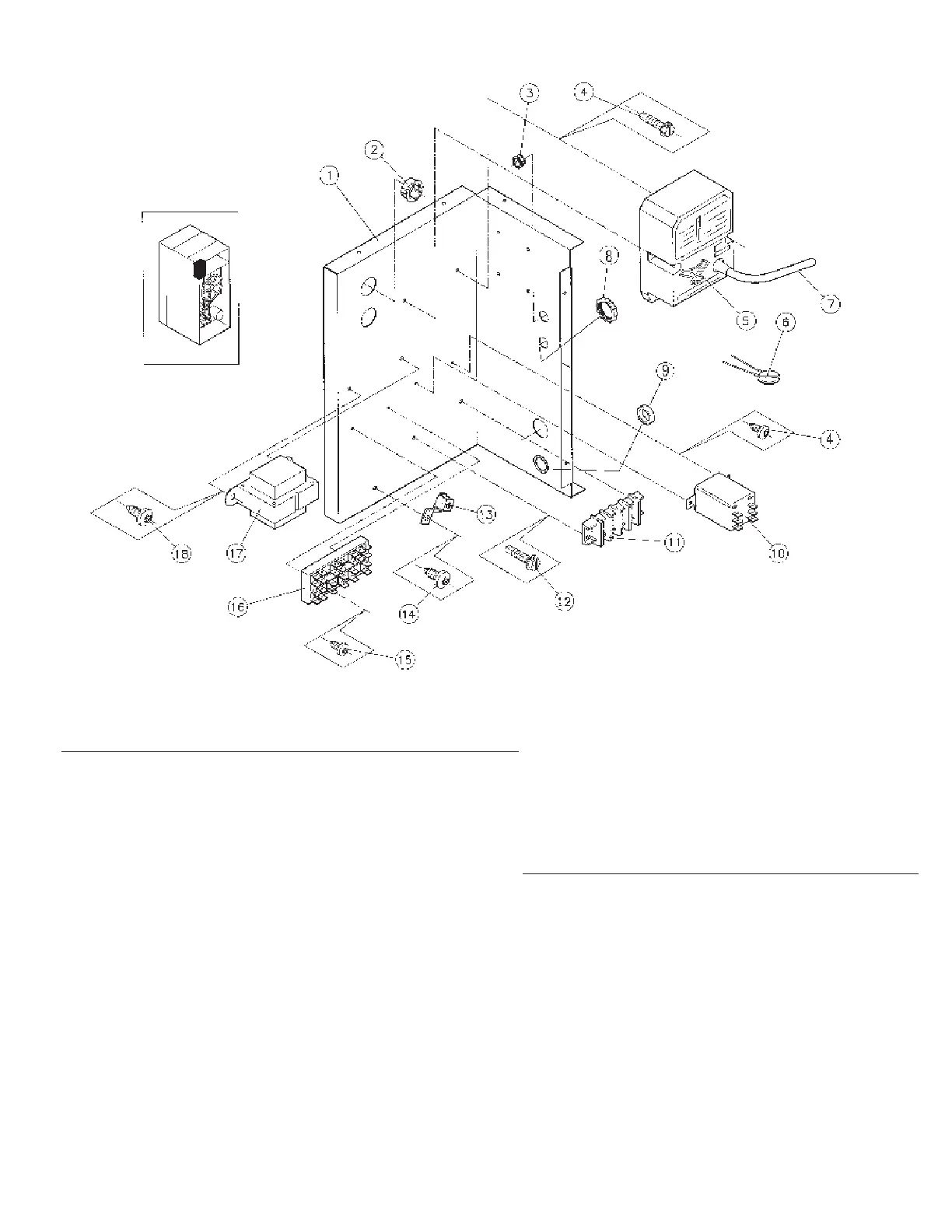

REAR CONTROL PANEL ASSEMBLY - NON-REVERSING
DOUBLE TIMER MODELS-GAS ONLY
