IPSO DR30 - Wire Box Assembly

Page 33
2
4
5
3
1
2
1
2
2
67

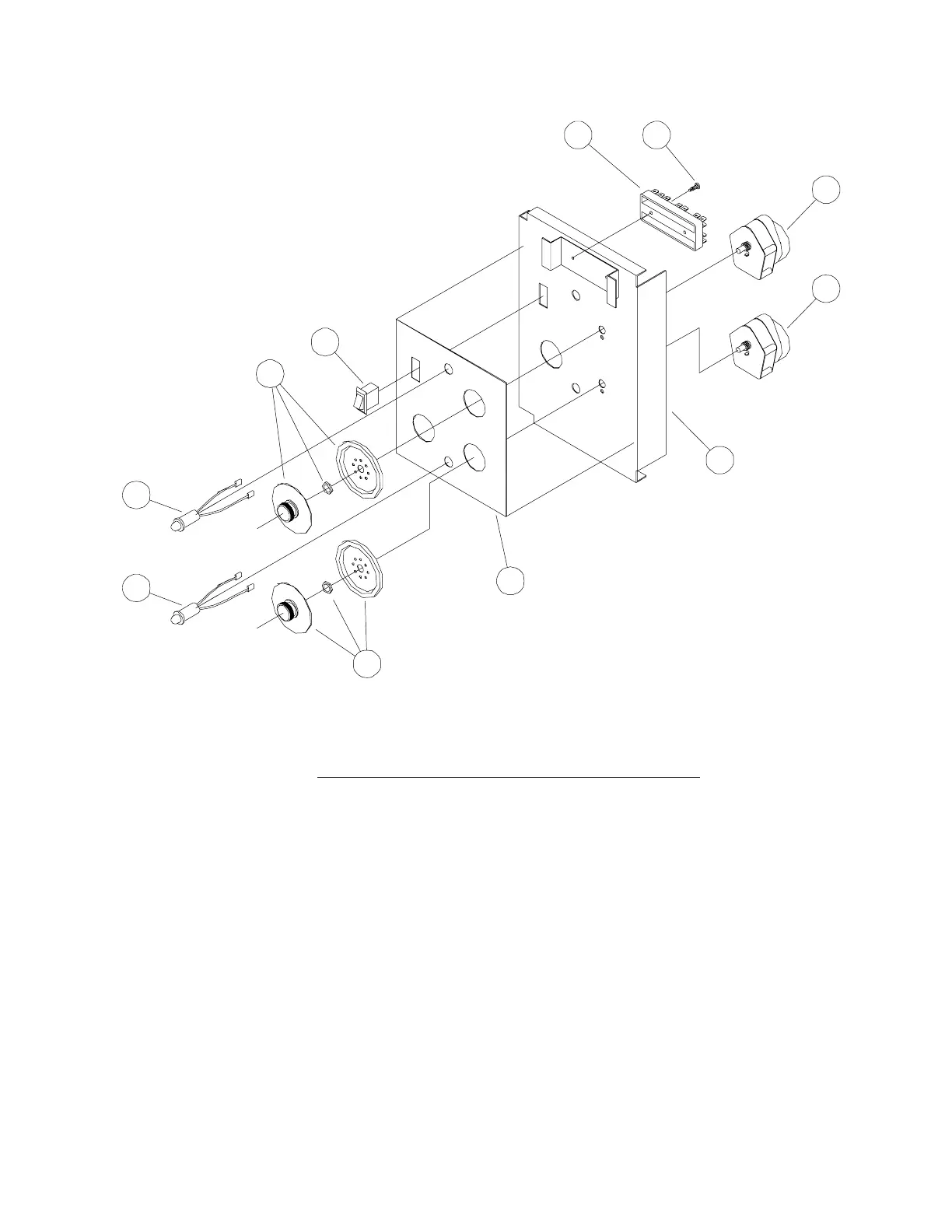

WIRE BOX ASSEMBLY -
DOUBLE TIMER
Ref. Part No. Description
No.
CSA-01608WH Wire box door assy complete
1 TUT316 Light LED 24V
2 EA-11614-0 Timer-manual 24V - 60 min. complete
3 EA-00619-0 Switch - start
4 CA-13170-0 Overlay- dual timer non-rev
5 CSA-01607WH Wire box door .
6 SB-00865-0 Screw-self drilling #6-20 X 12”
7 EA-00210-0 Terminal block
8 ESA-00967-0 Wire harness (not shown)
9 SB-00868-0 Bushing 7/8”
