IPSO DR30 - Basket & Spider Assembly

Page 36
Ref. Part No. Description
No.
CSA-01539-0 Basket & Spider Asm.WMC30 - S.S.
CSA-01637-0 Basket & Spider Asm.WMC30 - Galv.
1 CSA-01538-0 Stainless steel basket assy.
1 CSA-01636-0 Galvanized basket assy.
2 CSA-01434-0 Spider assy.
3 TU5439 Screw-cap 5/16-18 X 3/4"
4 TU2814 Lock washer 5/16"
5 SB-00843-0 Washer fender 3/8” X 1 1/2”
6 SB-00906-0 Nut 5/16” - 18 stover
7 TU2814 Lock washer 5/16”
9 TU7006 Shim
10 CA-13208 Basket rib support
11 DA-00445-0 Tie rod (4 req’d)
12 SB-00965-0 Screw-button cap 5/16 - 18

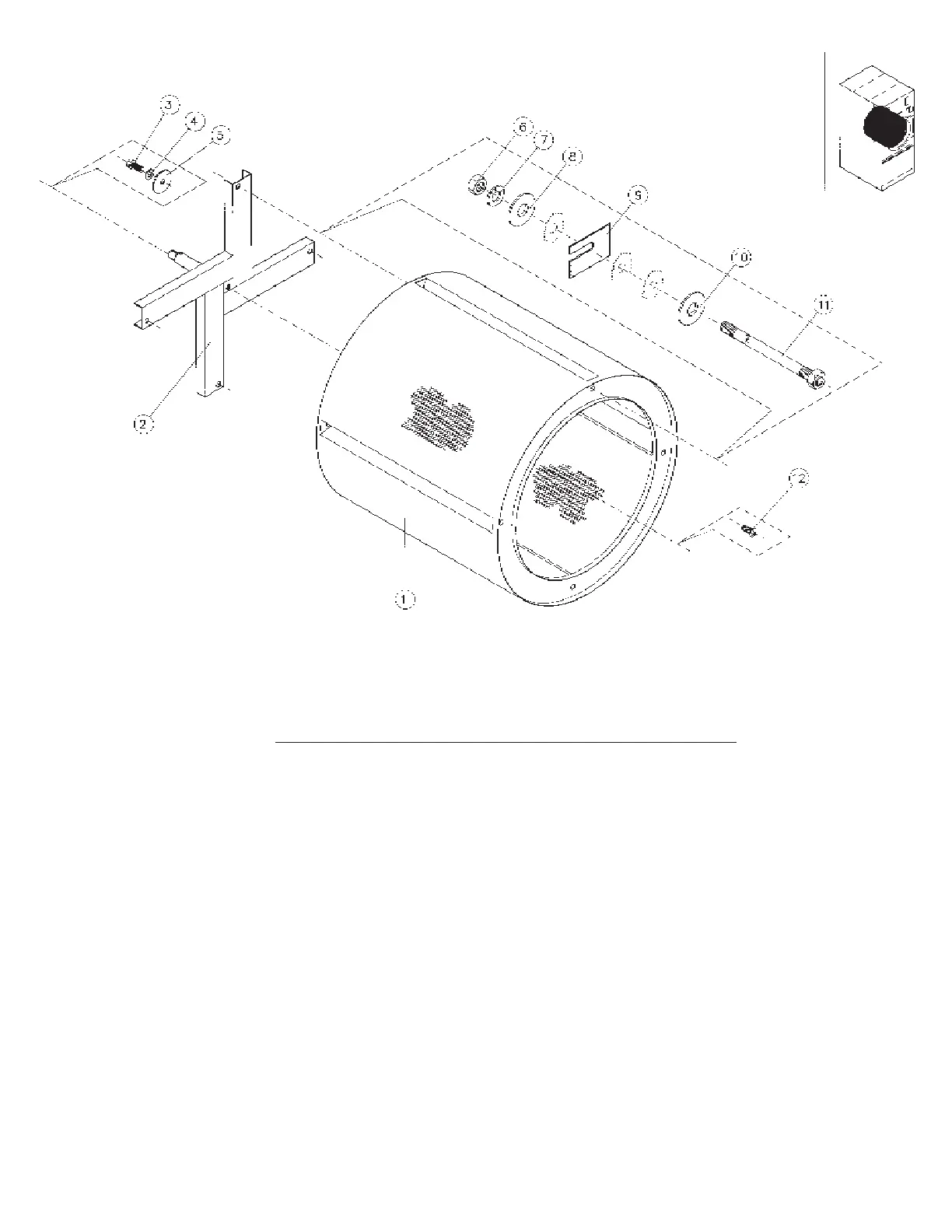

BASKET & SPIDER ASSEMBLY
