Irrimec ST4 - Machine Assembly Specifications

The Frame
a)a)
St4: 1810
St5: 1860
St6: 1990
St7: 2150
TRANSPORT

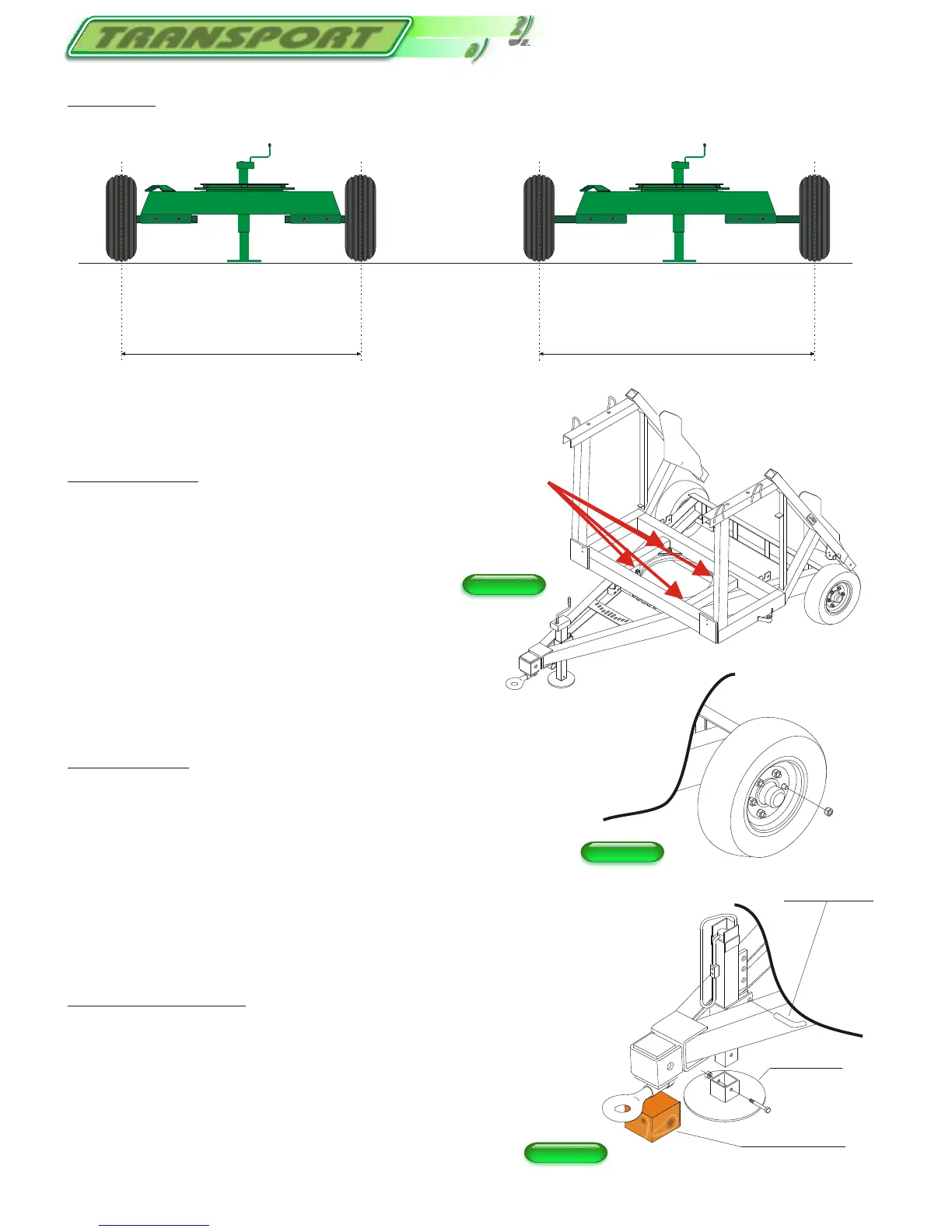

Assembly specifications
- Road-way
St4: 2000
St5: 2000
St6: 2200
St7: 2380
Standard road-way Maximum road-way
- Turret on frame:
Properly tighten the bearing bolts (fig. 12)
- Bolts of wheel:
Properly tighten the wheels bolts (fig. 13)
- Verify the pressure of the tires: - St4: 3.5 bar
- St5: 3.5 bar
- St6: 4 bar
- St7: 4 bar
Repeat this control periodically
- Installation of the jack:
Place the frame at the appropriate heights
Slide the jack in its bracket and
pin the jack in its bracket. Attach
the foot to the jack. (fig. 14)
Axis of fixing
Jack base
Piece of wood
Fig. 12Fig. 12
Fig. 13Fig. 13
Fig. 14Fig. 14
