ISA MILLENIUM ST - Page 37

ATTACHMENT
37
EN
428000467237 MILLENNIUM
USE AND MAINTENANCE MANUAL
2

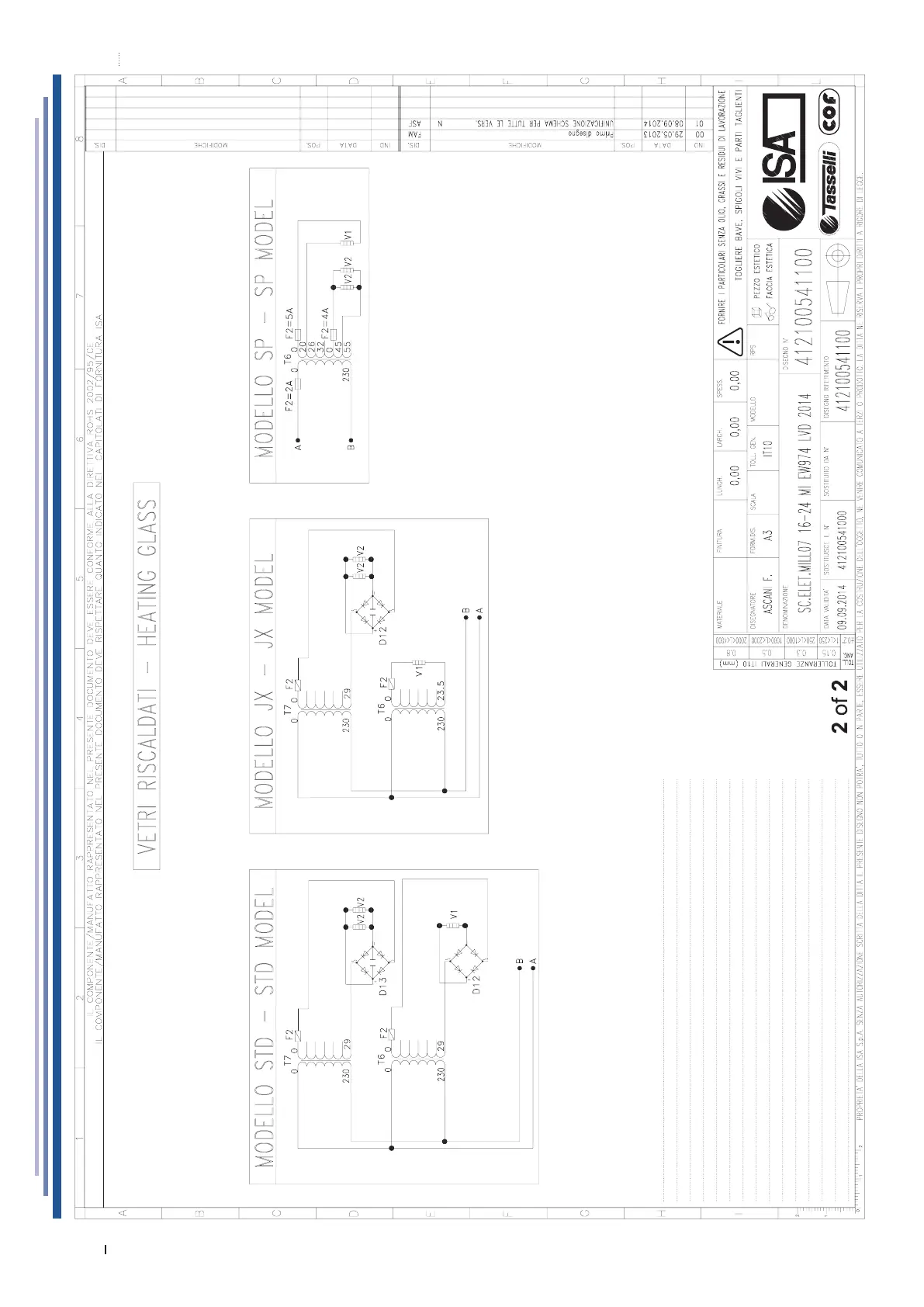

WIRING DIAGRAM - 412100541100 - 2 of 2
S1
TEMPERATURE PROBE
I1
SHOWCASE SWITCH
S2 DEFROST PROBE I2 LIGHT SWITCH CE ELECTRONIC CONTROLLER L3 TWO-LAMP ELECTRONIC REACTOR U1 COMPRESSOR L4 TWO-LAMP ELECTRONIC REACTOR U2 CONDENSER FAN L6 FLUORESCENT TUBE T5 U3 EVAPORATOR FAN U11 EMC FILTER R3 PERIMETER TRIM HEATER V1 FRONT HEATED GLASS R4 PLANE TRIM HEATER V2 SIDE HEATED GLASS F2 FUSE D2 RECTIFIER BRIDGE S8 PRESSURE SWITCH GD LED POWER SUPPLY T1 CONTROL UNIT TRANSFORMER HL LED LIGHT T6 TRANSFORMER B3 4-WAY SOLENOID VALVE T7 TRANSFORMER D12 RECTIFIER BRIDGE R9 RETARDER RELAY D13 RECTIFIER BRIDGE
