ISA MILLENIUM ST - Wiring Diagram - 412100624000

ATTACHMENT
50
EN
428000467237 MILLENNIUM
USE AND MAINTENANCE MANUAL
9

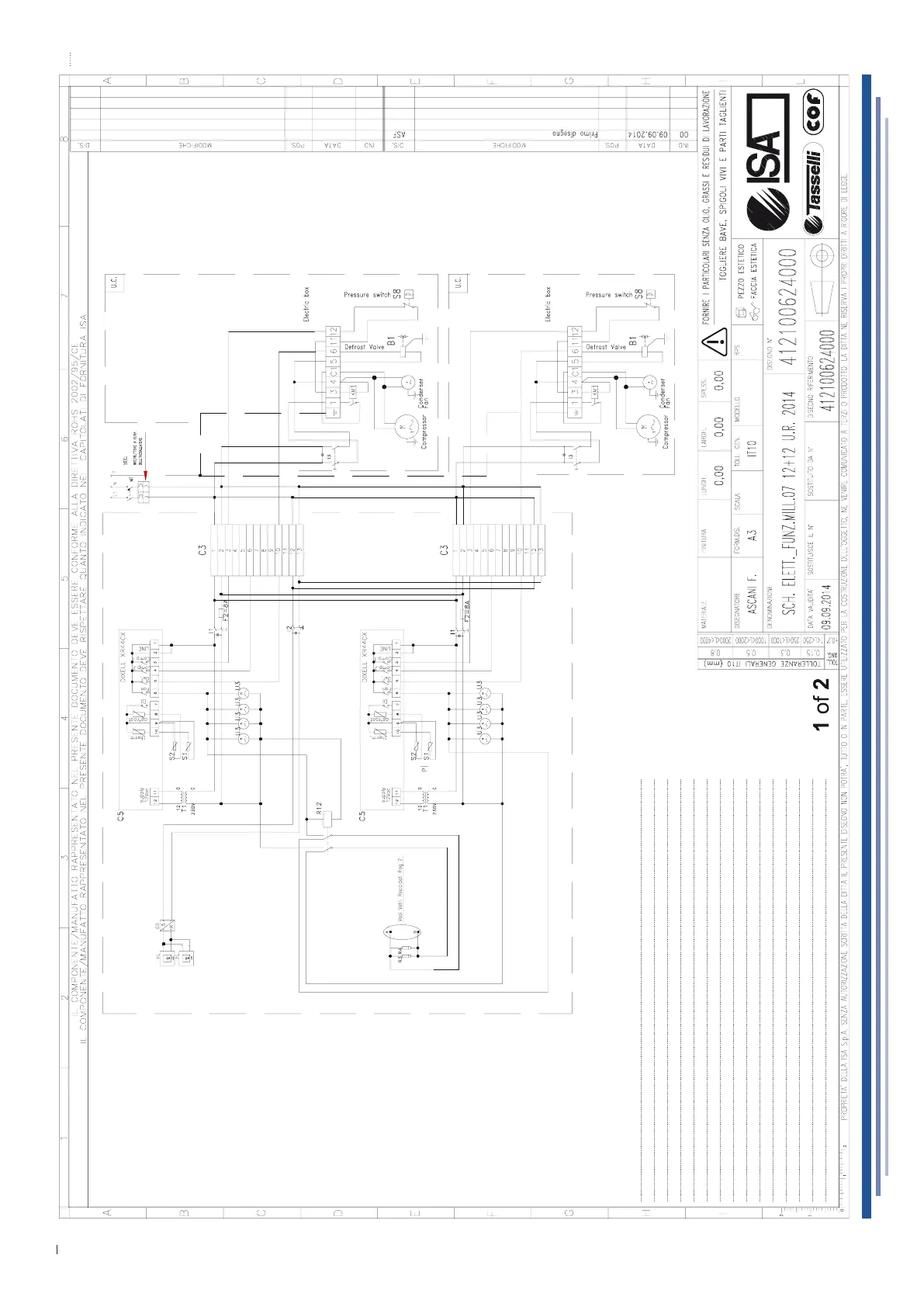

WIRING DIAGRAM - 412100624000 - 1 of 2
B1 DELIVERY VALVE KM1 COMPRESSOR RELAY C3 MULTIPOLAR TERMINAL BOARD S8 PRESSURE SWITCH C5 ELECTRONIC CONTROL BOARD U1 COMPRESSOR F2 FUSE U2 CONDENSER FAN I1
SHOWCASE SWITCH
U3 EVAPORATOR FAN
I2 LIGHT SWITCH V1 FRONT HEATED GLASS I3
ELECTRIC BOX SWITCH
V2 SIDE HEATED GLASS
T6 TRANSFORMER T1 CONTROL UNIT TRANSFORMER R3 PERIMETER TRIM HEATER T7 TRANSFORMER R4 PLANE TRIM HEATER GD LED POWER SUPPLY R5 FRONT TRIM HEATER HL LED LIGHT R12 RELAY HC4 D12 RECTIFIER BRIDGE S1 TEMPERATURE PROBE D13 RECTIFIER BRIDGE S2 DEFROST PROBE
