ATTACHMENT
49
EN
428000467237 MILLENNIUM
USE AND MAINTENANCE MANUAL
8

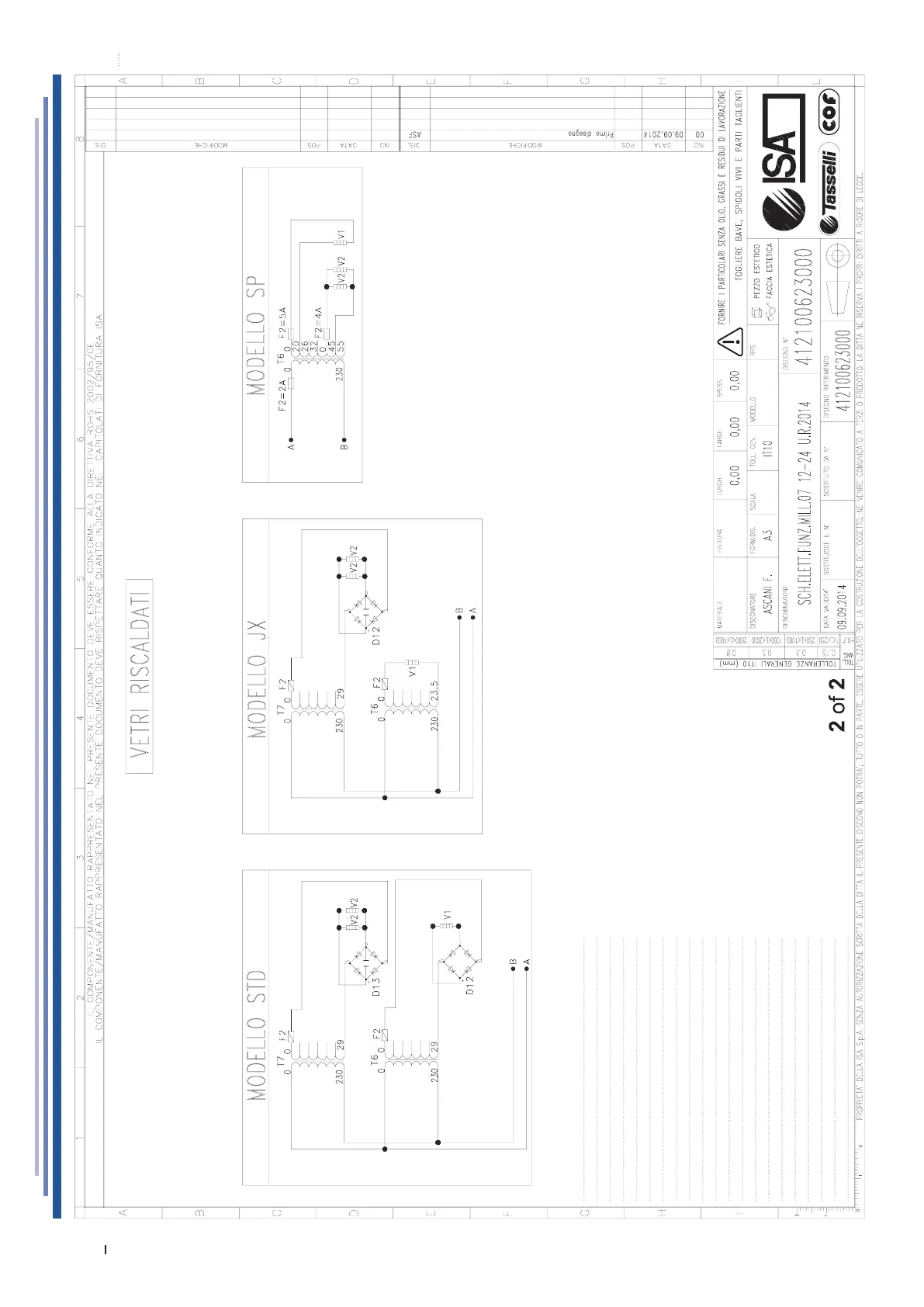

WIRING DIAGRAM - 412100623000 - 2 of 2
CONDENSER UNIT PANEL COMPONENTS
QS1 CIRCUIT BREAKER 32A 400V
QS2 BENCH CIRCUIT BREAKER 10A
QF1 MOTOR PROTECTION + ADDITIONAL CONTACT
KM1
CONTACTOR + ADDITIONAL CONTACT
KM2 RELAY
FU1 FUSE 2A
FU2 FUSE 1A
M1 BENCH LINE
M2 BENCH NEUTRAL
M3 COMPRESSOR CONTROL
M9 DEFROST CONTROL
M11 PRESSURE SWITCH ALARM DIGITAL INPUT
M12 PRESSURE SWITCH ALARM DIGITAL INPUT
M19 DELIVERY VALVE CONTROL
M27 COMMON NEUTRAL
M28 FAN CONTROL (DEFROST)
M29 FAN CONTROL (SPEED REGULATOR)
M30 COMPRESSOR COVER RESISTANCE NEUTRAL
M31 COMPRESSOR COVER RESISTANCE LINE
