ISA MILLENIUM ST - Wiring Diagram - 412100752300

ATTACHMENT
54
EN
428000467237 MILLENNIUM
USE AND MAINTENANCE MANUAL
11

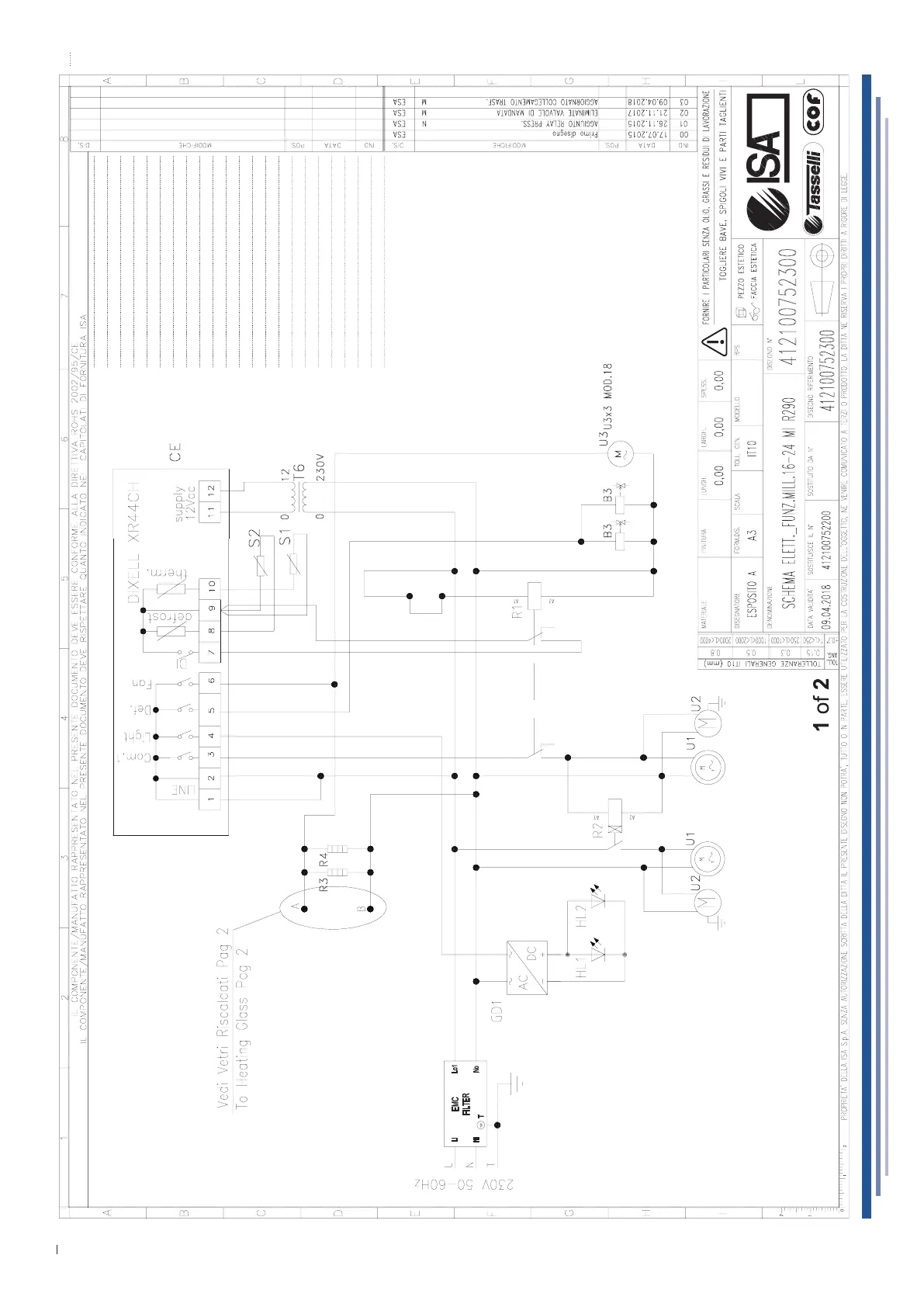

WIRING DIAGRAM - 412100752300 - 1 of 2
B3 4-WAY SOLENOID VALVE CE ELECTRONIC CONTROLLER C1 CONDENSER D12 RECTIFIER BRIDGE D13 RECTIFIER BRIDGE F1 FUSE F2 FUSE GD1 LED POWER SUPPLY HL1 LED LIGHT HL2 LED LIGHT R1 PRESSURE SWITCH RELAY R2 COMPRESSOR 2 DELAY RELAY R3 PERIMETER TRIM HEATER R4 PLANE TRIM HEATER S1
TEMPERATURE PROBE
S2 DEFROST PROBE T6 CONTROL UNIT TRANSFORMER T7 GLASS TRANSFORMER U1 COMPRESSOR U2 CONDENSER FAN V1 FRONT HEATED GLASS V2 SIDE HEATED GLASS
