ISA MILLENIUM ST - Wiring Diagram - 412100623000

ATTACHMENT
48
EN
428000467237 MILLENNIUM
USE AND MAINTENANCE MANUAL
8

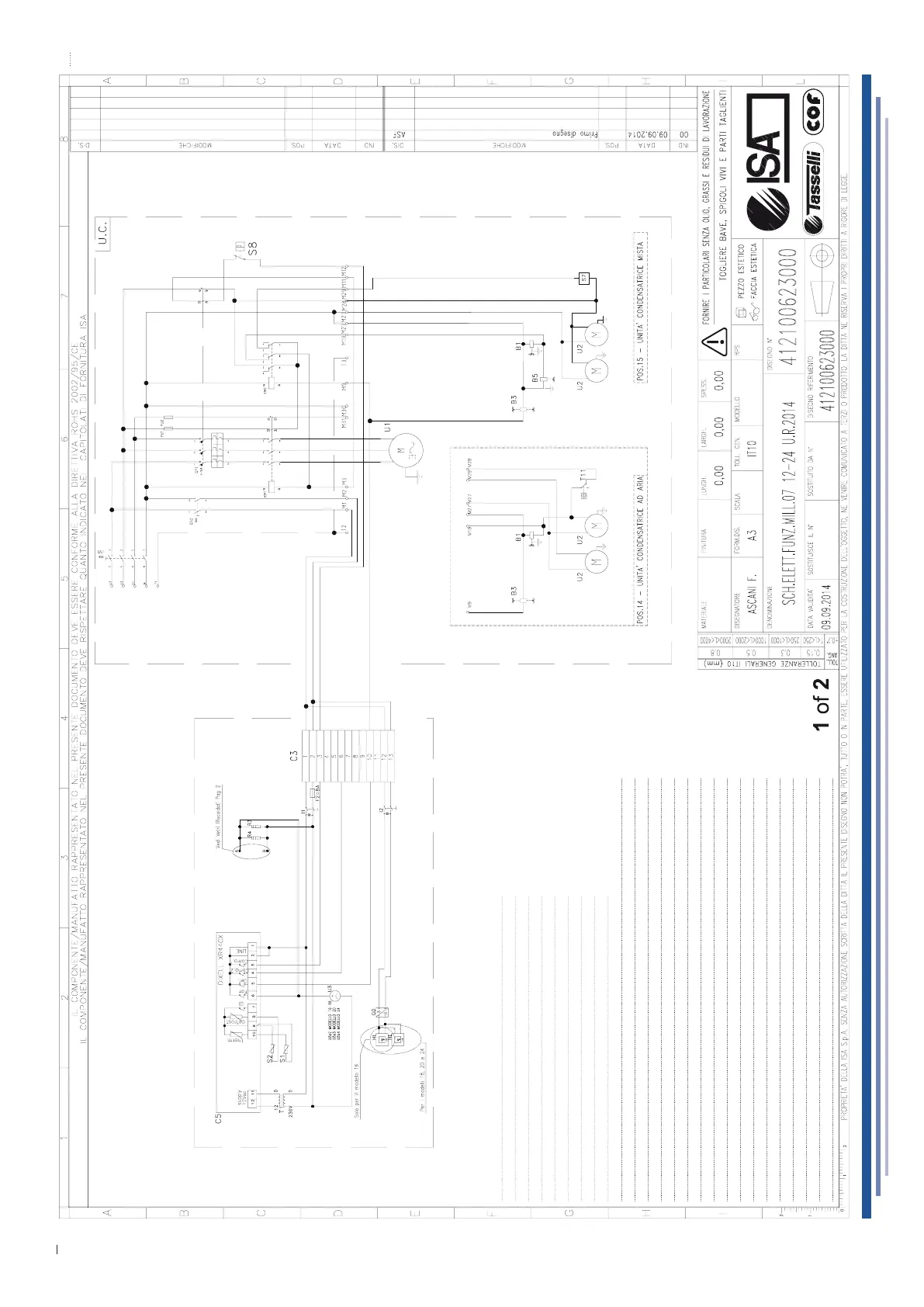

WIRING DIAGRAM - 412100623000 - 1 of 2
B1 DELIVERY VALVE S8 PRESSURE SWITCH B3
3-WAY SOLENOID VALVE
U1 COMPRESSOR
B5 WATER SOLENOID VALVE U2 CONDENSER FAN C3 MULTIPOLAR TERMINAL BOARD U3 EVAPORATOR FAN C5 ELECTRONIC CONTROL BOARD V1 FRONT HEATED GLASS F2 FUSE V2 SIDE HEATED GLASS I1
SHOWCASE SWITCH
T1 CONTROL UNIT TRANSFORMER
I2 LIGHT SWITCH T6 TRANSFORMER L3 ONE-LAMP ELECTRONIC REACTOR T7 TRANSFORMER L4 TWO-LAMP ELECTRONIC REACTOR T11 CONDENSER FAN THERMOSTAT L6 FLUORESCENT TUBE T5 GD LED POWER SUPPLY R3 PERIMETER TRIM HEATER HL LED LIGHT R4 PLANE TRIM HEATER D12 RECTIFIER BRIDGE S1 TEMPERATURE PROBE D13 RECTIFIER BRIDGE S2 DEFROST PROBE S7 SPEED VARIATOR
BENCH MULTIPOLAR TERMINAL BOARD
1 ELECTRONIC CONTROL UNIT POWER SUPPLY PHASE INPUT 2 ELECTRONIC CONTROL UNIT POWER SUPPLY NEUTRAL INPUT 3 COMPRESSOR CONTROL PHASE OUTPUT 6 SOLENOID VALVE CONTROL PHASE OUTPUT 10 DEFROST VALVE POWER SUPPLY PHASE OUTPUT 12 LIGHTS POWER SUPPLY PHASE INPUT 13 LIGHTS POWER SUPPLY NEUTRAL INPUT
