ATTACHMENT
43
EN
428000467237 MILLENNIUM
USE AND MAINTENANCE MANUAL
5

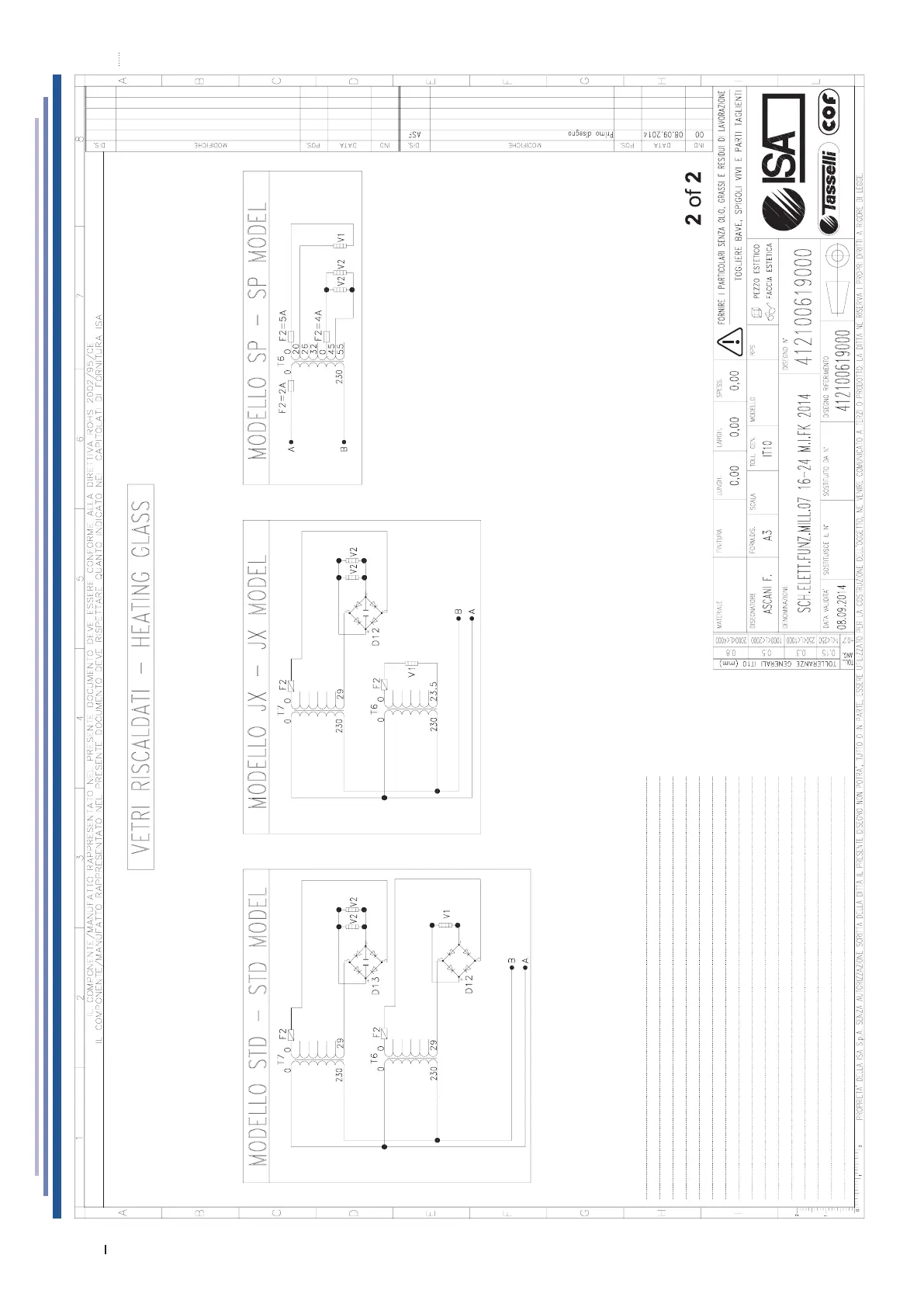

WIRING DIAGRAM - 412100619000 - 2 of 2
S1
TEMPERATURE PROBE
D13 RECTIFIER BRIDGE
S2 DEFROST PROBE I1
SHOWCASE SWITCH
CE ELECTRONIC CONTROLLER I2 LIGHT SWITCH
U1 COMPRESSOR L3 TWO-LAMP ELECTRONIC REACTOR
U2 CONDENSER FAN L4 TWO-LAMP ELECTRONIC REACTOR
U3 EVAPORATOR FAN L6 FLUORESCENT TUBE T5
R3 PERIMETER TRIM HEATER U11 EMC FILTER
R4 PLANE TRIM HEATER V1 FRONT HEATED GLASS
F2 FUSE V2 SIDE HEATED GLASS
S8 PRESSURE SWITCH D2 RECTIFIER BRIDGE
T1 CONTROL UNIT TRANSFORMER R1 RELAY
T6 TRANSFORMER R2 RELAY
T7 TRANSFORMER GD LED POWER SUPPLY
B3 4-WAY SOLENOID VALVE HL LED LIGHT
D12 RECTIFIER BRIDGE
