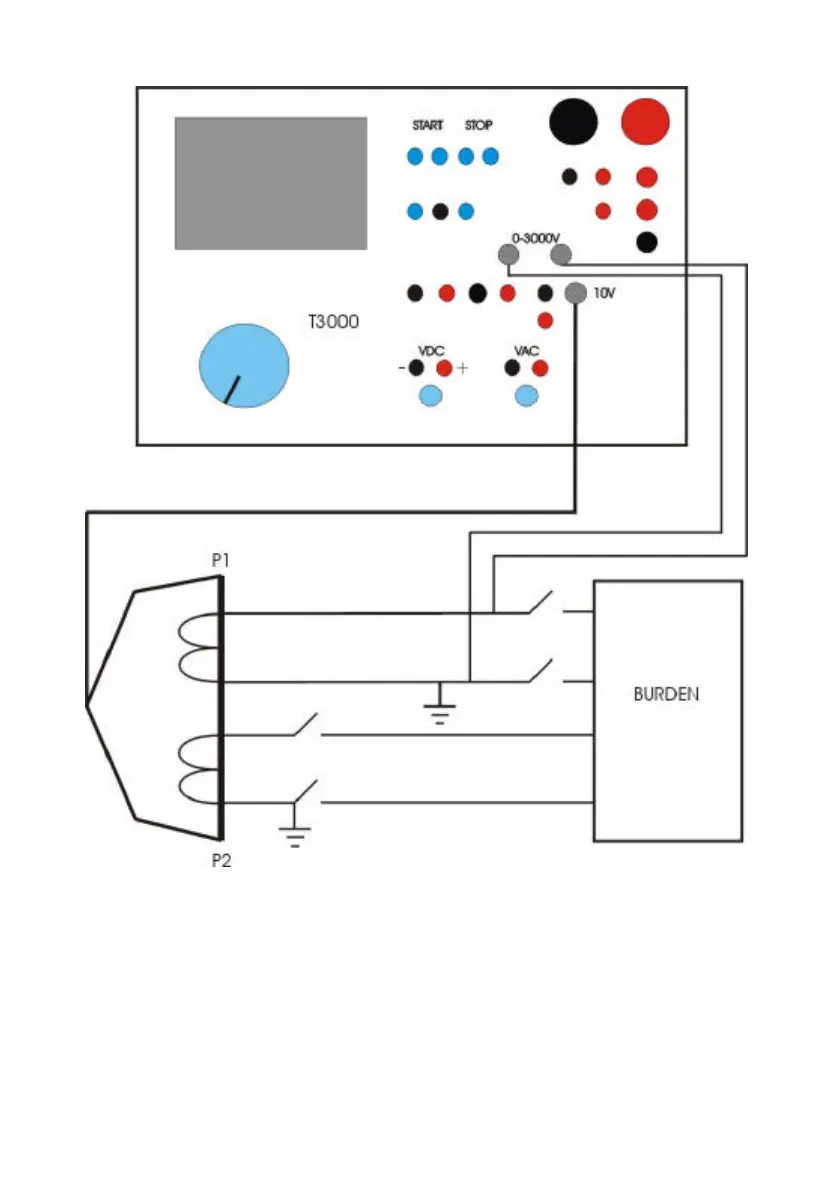

NOTE: the drawing shows the output connection to 3000 V, and
the input connection to 10 V.
For the connection, use the following cables:
A) Output connection, 3000 V:
- N. 2 High voltage connection cables, 4 m long, 5 kV, with earth
screen. Terminated on both sides with HV connectors.
- N. 2 Clamps for the HV connection.
RED
S1
S2
RED
