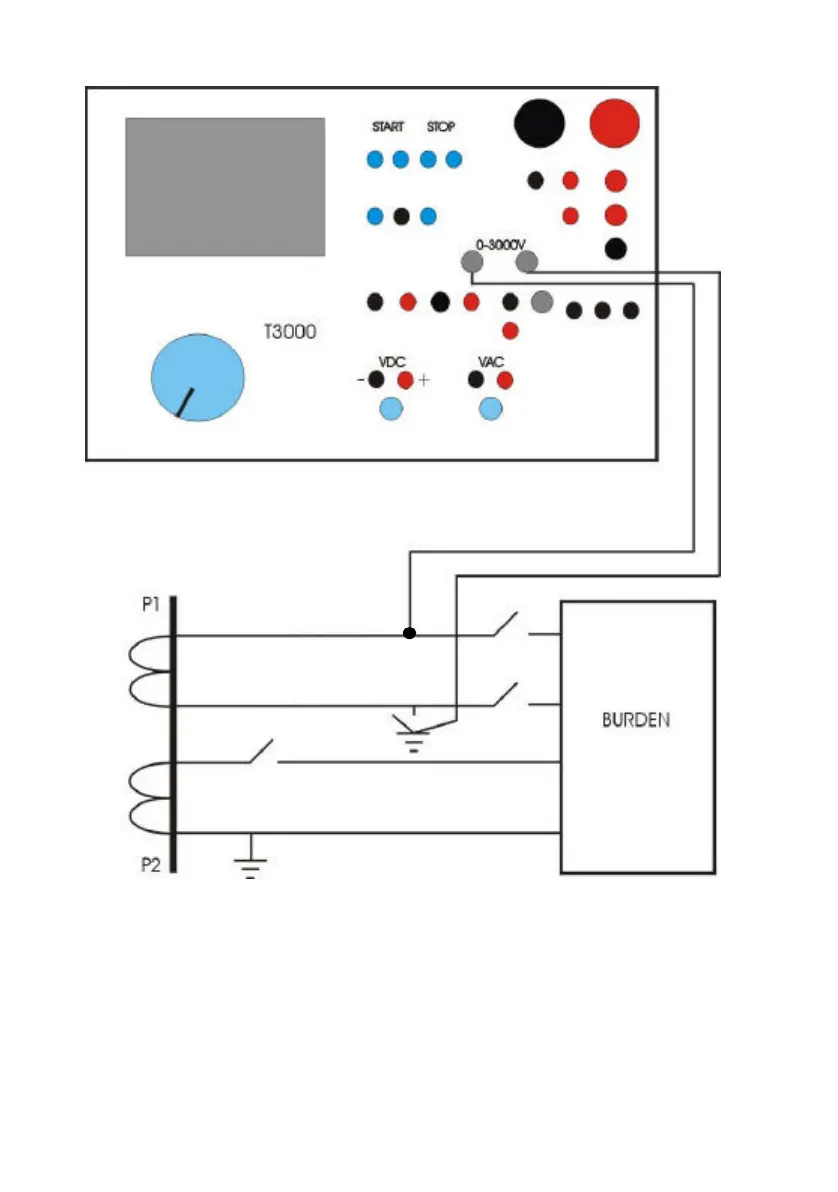

The CT secondary is disconnected, and the HV output is
connected to the secondary and to the ground.
For the connection, use the following cables:
- N. 2 High voltage connection cables, 4 m long, 5 kV, with earth
screen. Terminated on both sides with HV connectors.
- N. 2 Clamps for the HV connection.
