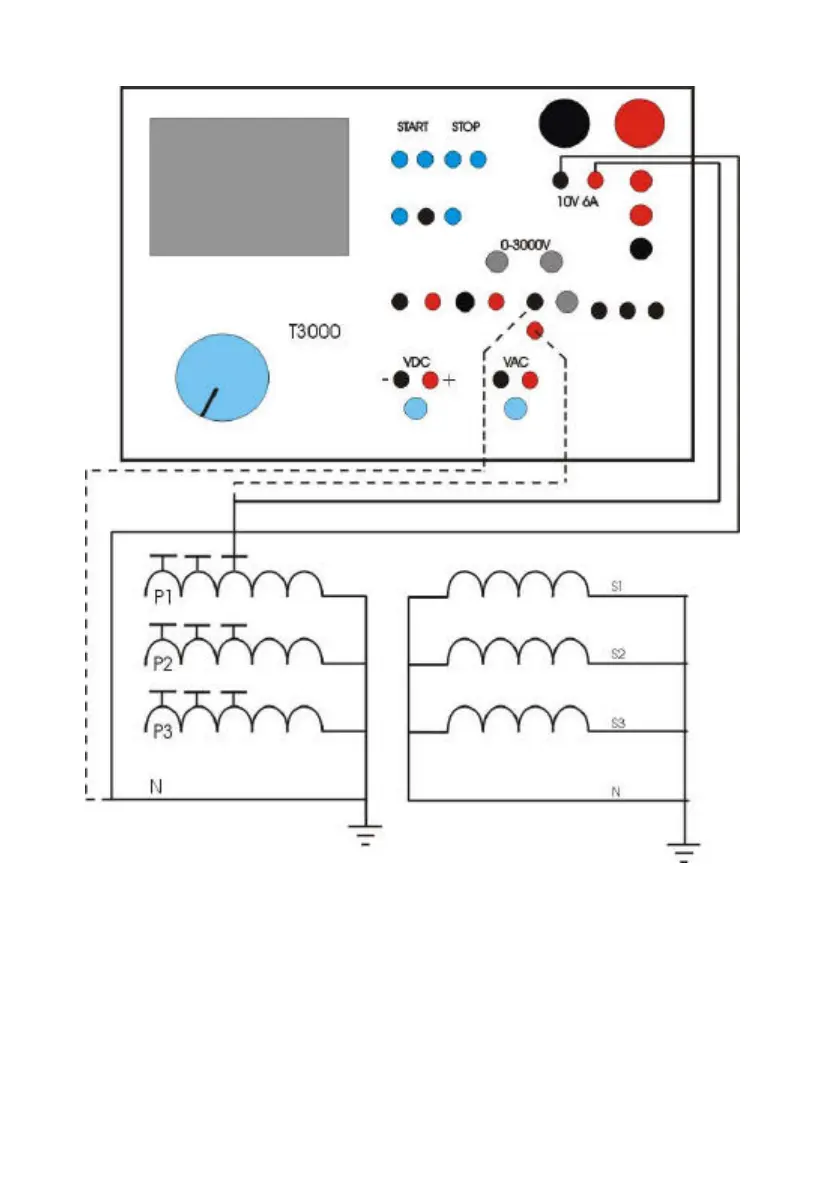

The PT secondary is disconnected, and the DC current output is
connected to the winding. PT secondary are short-circuited to
ground: this nulls the effect of the primary inductance.
For the connection, use the following cables:
A) Output connection:
- N. 2 Low current connection cables, 10 sq. mm, 4 m long.
Terminated on one side with the current clamp.
IF DESIRED:
B) Input connection:
