1.1. STARTER SWITCH
: Glow position: the engine is pre-heated.
: OFF position: the engine stops and all electric cir-
cuits are turned off.
: ON position: the key turns to this position after start-
ing the engine and remains there during operation.
: START position: the starter motor is switched on.
1.2. WORK LAMP SWITCH
This switch turns the work lamp on and off.
: ON: Turn the switch lever towards this mark, and the
work lamps turn on and vice versa.
OFF:Off
1.3. POSITION SWITCH (G type)
The position light in combination lamp (Option) lights up
while this switch is ON.
: ON
○: Off
1.4. PTO SWITCH
With this switch the PTO can be either engaged to spin or
disengaged to stop.
: ON:Turn the switch to the position indicated by this
mark, and the PTO shaft starts spinning. To engage
PTO, first turn switch clockwise and then pull up it.
: OFF:Turn the switch to the position indicated by this
mark, and the PTO shaft stops spinning. Turn the
switch counter clockwise to disengage.
IMPORTANT: This front mower is equipped with UP-STOP
device for safety. PTO automatically stops
when the mower deck is raised while the
PTO switch is in the ON (
) position.
When the PTO stops by UP-STOP device,
lower the mower deck and reset the PTO
switch to the ON ( ) position to restart.
1.5. COMBINATION SWITCH (G type)
This switch incorporates the head lamp switch, turn signal
switch and horn button.
Head Lamp Switch
OFF: Off
: Low beam
: High beam

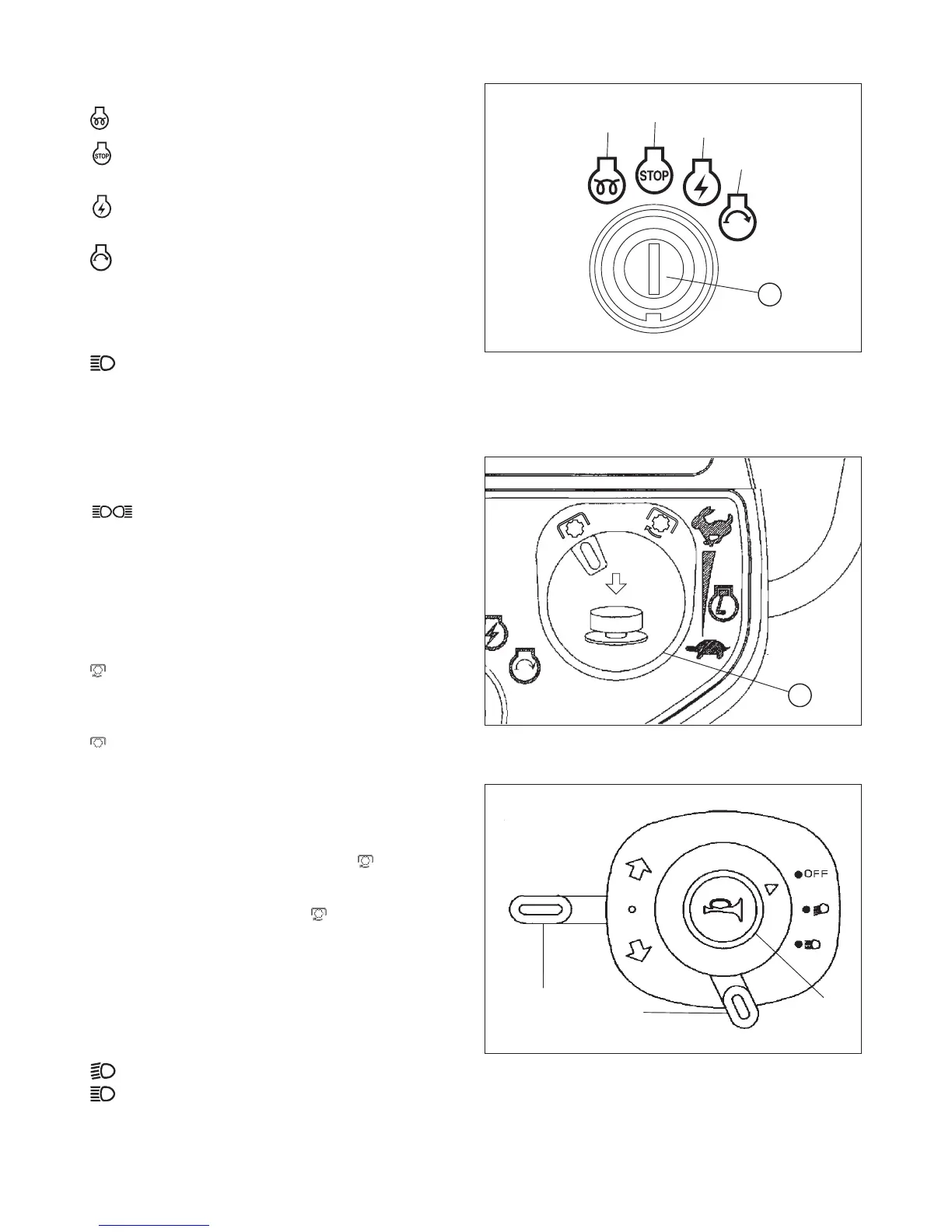

(1) Starter switch A: Glow position
B: OFF position
C: ON position
D: START position
(4) PTO switch
(5) Combination switch
A: Head lamp switch B: Turn signal switch
C: Horn switch
A
B
C
D
1
FIG. 28
FIG. 30
B
A
C
FIG. 29
4
