5. REAR AXLE OIL LEVEL
A level plug,1, is provided on the top side wall of the bevel
gear case respectively of the right and left. Remove the
plug with a spanner or wrench and check to see if the oil
overflows through the level plug hole. If a small amount of
oil flows from the hole, the oil level is normal.
If no oil overflows through the level plug hole, it shows the
oil level is lower than specified. So replenish with the
same kind of oil as that in the case through the oil filler,2,
located on the top wall of the rear axle on the left side of
the front mower until the oil starts overflowing through the
level hole. Use gear oil of SAE80.
IMPORTANT: Before re-installing the oil level plug, wrap
the threads of the plug with sealing tape,
or oil may leak out.

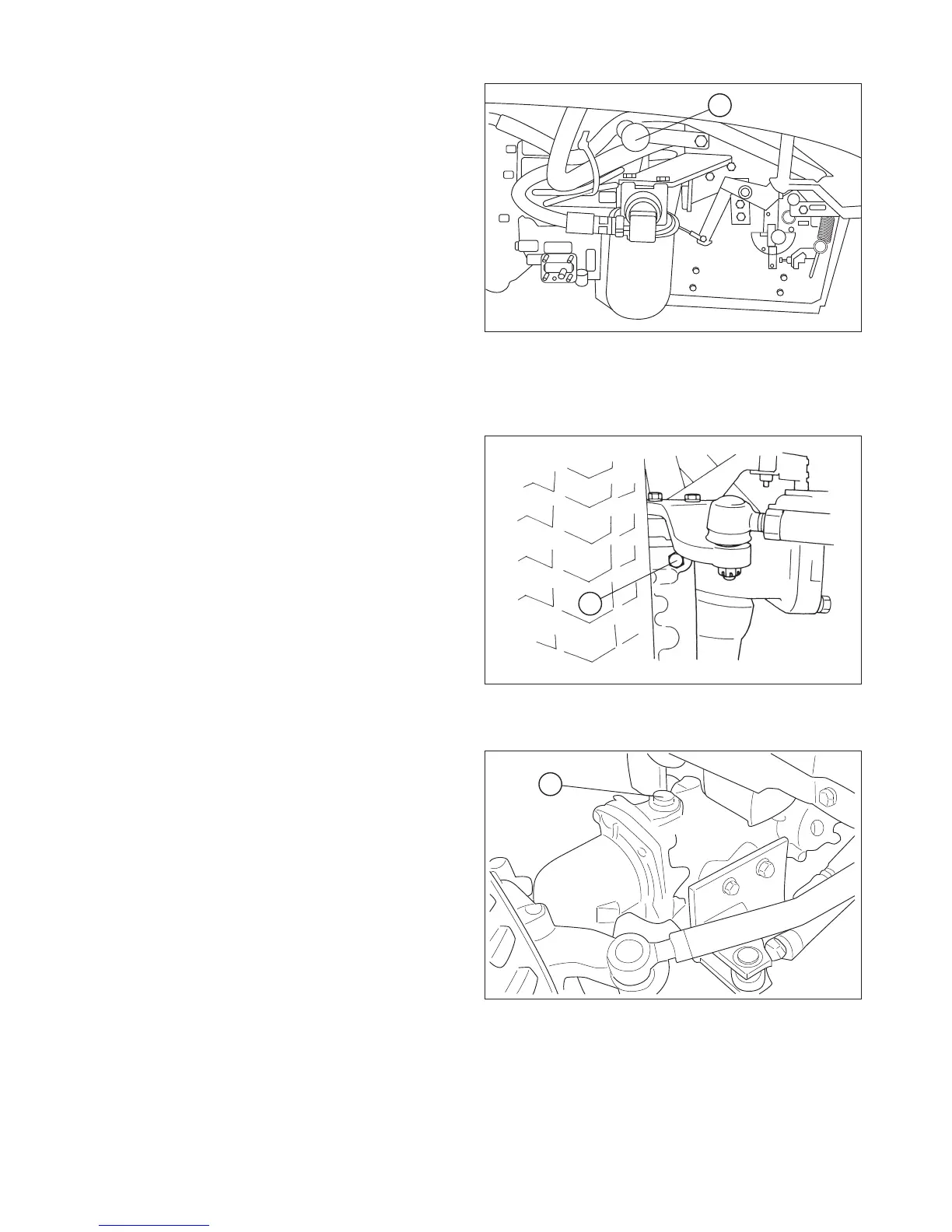

(2) Reduction gear case oil filler
(1) Rear axle oil level plug
(2) Rear axle oil filler
