CHAPTER 5. CONTROLS AND METERS
2. STEERING POST
2.1. THROTTLE LEVER
With this lever, the engine speed is controlled.
: LOW: Shift (Pull) the lever towards the “turtle” mark,
the engine decelerates.
: HIGH: Shift (Push) the lever towards the “rabbit”
mark, the engine accelerates.
This front mower is equipped with Auto throttle system, it
raises up engine speed by depressing HST forward/
reverse travel pedal.
IMPORTANT: Don’t use Auto throttle for mowing opera-
tion. Set rated engine speed by hand
throttle lever.
2.2. AUTO / 4WD CHANGEOVER LEVER (4WD LEVER)
With this lever, 2WD/4WD automatic change-over and
permanent 4WD is selectable.
: 4WD PERM: Shift (push) the lever forward to
engage permanent 4WD mode.
4WD AUT: Shift (pull) the lever rearward to engage
AUTO 4WD mode.
In AUTO 4WD mode, 2WD and 4WD is selected automati-
cally during operation on a level ground, so the lever oper-
ation is not required.
When operating on a slope, shift the changeover lever to
the 4WD position without fail.
IMPORTANT: Be sure to shift the 4WD lever to the
“AUTO” position when operating on level
ground, as level ground operation with the
4WD selected leads to a larger turning
radius and may cause turf damage.
IMPORTANT: When shifting the 4WD lever, slow down
the travelling speed below 1 km/h and
make the machine go straight.
WARNING: When operating the front mower
on a slope, be sure the 4WD lever is locked in
the 4WD position from the reasons men-
tioned below:
In the AUTO position the mechanism shifts to 2WD auto-
matically when the peripheral speed of the front wheels
exceeds that of the rear wheels, which means loss of rear
wheel driving power.

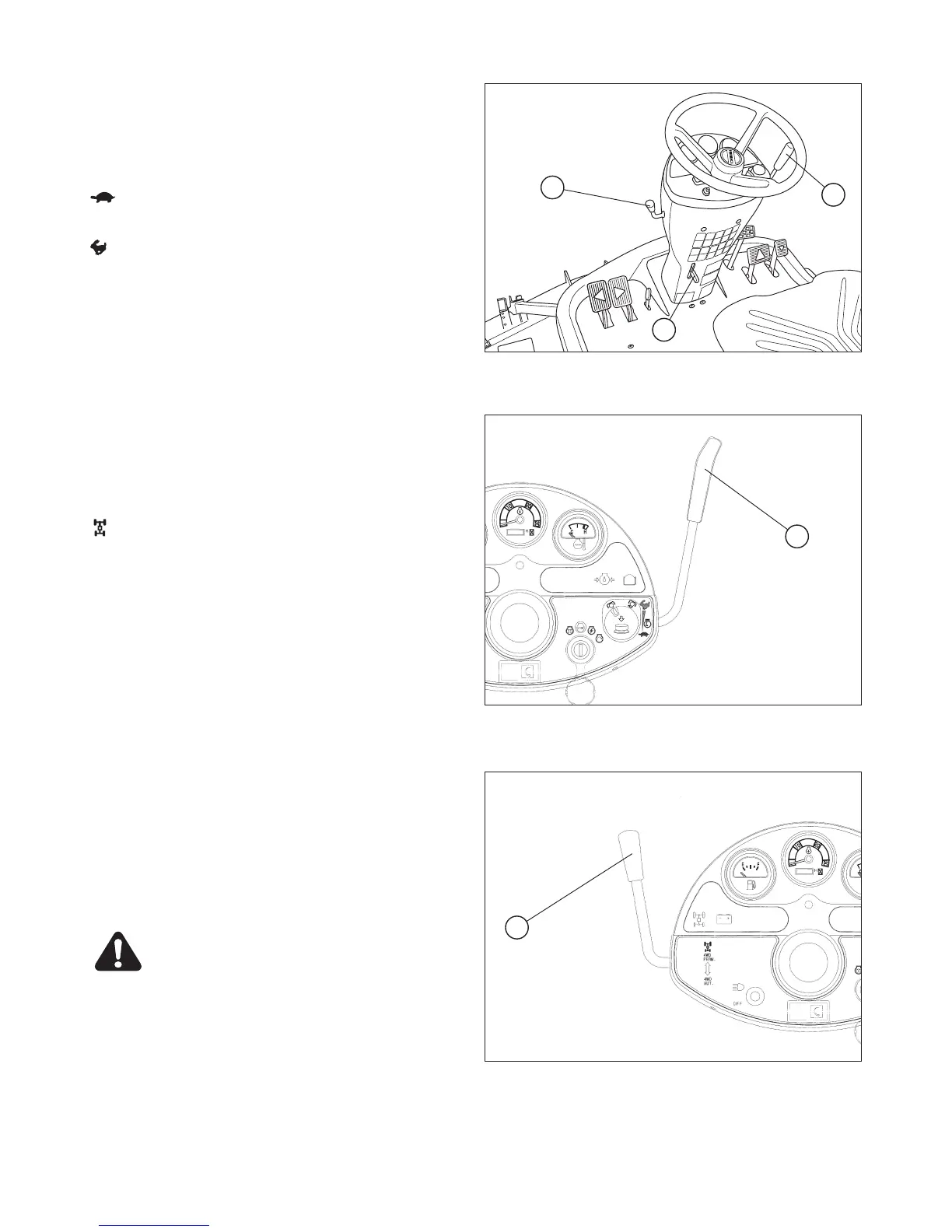

(1) Throttle lever (2) 4WD lever (3) Tilt lock lever
(1) Throttle lever
(2) 4WD lever
