38
SF310,370
3.7. PARKING BRAKE LEVER (Except G type)
While depressing the master brake pedal fully, move the
lever rearward and the parking brake is applied. To
release the parking brake, depress the master brake
pedal again.
IMPORTANT: Never start travelling with the parking
brake applied, or the brake performance
will deteriorate soon or, even worse, the
brake system could break down.
CAUTION: When leaving the front mower, be
sure to apply the parking brake.
4. FENDER (WING) PANEL
4.1. TRANSMISSION RANGE SHIFT LEVER
This lever shifts the transmission range into HIGH and
LOW speed ranges.
: LOW: Shift the lever forward, and the transmission
is shifted to the low speed range.
: HIGH: Shift the lever rearward, and the transmission
is shifted to the high speed range.
N
: NEUTRAL: The transmission is at the neutral posi-
tion.
IMPORTANT: Before shifting the range shift lever, be sure
to stop the front mower from travelling.
4.2. LIFT LEVER
With this lever, the lift link (mower deck) is raised or low-
ered.
: DOWN: Shift the lever forward to this mark, the lift is
lowered.
: UP: Shift the lever rearward to this mark, the lift is
raised.
CAUTION: When servicing or leaving the
front mower, be sure to lower the mower deck
to the ground.
IMPORTANT: Do not hold the lift lever too long in the
UP position( ), or it may damage the
hydraulic system.
LIFT LOCK: The lift cylinder is equipped with a lift locking
device.
WARNING: Be sure to raise the lift to its upper-
most position and engage the lift lock when
servicing the mower deck.
IMPORTANT: Use the lift lock when servicing only with
the mower deck raised. Do not use when
travelling or transporting by truck, or it
may damage itself and hydraulic system.

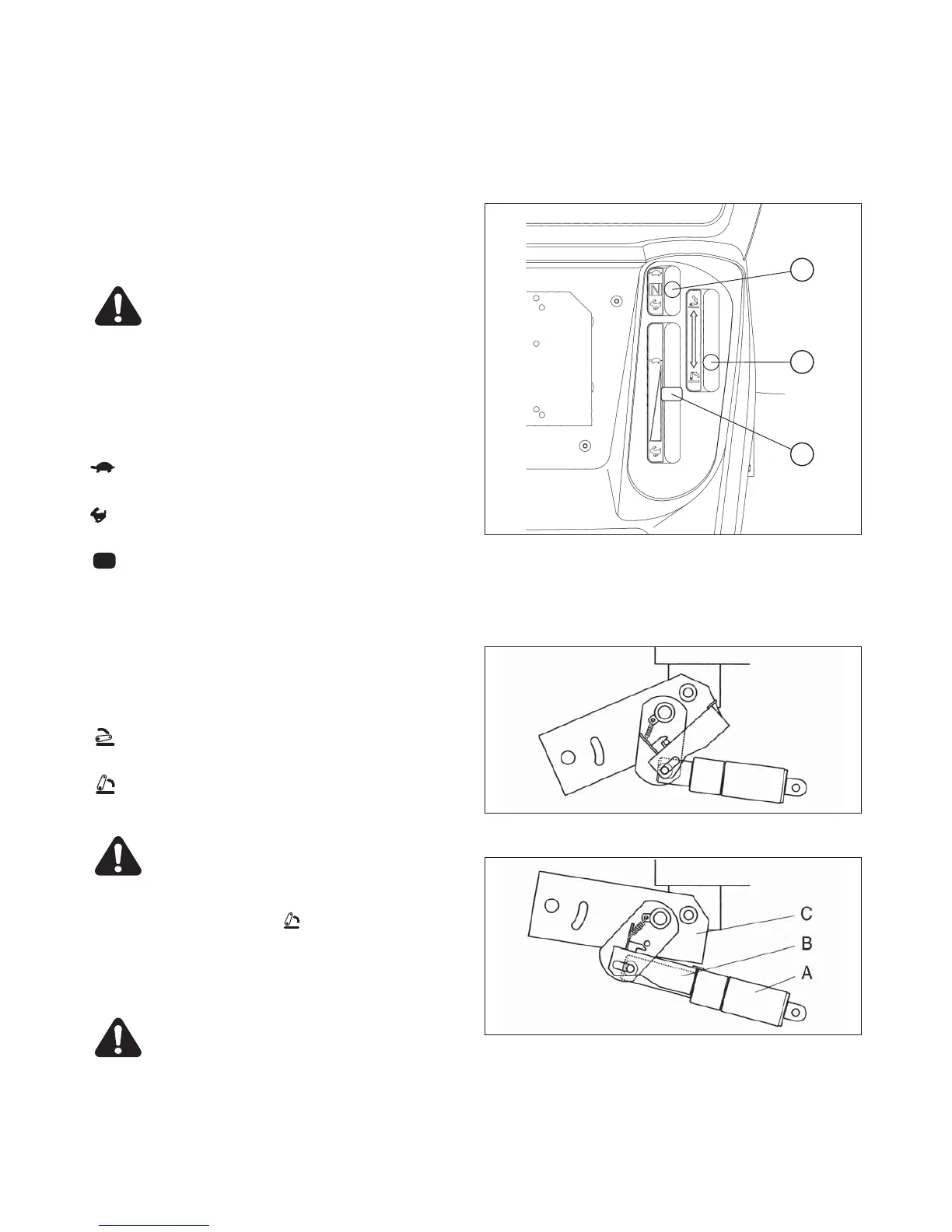

(1) Transmission range shift lever
(2) Lift lever
(3) Cruise control lever
Released
Locked
A: Hydraulic cylinder
B: Lift lock
C: Lift link
1
2
3
FIG. 41
FIG. 43
FIG. 42
