OPERATION & SERVICE MANUAL FOR MOWER DECK
ⅠⅠ
. SSM48 / SRM48
5-1. Before installation
- Place the tractor on level, hard ground.
-Stop the engine and draw the engine key before
mounting or dismounting the drive shaft.
-Shift the transmission range shift lever to the
neutral position.
-Make sure that the parking brakes are applied
and the PTO lever is in the off position.
5-2. Installation of the bracket and cylinder
on the tractor

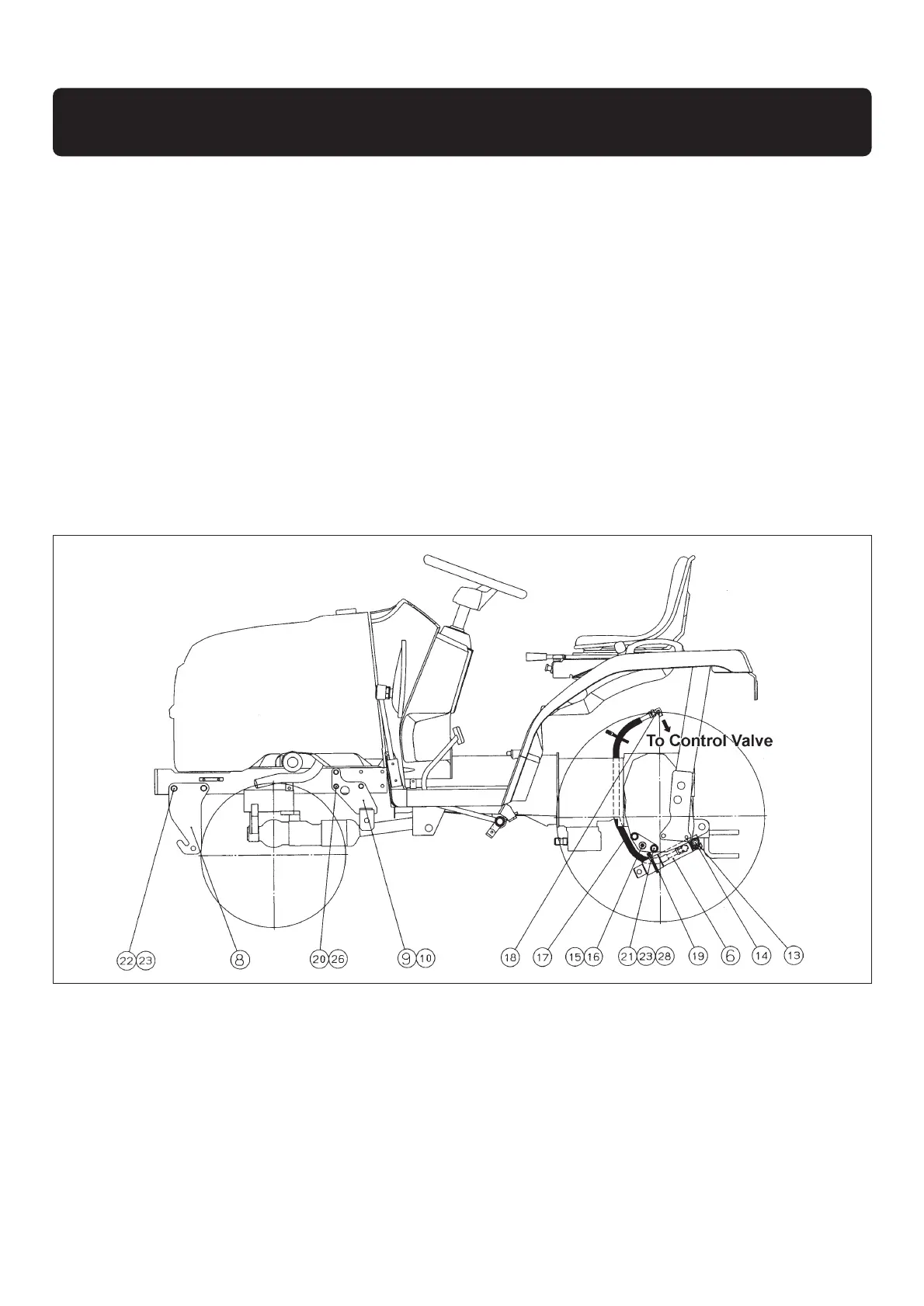

Fig.5-1
a. Install the FRONT BRACKET (8) to both left
and right side of the chassis.
b. Install the MID BRACKET (9&10) (LH & RH)
to both left and right side of the chassis.
c. Install the CYLINDER (6) and connect the
DELIVERY HOSE to the control valve.
CHAPTER 5. INSTALLATION ON THE TM TRACTOR
