CHAPTER 5. INSTALLATION ON THE TM TRACTOR
5-12. Link adjustment

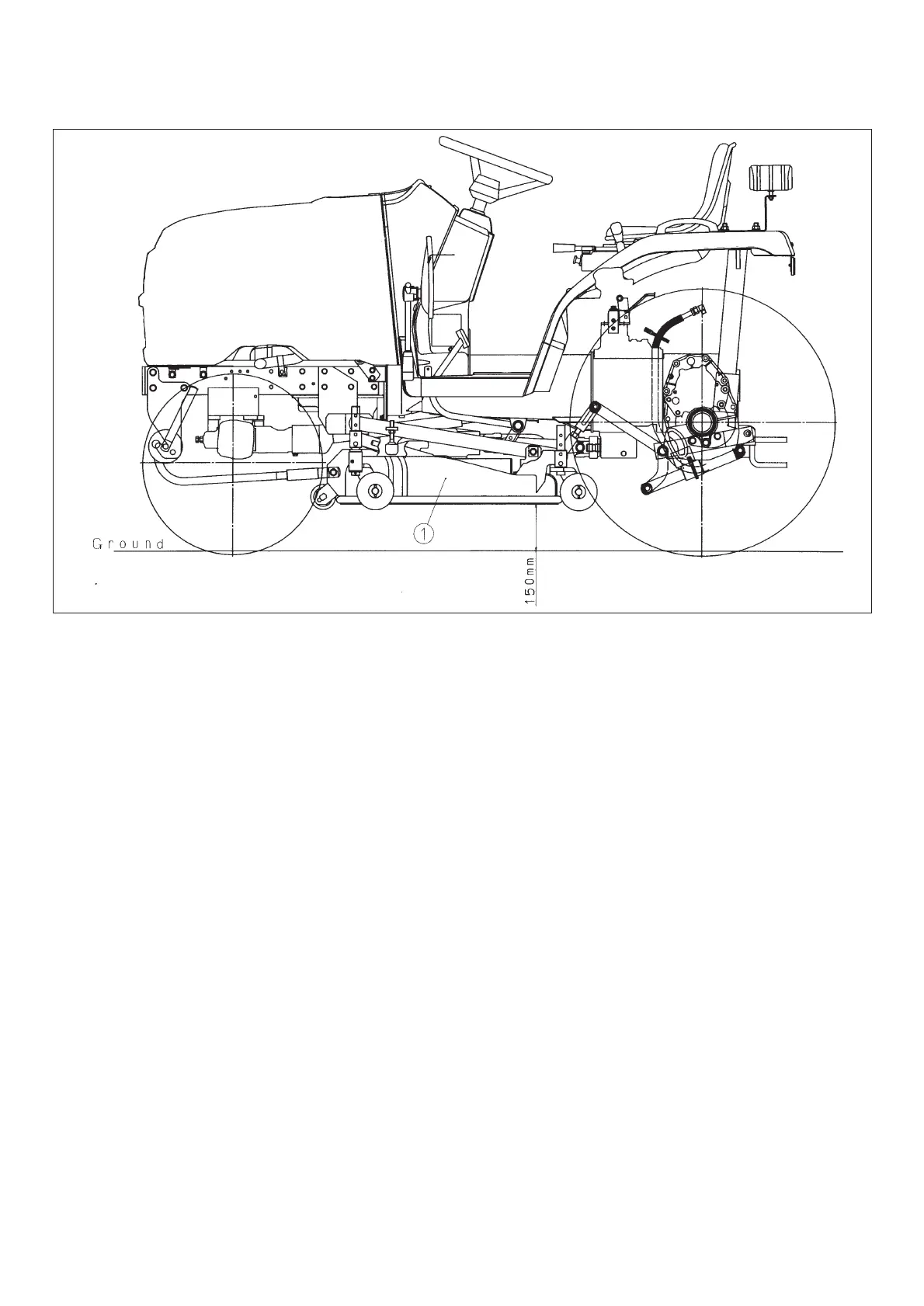

Fig.5-10
a. Start the engine and lift the link up to the highest
position by the hydraulic control lever/switch,
and stop the engine.
b. Under this condition, adjust the length of the
adjuster of the REAR LINK (5) so that the
ground clearance of the bottom surface of the
mower deck (1) is 150mm.
