CHAPTER 5. INSTALLATION ON THE TM TRACTOR
ⅡⅡ
.SSM54,60 / SMM54
5-7. Before installation
- Place the tractor on level, hard ground.
-Stop the engine and draw the engine key before
mounting or dismounting the drive shaft.
-Shift the transmission range shift lever to the
neutral position.
-Make sure that the parking brakes are applied
and the PTO lever is in the off position.

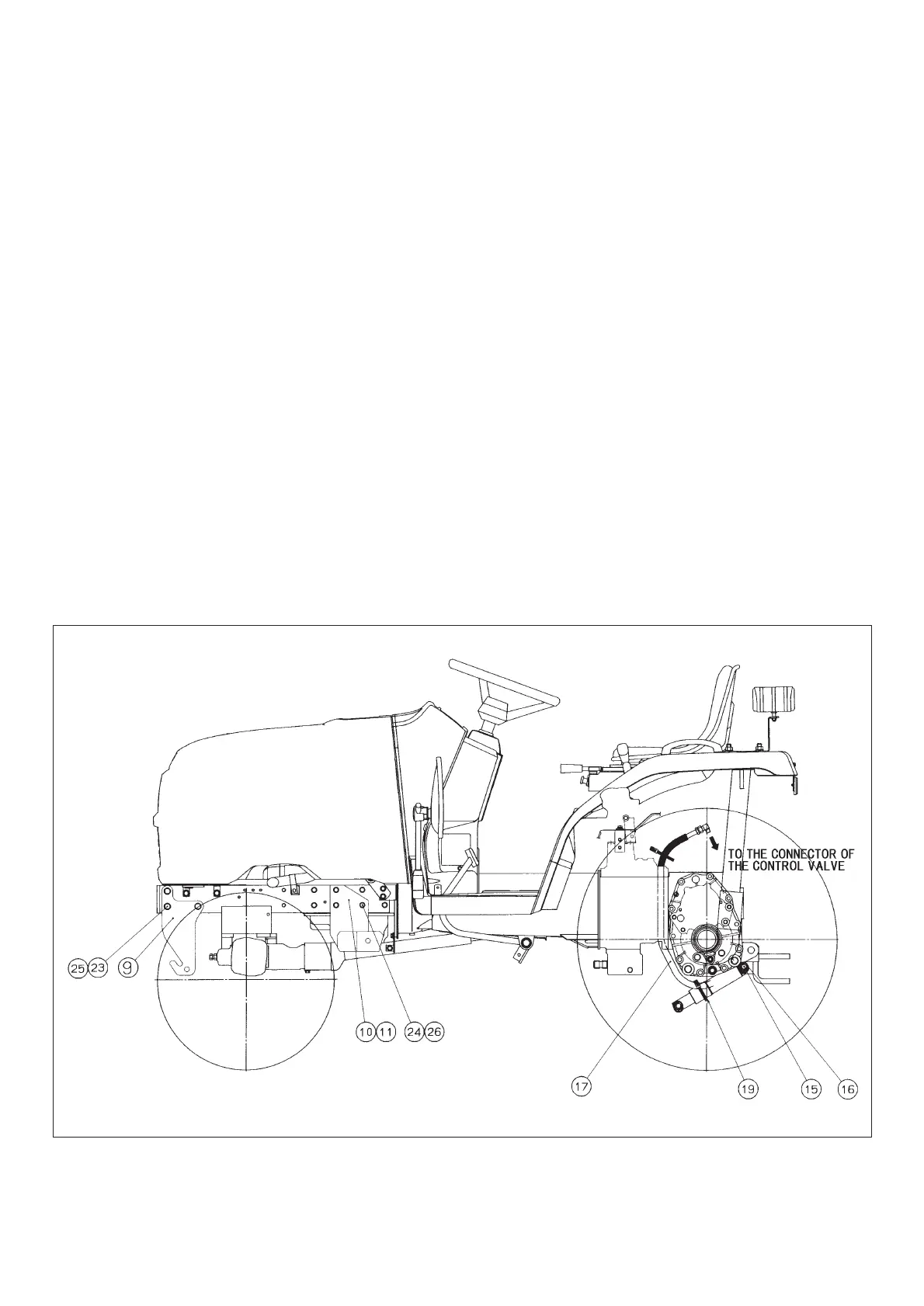

5-8. Installation of the bracket and cylinder
on the tractor
a. Install the FRONT BRACKET (9) to both left
and right side of the chassis.
b. Install the MID BRACKET (10&11) (LH & RH)
to both left and right side of the chassis.
c. Install the CYLINDER (6) and connect the
DELIVERY HOSE (17) to the control valve.
Fig.5-6
