OPERATION & SERVICE MANUAL FOR MOWER DECK
6-5. Link adjustment

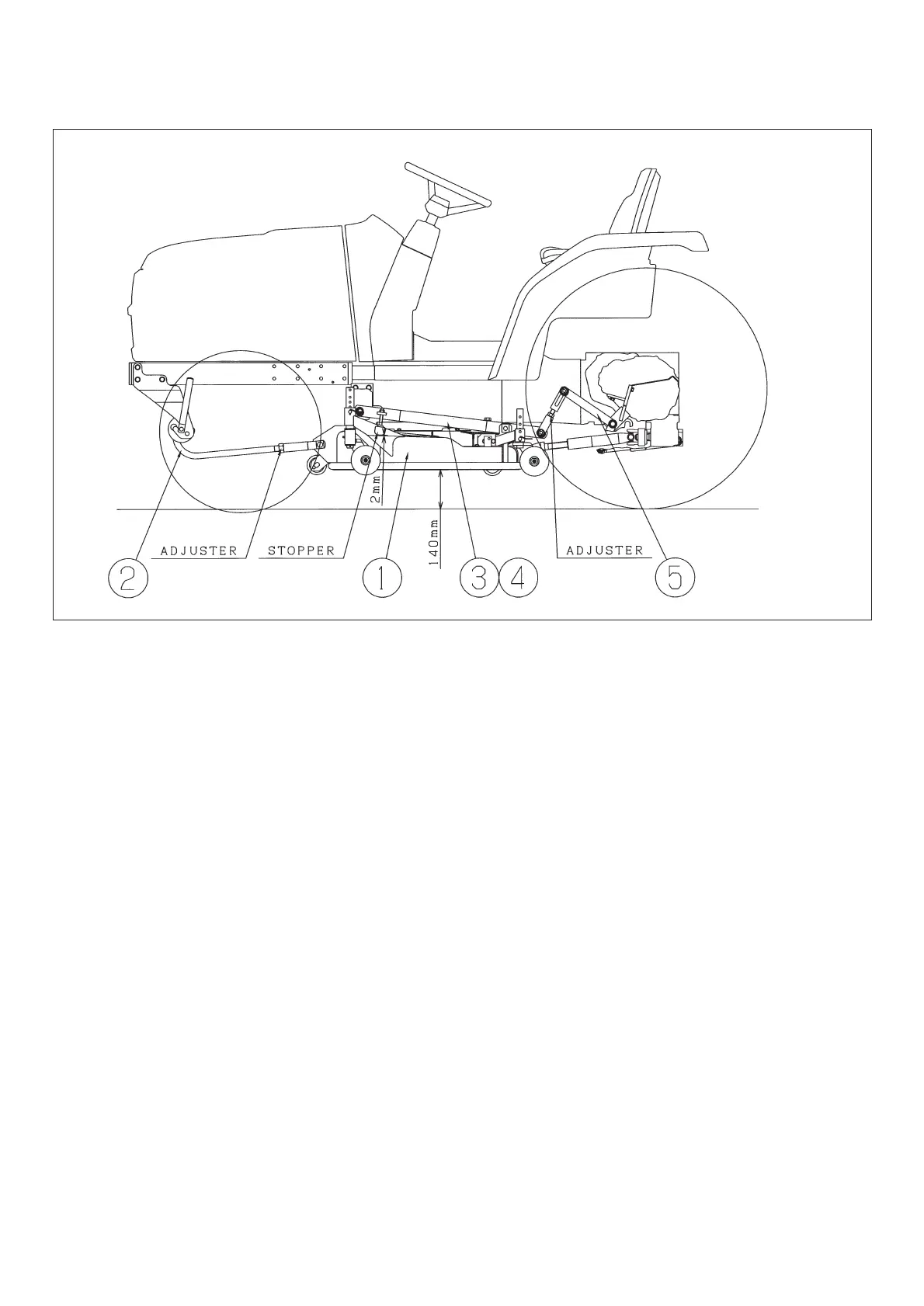

Fig.6-5
a. Start the engine and lift the link up to the highest
position by the hydraulic control lever. Stop the
engine and turn the rear gauge wheels frontward.
b. Under this condition, adjust the length of
LINK/REAR (5) so that the clearance between
ground and bottom of the deck is 140mm.
c. If the front side of MOWER DECK (1) is low,
adjust the adjuster of ARM/FRONT (2).
d. When the clearance between ground and bottom
of the deck is 140mm, set the stopper, which are
on ARM/MID/LH (3) and ARM/MID/RH (4), so
that the clearance between the stopper and the
top surface of MOWER DECK (1) is 2mm.
