Iseki SRM48 - For TH4330, 4290, 4260 Tractors

2) For TH4330, 4290, 4260 tractors
SMM54-TM3240E4 / HE4
Fig.4-5
26

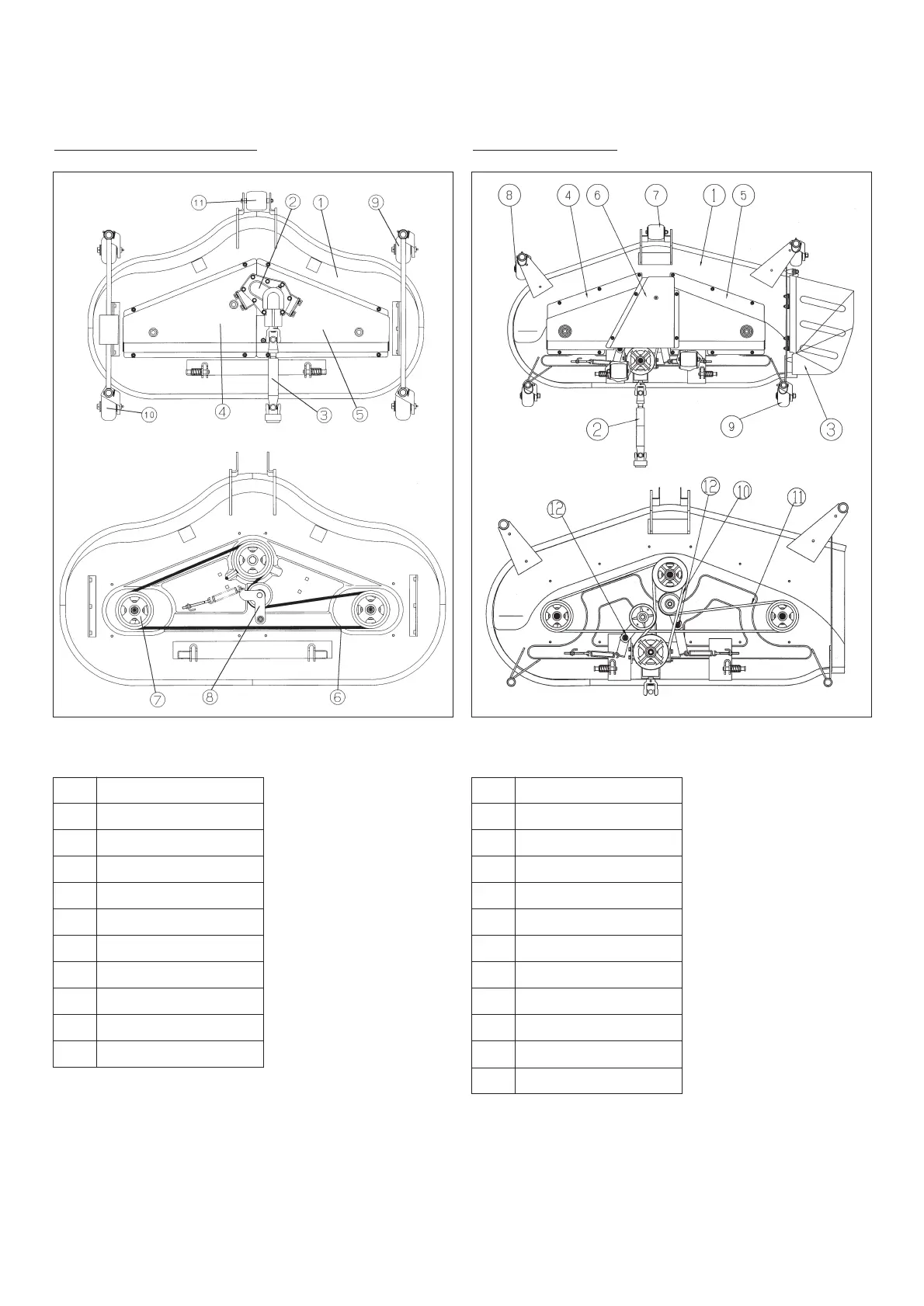

OPERATION & SERVICE MANUAL FOR MOWER DECK
SSM60-TH4330E4
Fig.4-6
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
Mower deck
Gear box
Universal joint
Belt cover (LH)
Belt cover (RH)
Belt
Pulley
Tension arm
Front gauge wheel
Rear gauge wheel
Roller
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
Mower deck
Universal joint
Discharge cover
Belt cover (LH)
Belt cover (RH)
Belt cover (Center)
Roller
Front gauge wheel
Rear gauge wheel
Belt (VC047)
Belt (VB111)
Tension arm
