5-9. Installation of the linkage on the tractor

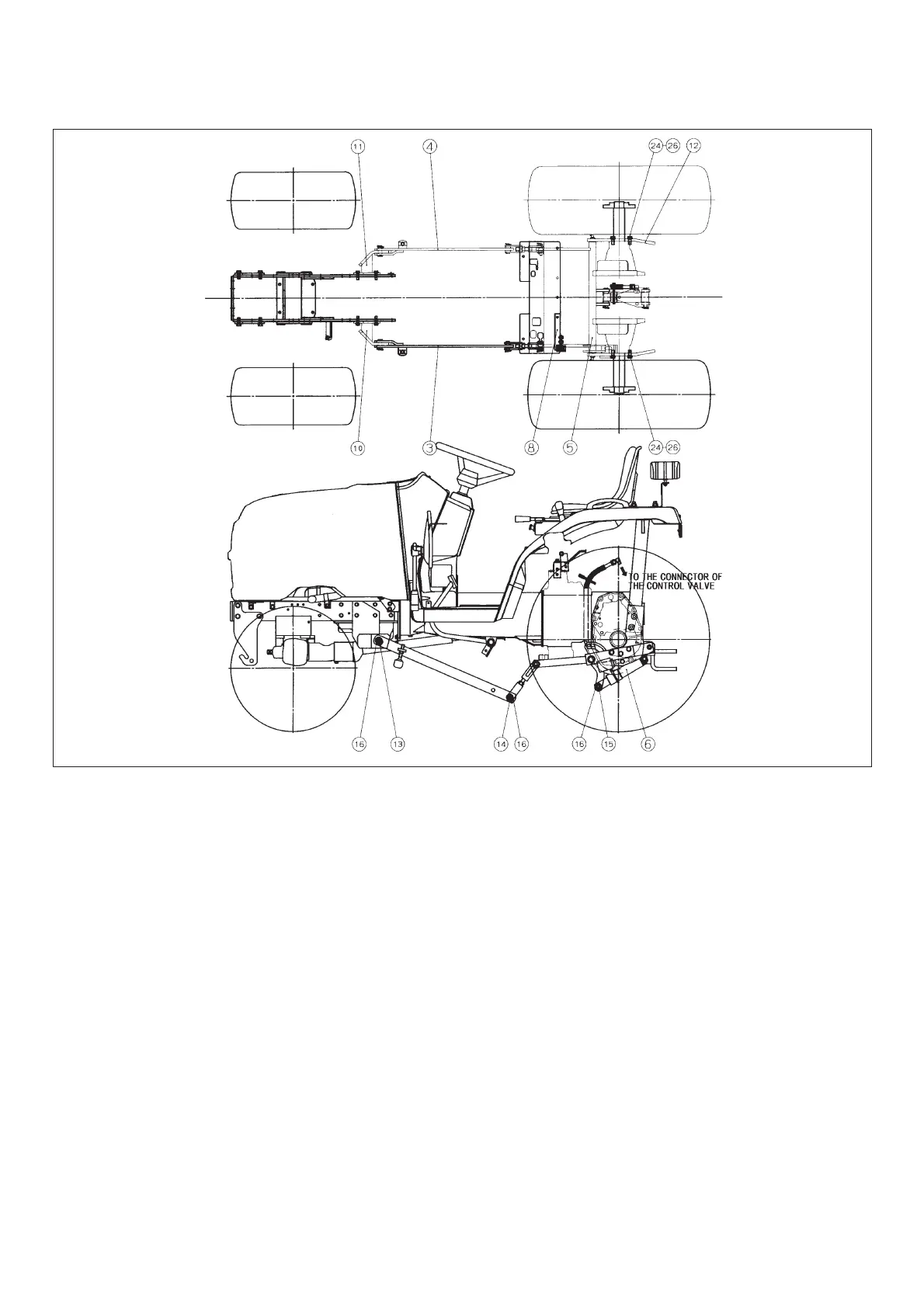

Fig.5-7
a. Install the MID-ARM (LH)(3) onto the MID-
BRACKET (LH) (10) by using the PIN (16X43)
(13) and RING PIN (16).
b. Install the MID-ARM (RH)(4) onto the MID-
BRACKET (RH) (11) by using the PIN (16X43)
(13) and RING PIN (16).
c. Set the REAR BRACKET (RH) (12) at the end
of the REAR LINK (5), then install the assembly
onto the tractor by using the bolts and washers.
d. Connect the REAR LINK (5) and the CYLIN-
DER (6) by using the PIN (15X88) (15) and
RING PIN (16).
e. Connect the MID-ARM (LH) (3) and MID-
ARM (RH) (4) respectively to the REAR LINK
(5) by using the PIN (12X42) (14) and RING
PIN (16).
