OPERATION & SERVICE MANUAL FOR MOWER DECK
5-6. Link adjustment

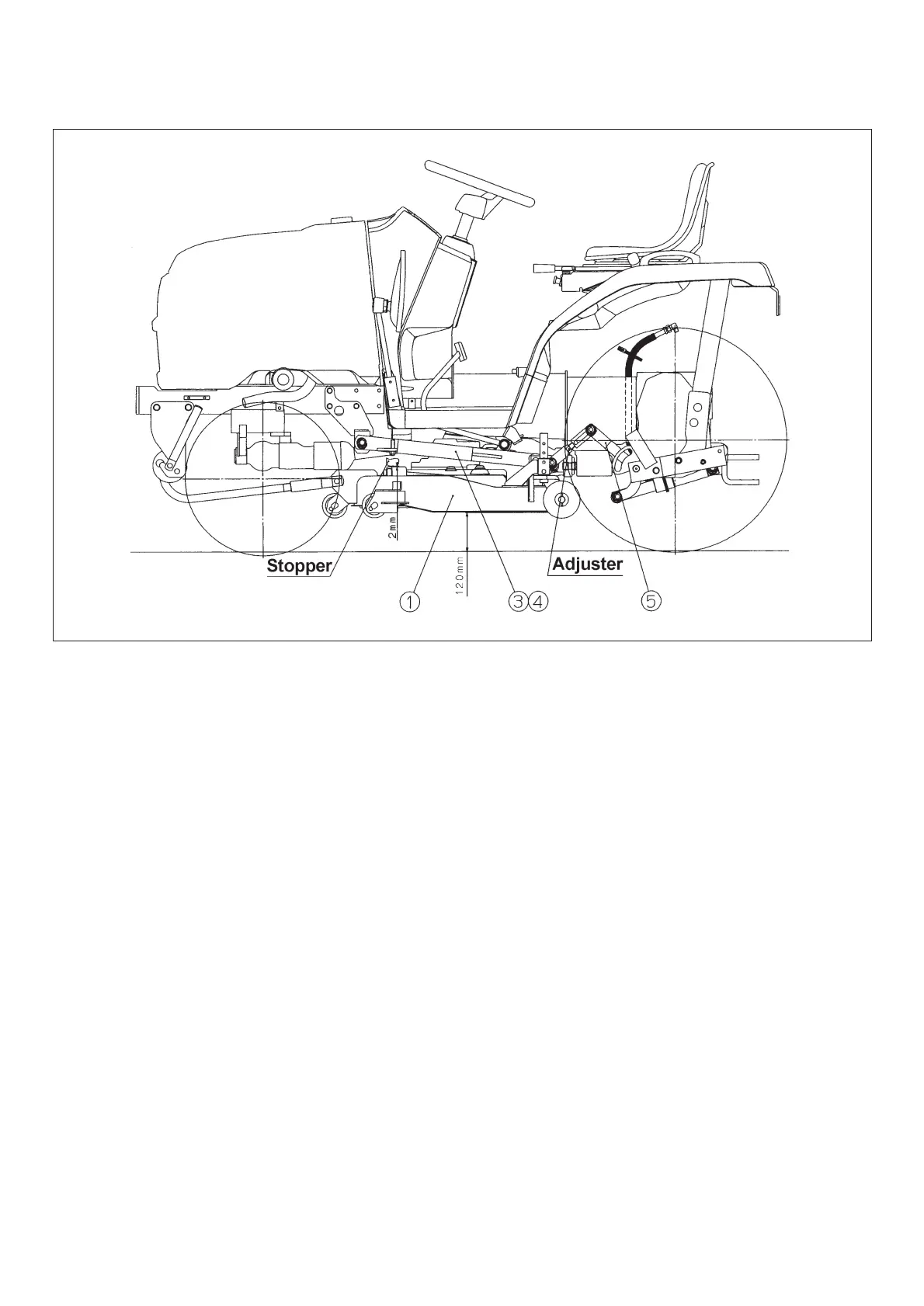

Fig.5-5
a. Start the engine and lift the link up to the highest
position by the hydraulic control lever/switch,
and stop the engine.
b. Under this condition, adjust the length of the
adjuster of the REAR LINK (5) so that the
ground clearance of the bottom surface of the
mower deck (1) is 120mm.
c. When the ground clearance of the bottom sur-
face of the mower deck is 130mm, set the stop-
per, which are on the right and left mid arms, so
that the clearance between the stopper and the
top surface of the mower deck is 2mm.
