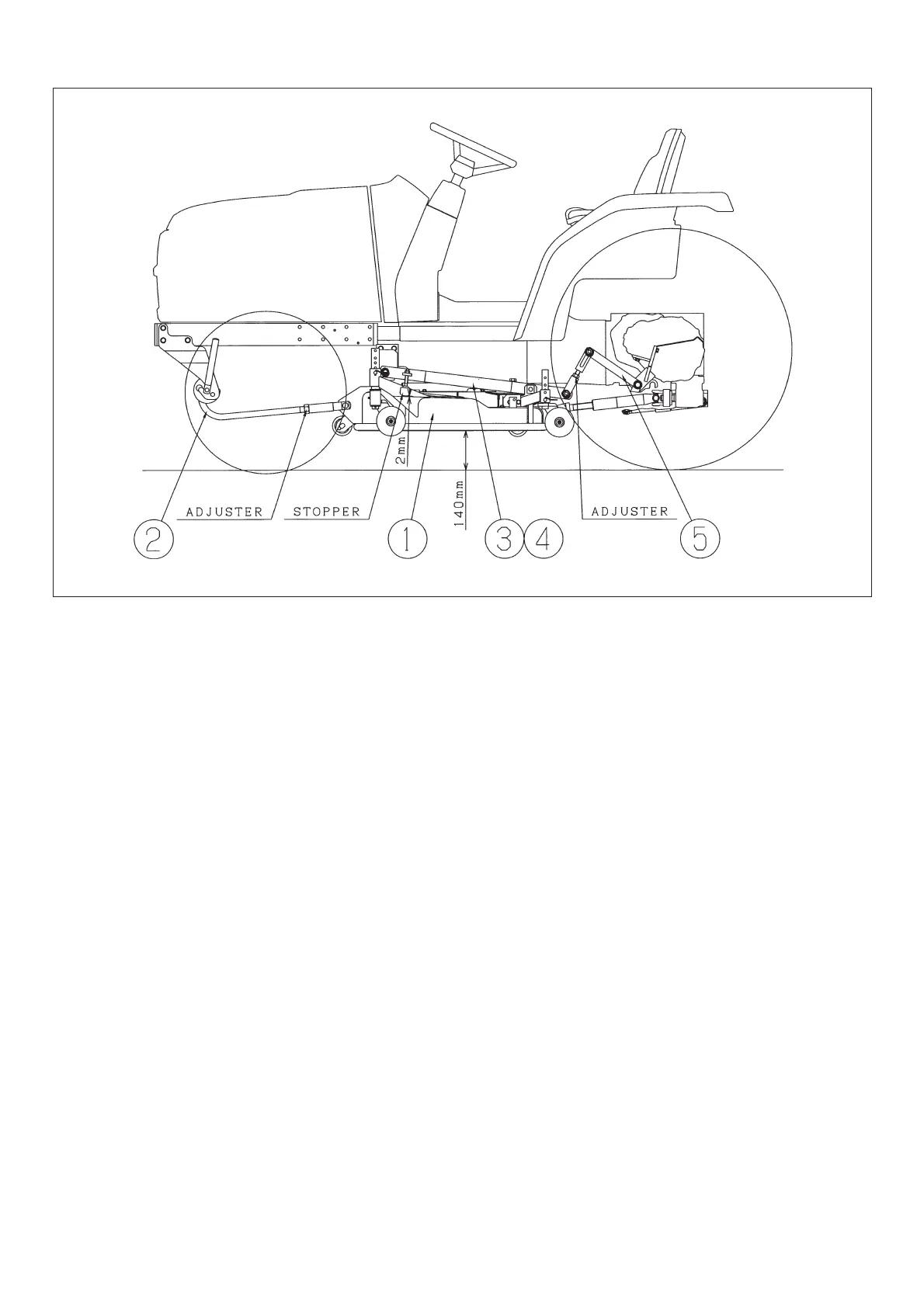

Fig.6-4
e. Turn the main switch to "ON" position and lift
down the link to the lowest position.
f. Connect the ARM/MID/LH(3)and ARM/MID/RH
(4) to the mower deck.
g. Hook the ARM/FRONT (2) onto the BRACK-
ET/FRONT/LH (9) and BRACKET/FRONT/RH
(10) fasten them by turning the lever. At this
operation, adjust the length of the ARM/FRONT
(2) so that the pin of the ARM/FRONT (2) can
be inserted into the hole of the
BRACKET/FRONT/LH (9) smoothly.
h. Connect the drive shaft of MOWER DECK (1)
with Mid-PTO shaft.
CHAPTER 6. INSTALLATION ON THE TH TRACTOR
