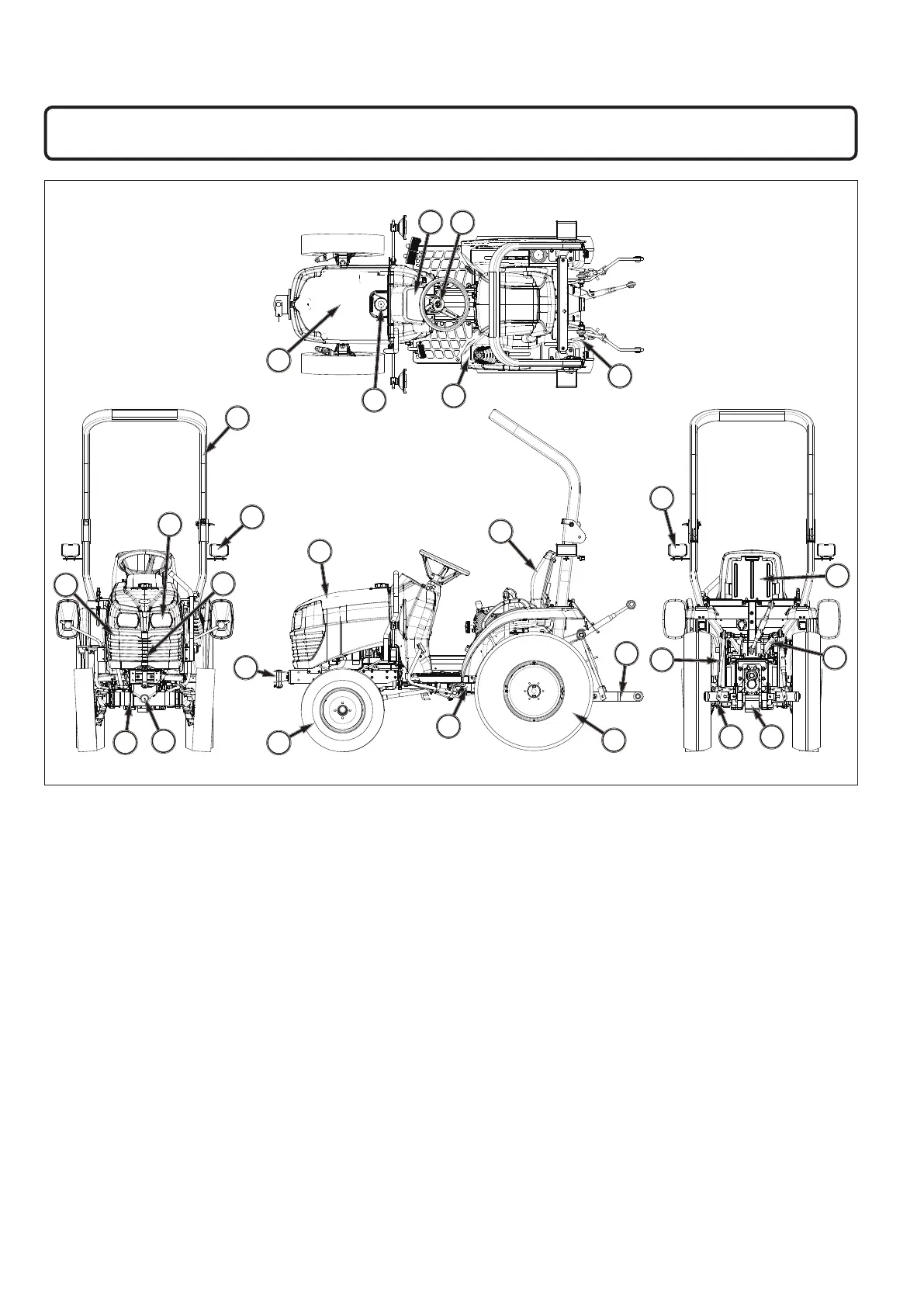

FIG. 33: Identification and terminology of major components, as given in this operator’s manual, are as follows:
MAJOR COMPONENTS
1. Front Wheels
2. Fuel Tank
3. Check Chain
4. Lift Rod
5. Lower Link
6. Rear Wheels
7. Operator’s Seat
(Except for Z type : optional)
8. Instrument Panel
9. Steering Wheel
10. Fender
11. Hood
12. Front Grille
13. Battery
14. Engine
15. Transmission
16. Headlight
17. Front Axle
18. Front Axle Pivot
19. Lift Arm
20. Rear Axle
21. Direction Indicator Lamp /
Position Lamp (front side)
22. Direction Indicator Lamp /
Position Lamp (rear side)
23. Front Hitch
24. Rear Hitch
25. Rear Registration Plate
26. ROPS
26
7
15
6
1
23
17
18
12
11
13
21
16
25
2420
5
19
22
10
3
9
8
2
14
4
