ICP 3020 / ICP 4030 iMC-P Operating instruction
page 11
5 Installation and connection of the CNC machine
5.1 Dimensions and space requirement
The space requirement of the machine is limited to the external measurements and to
sufficient room in front of the machine in order to operate and arrange the processing, plus
approx. 10 cm behind the machine to allow for connectors. The hood of the housing opens
upwards. Thus, the required total height is approx. 1,2 meters.

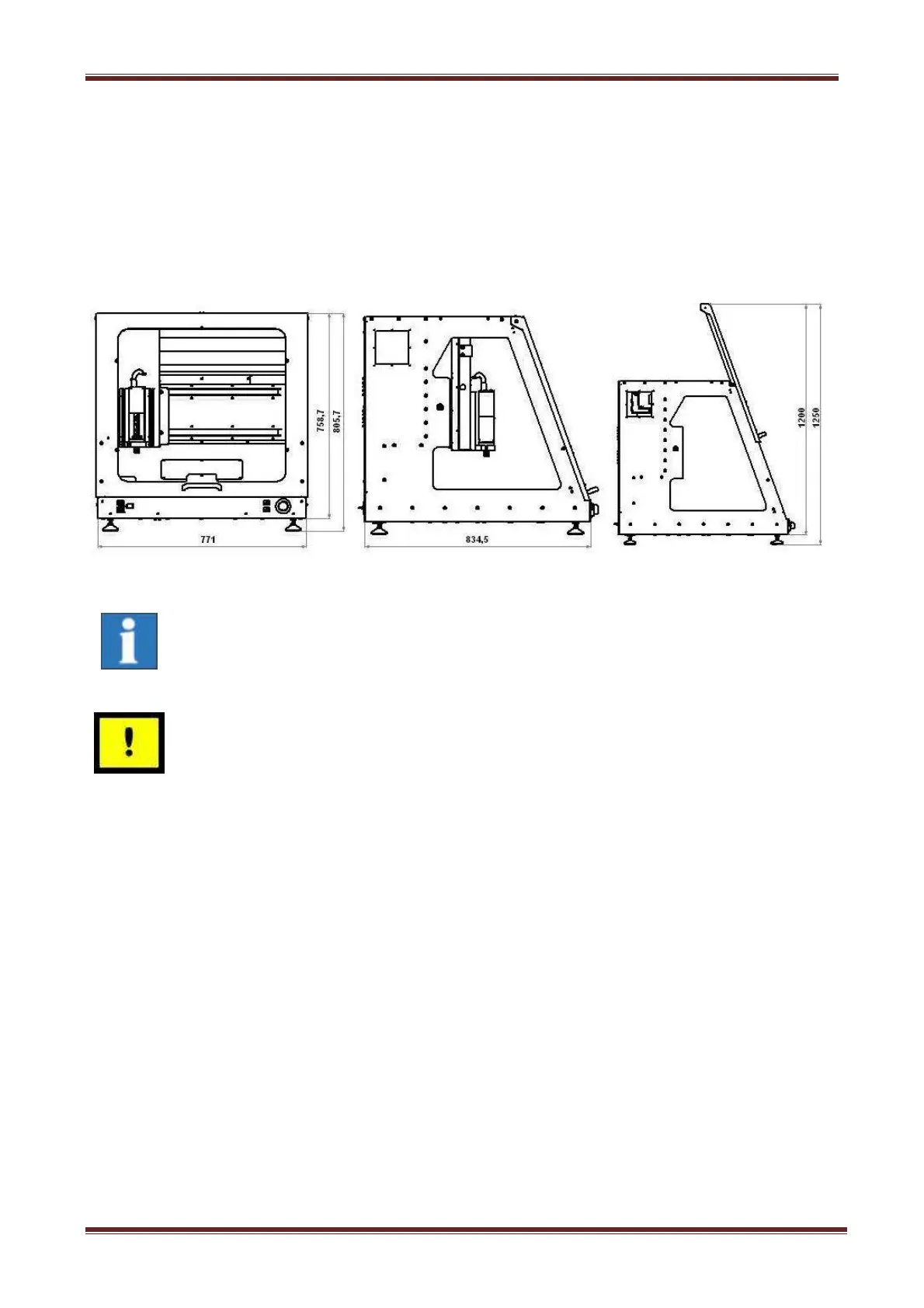

Dimensions and space requirement
Keep the triangular wrench always outside of the machine during
transportation.
When planning the floor space for the CNC machine regard the universal
access for instructed personnel during a maintenance resp. service
phase!
