Isel ICP 3020 User Manual

ICP 3020 / ICP 4030 iMC-P Operating instruction
page 17

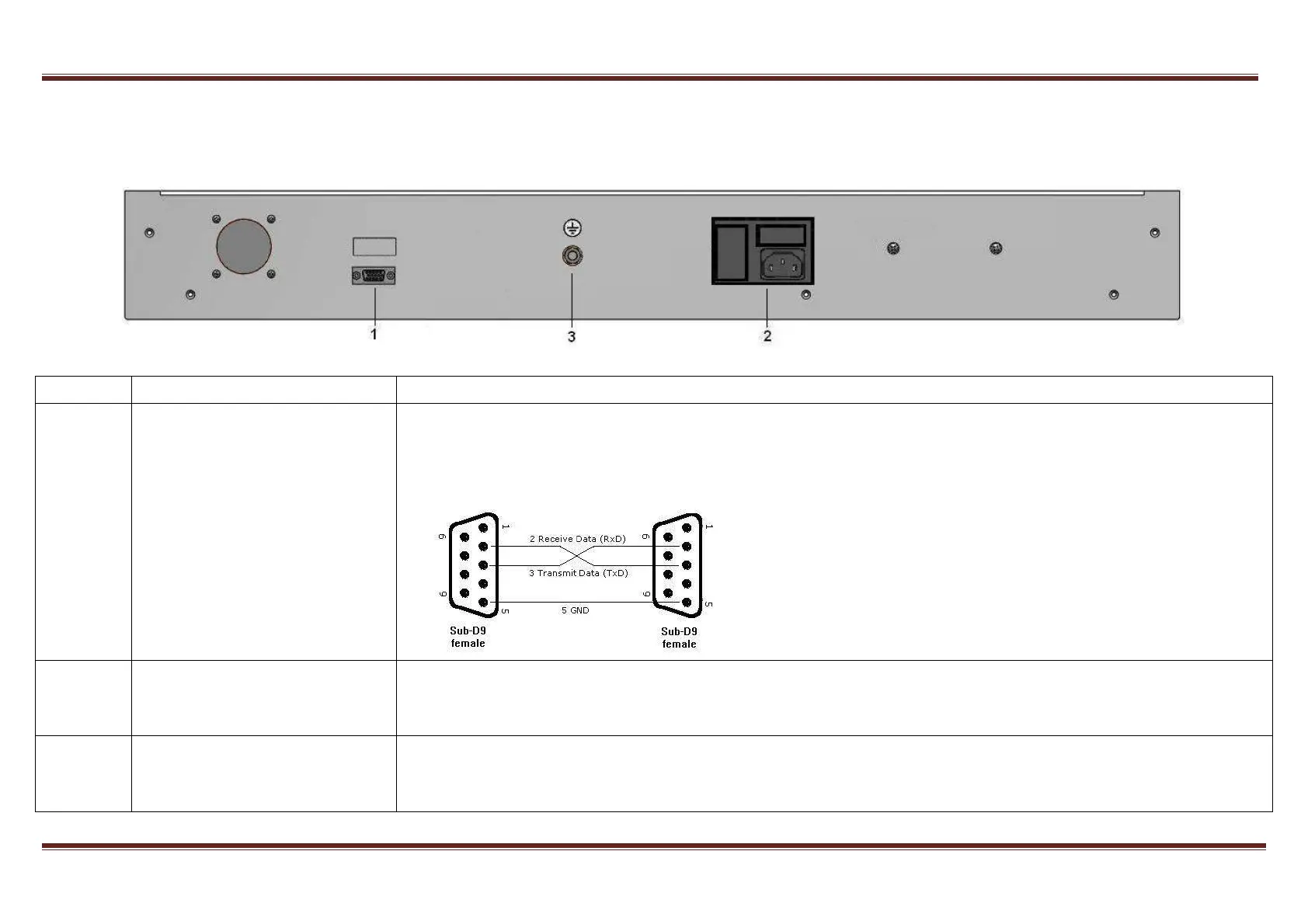

6.3 Connectors
6.3.1 Connectors on the back side of the machine
number
designation
description
1
serial interface (RS232)
SubD-9-pin plug
Communication between stepper motor control and control PC is realized via a serial interface (RS232).
Use the delivered communication (null modem) cable for connection. A software protocol realizes the
faultless transmission of the ASCII characters.
Data transfer parameters:
- 19200 baud
- 8 data bits
- 1 stop bit
- no parity
2
net input module with main
switch and fuses
110 - 230V AC, 50 - 60 Hz wide range net input module with main switch and fuses 2 x 6,3A time-lag
3
ground
grounding screw M4
