PALPC settings and machine test
Control type
Select as control type
compact control
IMC4-M / I-MC-P
RS232 settings
Select your available
COM port an transfer
rate 19200 baud
Control settings
Fill in 800 steps / rev
The value for the
spindle gradient is
depending by the
machine type.
The max. step
frequency is 40KHz
(full step).

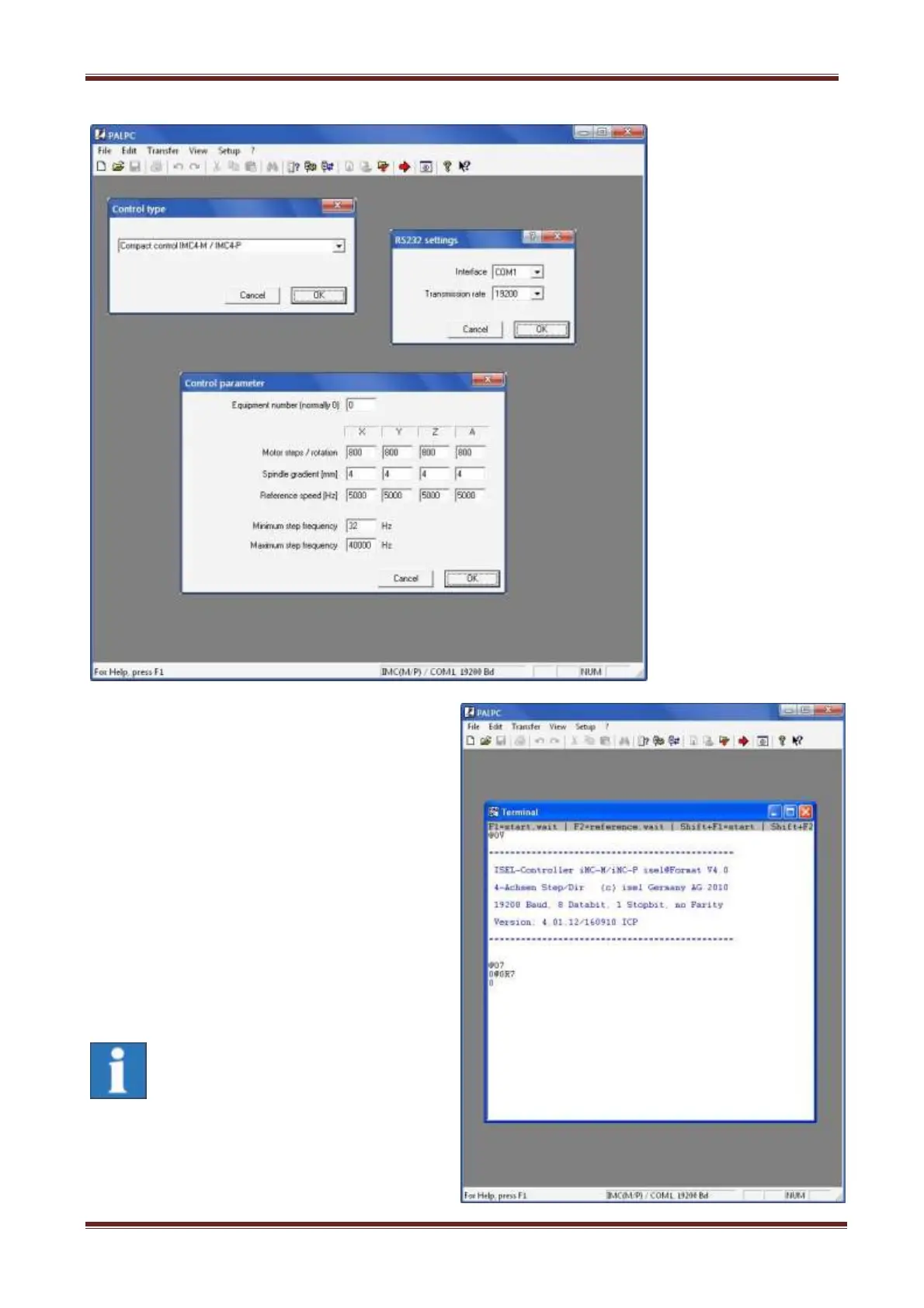

For a simple test of the machine click
on:
Transfer  Terminal
Type into the terminal window the
following commands:
@0V /request version information
@07 /initialize 3 axis
@0R7 /reference run 3 axis
Every command is receipt by a return
code (0 …no error)
Please note the factory settings for
axis directions and reference
directions.
