Iskra PFC max 6 User Manual

User's manual
PFC max 6, PFC max 12 Page 15

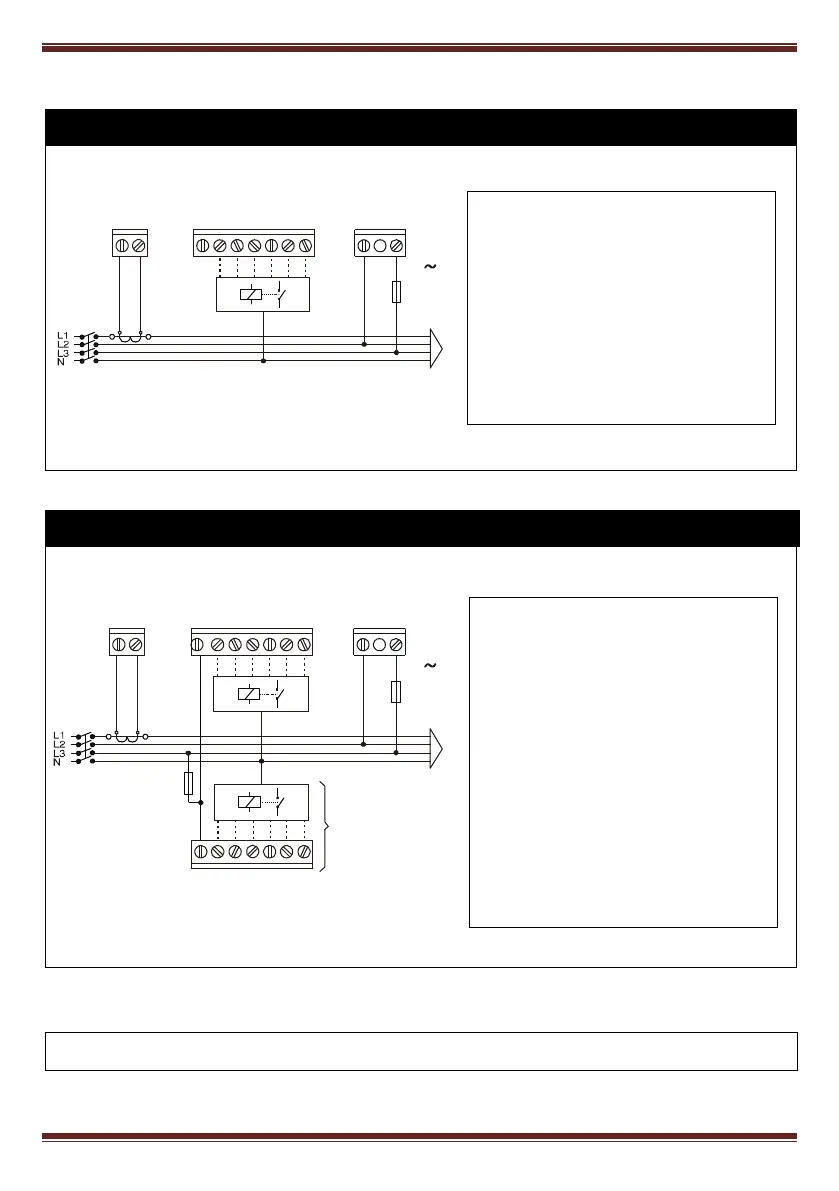

4.2.4 Schematics
PFC max 6
Fig. 4.2.- Connection schematic for PFC max 6
Nº
Terminals functions
A
Current input S1
B
Current input S2
COM
Relays common
1
Relay Output 1
2
Relay Output 2
3
Relay Output 3
4
Relay Output 4
5
Relay Output 5
6
Relay Output 6
C
Supply/Measure Input 0V
D
Supply/Measure Input(*)
(*) Rated voltage depending on type. See device label
PFC max 12
Fig. 4.3.- Connection schematic for PFC max12
Nº
Terminals description
A
Current input S1
B
Current input S2
COM
Relays common
1
Relay Output 1
2
Relay Output 2
3
Relay Output 3
4
Relay Output 4
5
Relay Output 5
6
Relay Output 6
7
Relay Output 7
8
Relay Output 8
9
Relay Output 9
10
Relay Output 10
11
Relay Output 11
12
Relay Output 12
C
Supply/Measure Input 0V
D
Supply/Measure Input(*)
(*) Rated voltage depending on type. See device label
WARNING! For PFC max12 devices (12 relay outputs) the connection between COM terminals in
the upper and lower terminal strips must be done externally.
COM
0
1 2 3 4 5 6A B
S1 S2
C D
RELAYS C1..C6
SUPPLY AND MEASURE
TERMINALS
V
P1 P2
COM 7 8 9 10 11 12
COM
0
1 2 3 4 5 6A B
S1 S2
C D
RELAYS C1..C6
RELAYS C7..C12
SUPPLY AND MEASURE
TERMINALS
V
P1 P2
