ENGINE MECHANICAL 6A–69

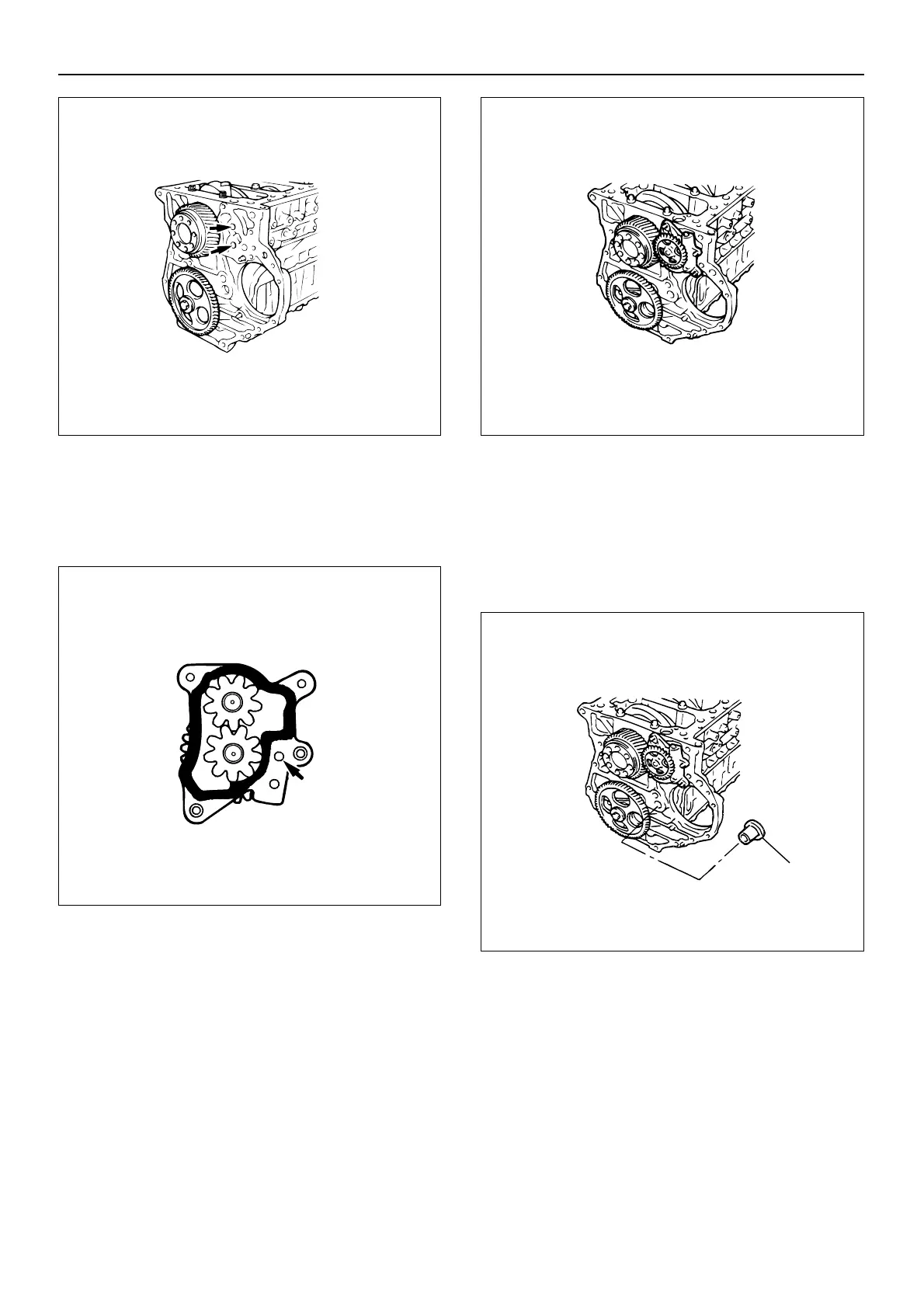

3. Apply ThreeBond No. TB1201 (or 1141E) or
equivalent to the shaded areas shown in the
illustration.
CAUTION: The sealant must not obstruct the gear
and oil ports (indicated by arrows).
4. Install the oil pump to the cylinder body within 15
minutes of sealant application.
5. Tighten the oil pump bolts to the specified torque.
Torque: 24 N·m (2.4 kgm/17 lbft)
4. Install the idler gear A and Idler gear shaft to the
cylinder block.
1. Install the idler gear shaft (1) to the cylinder body.
The idler gear shaft oil port must be facing the
cylinder head.
2. Apply engine oil to the idler gear A inside and
thrust areas.
3. Install the idler gear A (1) to the idler gear shaft.
4. Align the crankshaft gear (2) L mark and the idler
gear (1) 0 marks.
5. Tighten the idler gear bolts to the specified torque.
Torque: 29 N·m (3.0 kgm/22 lb) → 60 – 90 deg.
051EY00010
051EY00011
014EY00056
