6A–70 ENGINE MECHANICAL

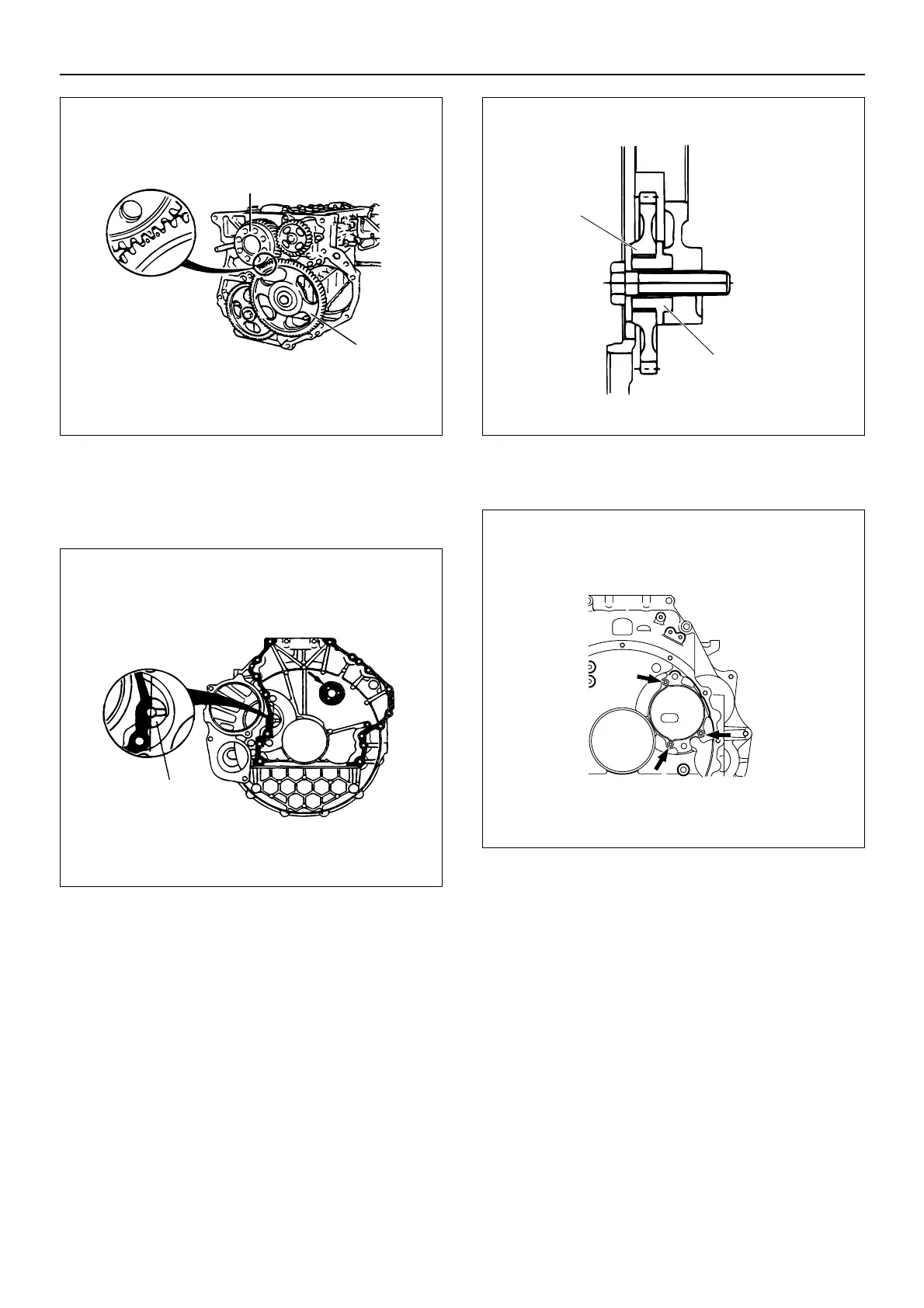

5. Install the flywheel housing.
1. Apply ThreeBond No. TB1201 (or TB1207C) or
equivalent to the flywheel housing fitting faces and
the area marked with an arrow in the illustration.
2. Install the flywheel housing to the cylinder block.
Refer to “Flywheel Housing Installation” in this
manual.
6. Install the idler gear D to the cylinder block.
1. Apply engine oil to the idler gear shaft (2).
2. Apply engine oil to the idler gear (1) inside and
thrust areas.
3. Install the gear to the gear shaft.
4. Install the gear and shaft to the cylinder block.
5. Tighten the bolts over the thrust collar to the
specified torque.
Torque: 119 N·m (12.1 kgm/88 lbft)
7. Install the cover with new gasket to the flywheel
housing.
8. Install the rear oil seal.
Refer to “Flywheel Housing Installation” in this
manual.
9. Install the flywheel to the crankshaft.
Refer to “Flywheel Installation” in this manual.
