ENGINE MECHANICAL 6A–93

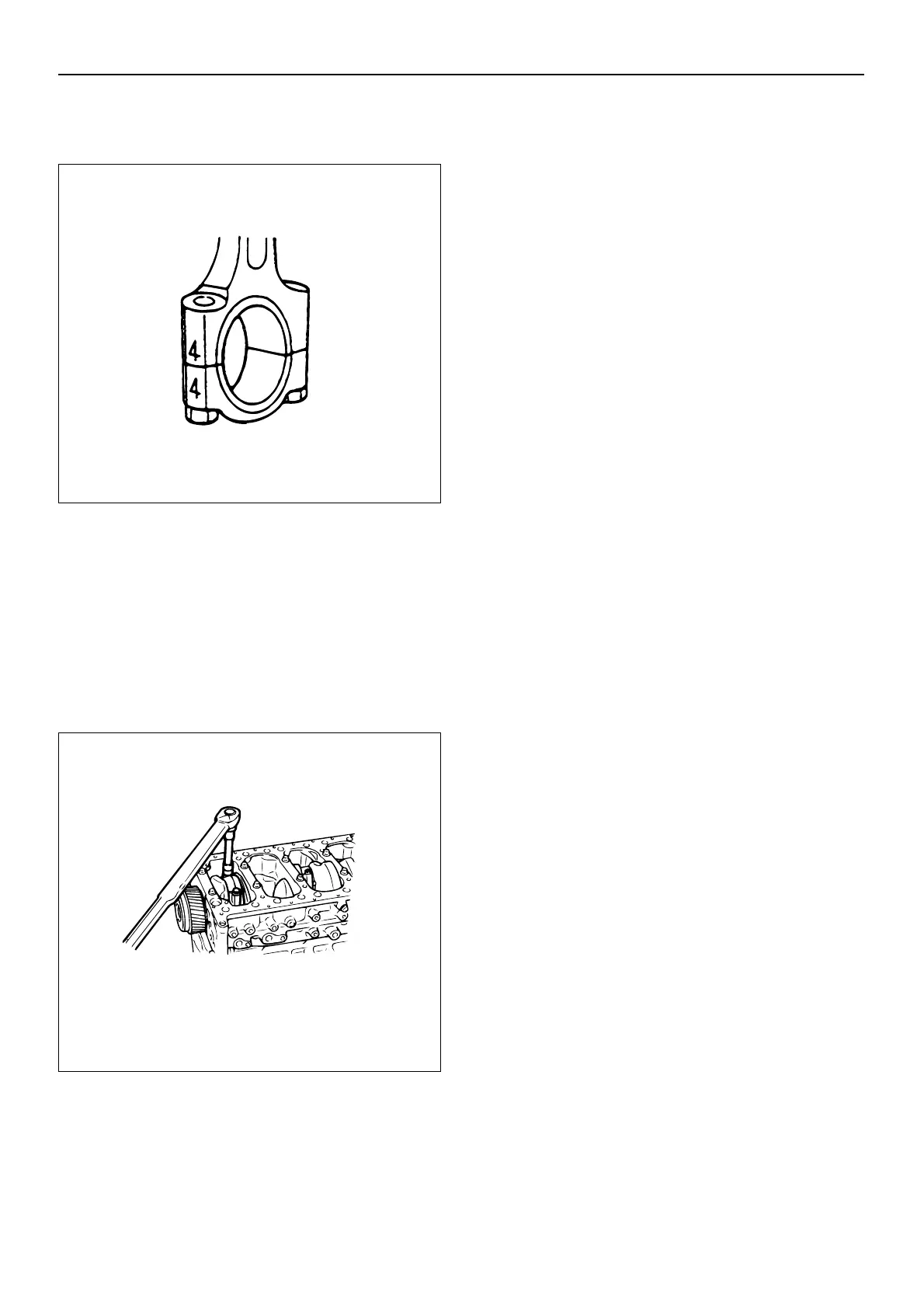

• Align the connecting rod cap cylinder number
marks and the connecting rod cylinder number
marks.
• Install the connecting rod caps.
• Apply molybdenum disulfide grease to the threads
and setting faces of each connecting rod bolt.
• Tighten the connecting rod bolts to the specified
torque.
Torque:
1st step: 39 N·m (4.0 kgm/29 lbft)
2nd step: 60 deg.
3rd step: 30 – 60 deg.
015EY00182
015EY00083
To Next Page
