6A–114
ENGINE MECHANICAL
5.

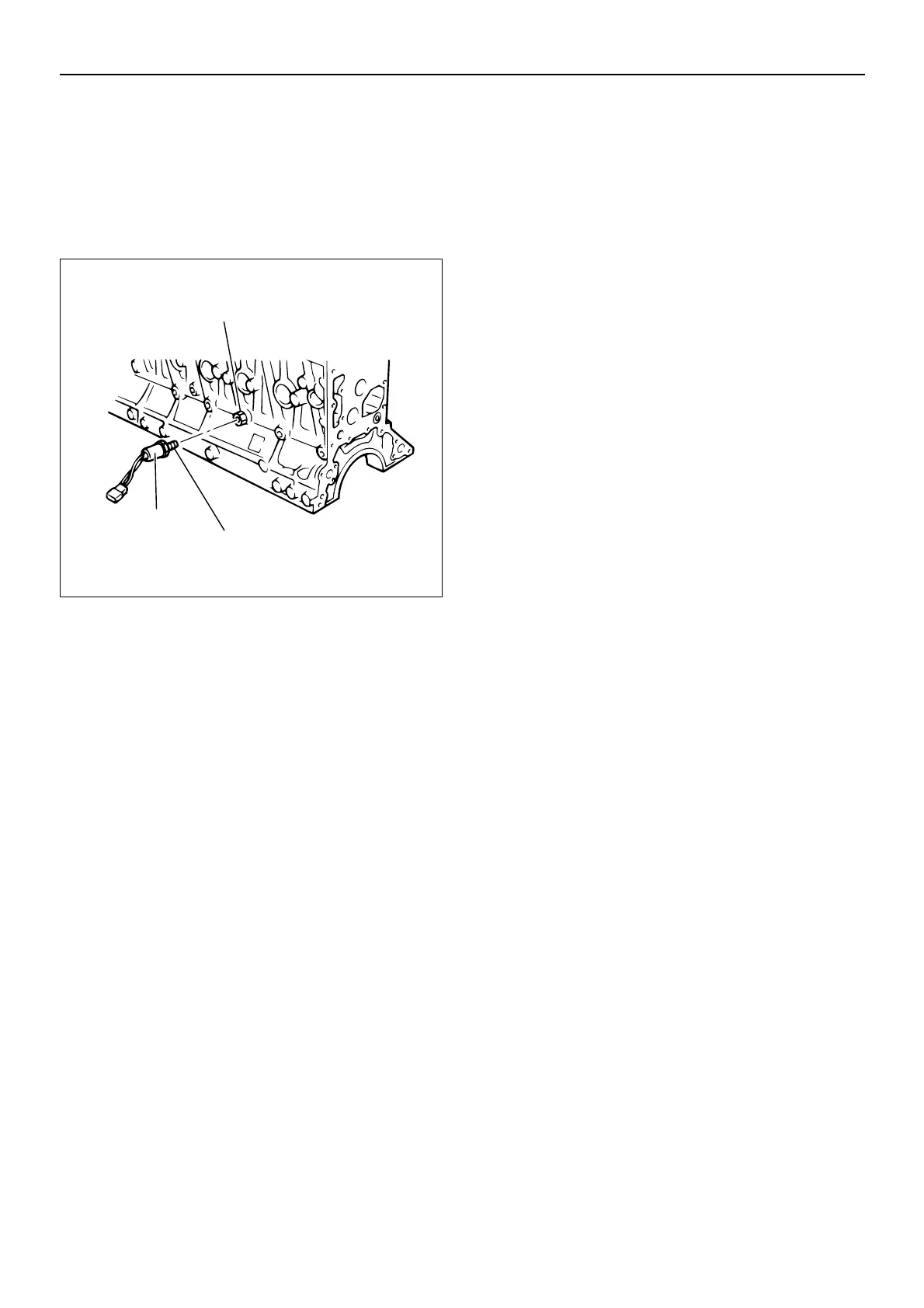

Install the oil pressure switch.
•
Install the adapter (1) to the cylinder block and
tighten to the specified torque.
•
Install the oil pressure switch (2).
Torque:
Adapter: 118 N·m (12.0 kgm)/87 lbft)
Oil pressure switch: 18 N·m (1.8 kgm/13 lbft)
Sealant
1
2
012EY00067
164
166
