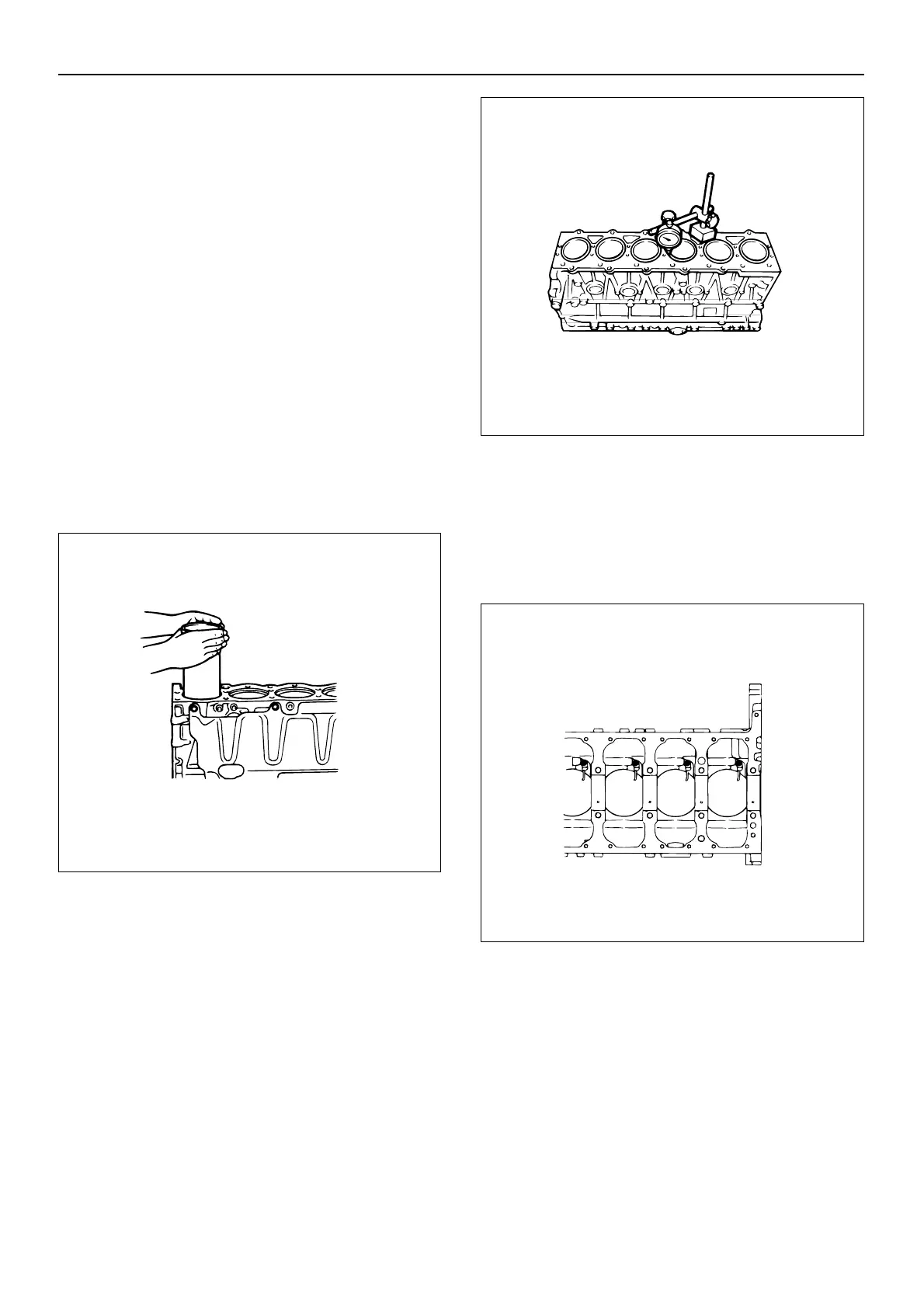

ENGINE MECHANICAL 6A–113
1. Install the cylinder liner to the cylinder block.
• Use new kerosene or diesel fuel to thoroughly
clean the cylinder liner and bore.
• Use compressed air to blow-dry the cylinder liner
and bore surface.
WARNING: Compressed air can cause personal
injury when used for cleaning. Wear safety glasses
and protective clothing.
NOTE: All foreign materials must be carefully removed
from the cylinder liner and the cylinder bore before
installation.
• Apply engine oil to the outside surface of the
cylinder liner.
• Install the cylinder liner to the cylinder block from
the top of the cylinder block with your hand.
• Check the cylinder liner projection.
NOTE:
1) Do not apply excessuve force or strike the cylinder
liner during installing.
2) Take care to not drop the cylinder liner when the
cylinder block turns over.
2. Install the oil jet to the cylinder block.
Tighten to the specified torque.
Torque: 21 N·m (2.1 kgm/15 lbft)
Be sure that the oil jet tip is aligned with the piston
cooling hole.
Do not bend or damage the oil jet.
3. Install the crankshaft to the cylinder block.
Refer to “Crankshaft Installation” in this manual.
4. Install the crankcase.
Refer to “Crankshaft Installation” in this manual.
012EY00044
012EY00045
012EY00046
To Next Page
