SERVICE INFORMATION 0B–3

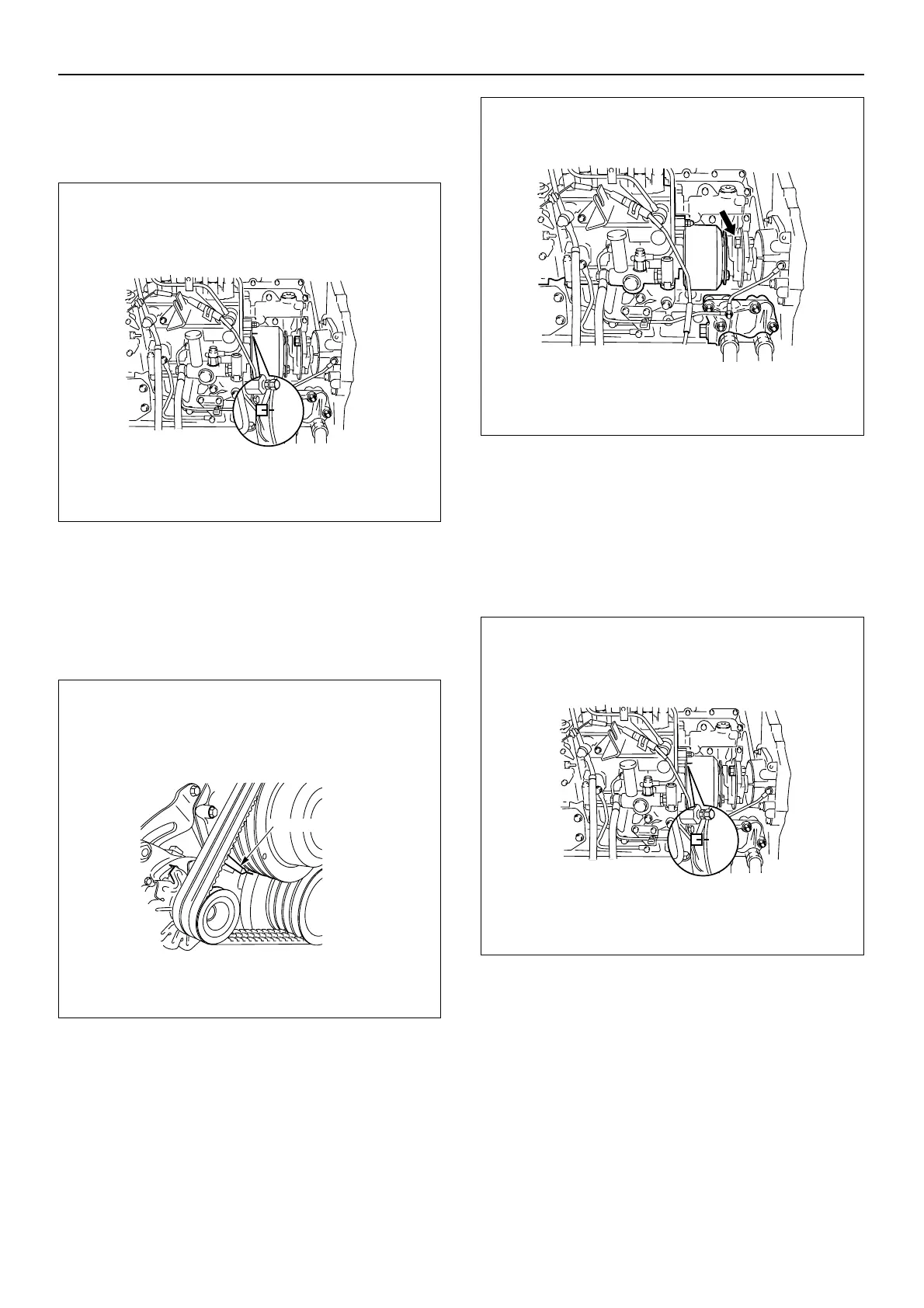

3. Check that the timing advancer notched line is aligned
with the injection pump notched line.
If the notched lines are out of alignment, the injection
timing must be adjusted.
Injection Timing Adjustment
1. Rotate the crankshaft in the normal direction of engine
rotation until the timing mark on the timing advancer
can be seen.
2. Align the injection timing mark on the damper with the
pointer on the front cover.
3. Loosen the two coupling bolts.
4. Move the timing advancer to the correct timing.
5. Tighten the two coupling bolts.
Torque: 88 N·m (9.0 kgm/65 lbft)
6. Rotate the crankshaft two turns in the normal direction
of engine rotation.
7. Verify the new setting is the correct injection timing.
8. Connect the negative battery cable.
040EY00016
