4. NOMENCLATURE AND FUNCTIONS
6

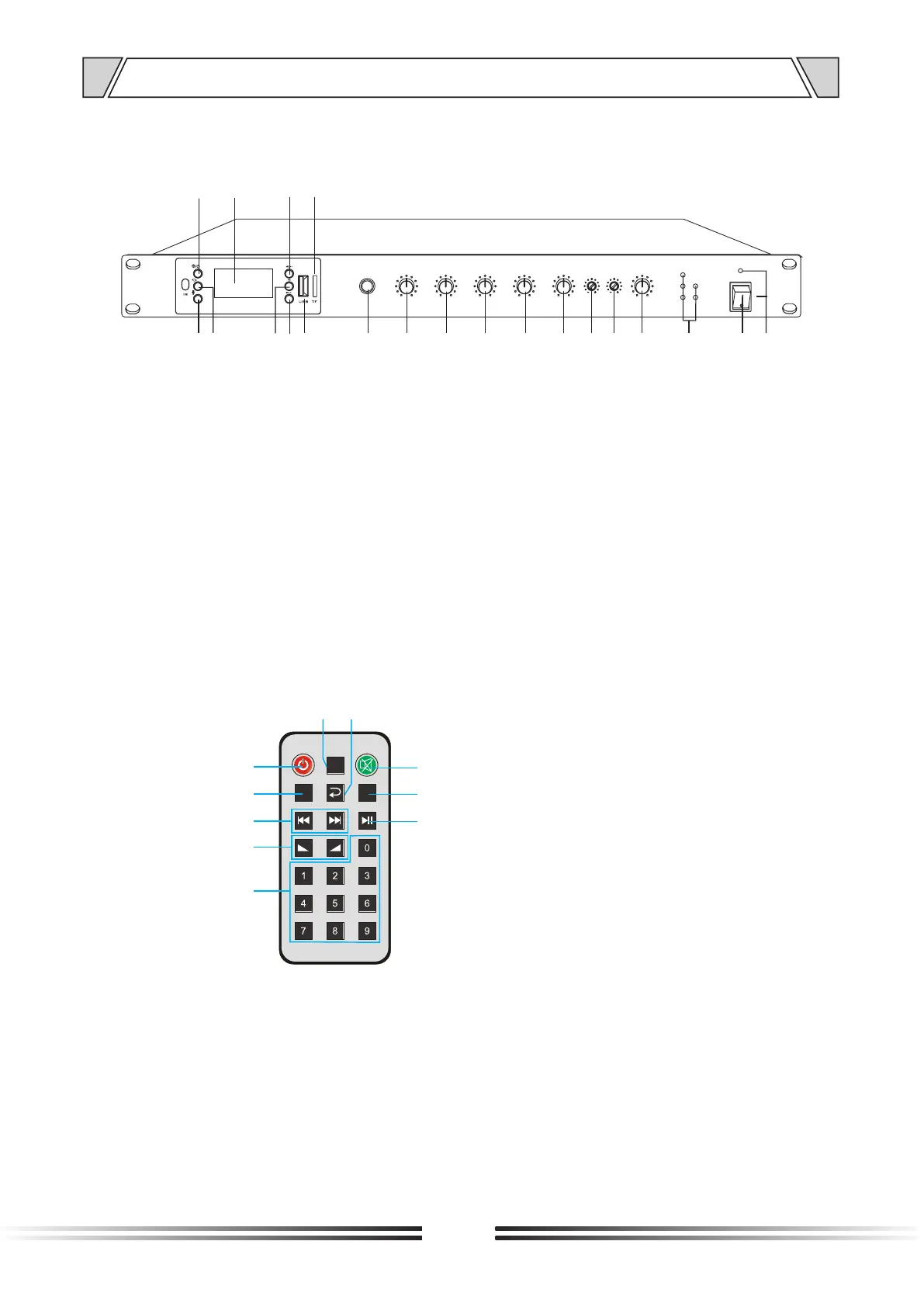

4.1 FRONT PANEL
1. Power switch
2. Mode
3. Previous/next
4. Volume increase/decrease
5. 0~9 number button
6. Play/pause
7. Sound effect control
8. Mute
9. Cycle play button
10. Pause
Remote control usage attention:
1. When install battery, please mind electrode.
2. Please let remote control aim right with window of host machine.
3. When found remote distance get short and insensitive, please change battery.
4. Please take out battery when don't use it for a long time.
5. Take it easy in case of falling.
Normal usage distance of remote control:
Remote control distance: 8 meter, angle: level ±35, vertical±15.
4.2 Remote control
MODE
EQ
STOP
1
2
3
4
5
6
7
8
910
1. Recording function button
2. MP3 loop playback function button
3. Play/Pause
4. Next song/Volume reduce
5. USB interface
6. MIC1 unbalanced input jack
7. MIC1 volume control knob
8. MIC2 volume control knob
9. MIC3 volume control knob
10. MIC4 / AUX1 volume control knob
11. AUX2 volume control knob
12. BASS adjustment potentiometer
13. TREBLE adjustment potentiometer
14. Master volume control
15. PROT/100V/4-16 /CLIP/SIGΩ
status indicators
16. The power switch
17. The power indicator
18. TF card slot
19. Previous song/Volume up
20. LCD display
21. Mode function button
ON
OFF
POWER
MIC1 INPUT
PROT
MIC 4/AUX 1
AUX 2MIC 3
MIC 1
MIC 2 MASTER
100V
SIG
CLIP
TREBLEBASS
10 0 10 0 10 0 10 0 10 0 10 0
4-16
Ω
16 17
6 7 8 9 10 11
12
13 14
15
1
4
1920
5
2
3
21
18
