8
5. OPERATION ILLUSTRATION

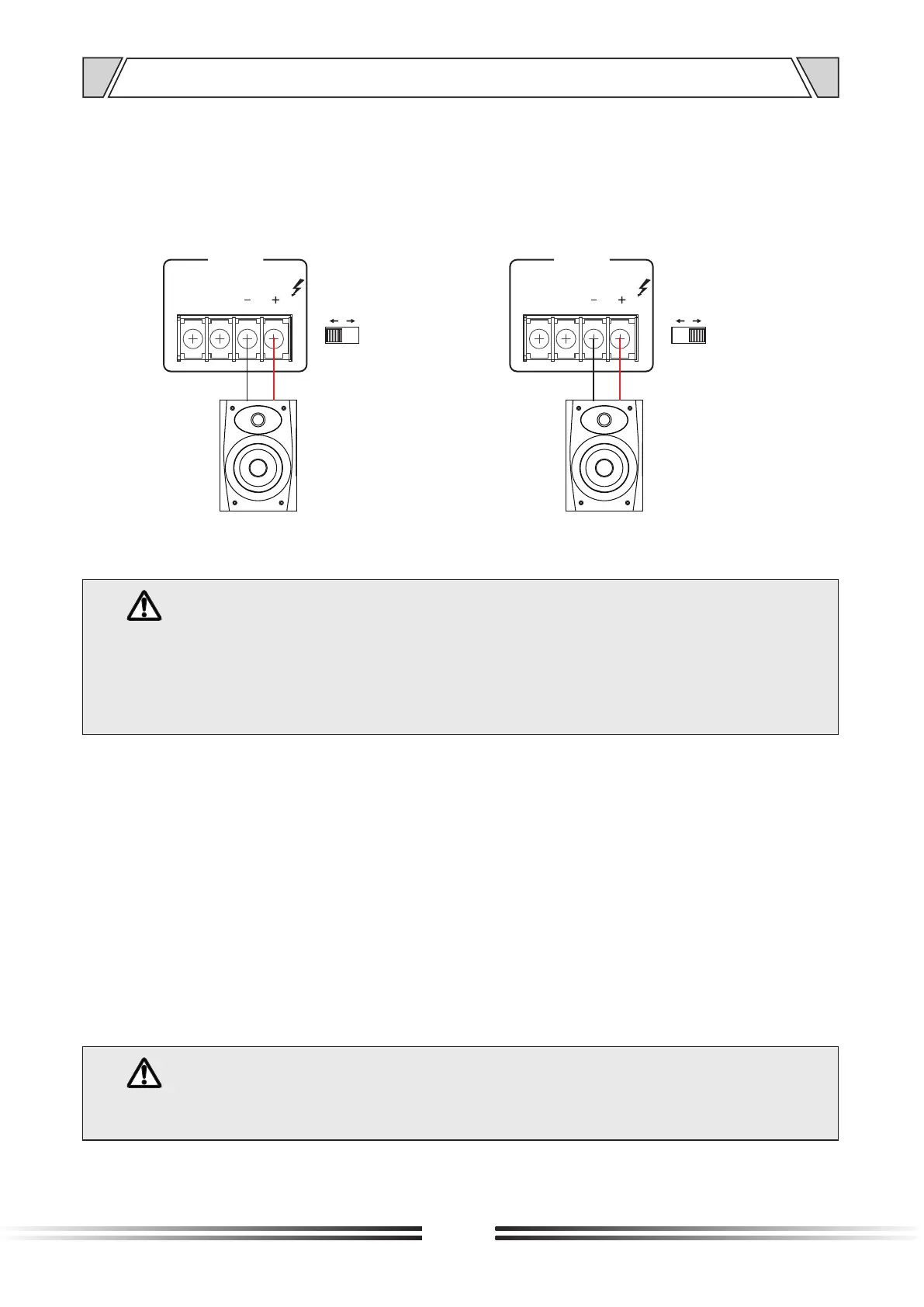

1.Connect the speakers:
Constant pressure speaker: According to the rated
power of the power amplifier, connect the constant
power speaker
①When the 100V and 4-16Ω selector switch
to 100V position, as shown below:
②When the 100V and 4-16Ω selector switch
to 4-16Ω position, as shown below:
Fixed resistance speaker: 4-16Ω
Note:
1. Before connecting the speakers, please make sure that the equipment is powered off. In the
case of power on, may have the risk of electric shock.
2. Please make sure there are no applied load to the speaker cables.
3. During the installation of speakers, please make sure that the sum of the rated input power
of the speakers to be connected is less than rated power of equipment.
2.Connect external devices:
①Please ensure that the equipment and all equipment will be connected are powered off.
②Using the corresponding cable to connect this equipment and other external equipment.
3.Connect the power line and turn it on:
①Please make sure that the power switch of equipment and its connected equipment are
turned off (in the OFF position).
②Turn the volume knob to the left
③Connect the supplied power line to the AC IN interface
④Plug the power line into the applicable socket
⑤Turn on the connected equipment (CD player, etc. ), and then turn on the equipment.
Note:
1.Before powering on, please check and make sure there is no problem with the cable and connection.
2.When you turn off the system, turn off the equipment, and then turn off the connected equipment.
4-16Ω100V
OUTPUT
100V/4-16Ω
NC NC
SPK-
SPK+
4-16Ω100V
OUTPUT
100V/4-16Ω
NC NC
SPK-
SPK+
To Next Page
