ITOH DENKI CBV30 - I;O Circuit

21
CBV30UserManual
6. Installation/Wiring
I/OCircuit
Safety precautions
Advance preparation
Check ProductInstallation/Wiring
Maintenance/Inspection
Specifications Control/Operation
6-4.

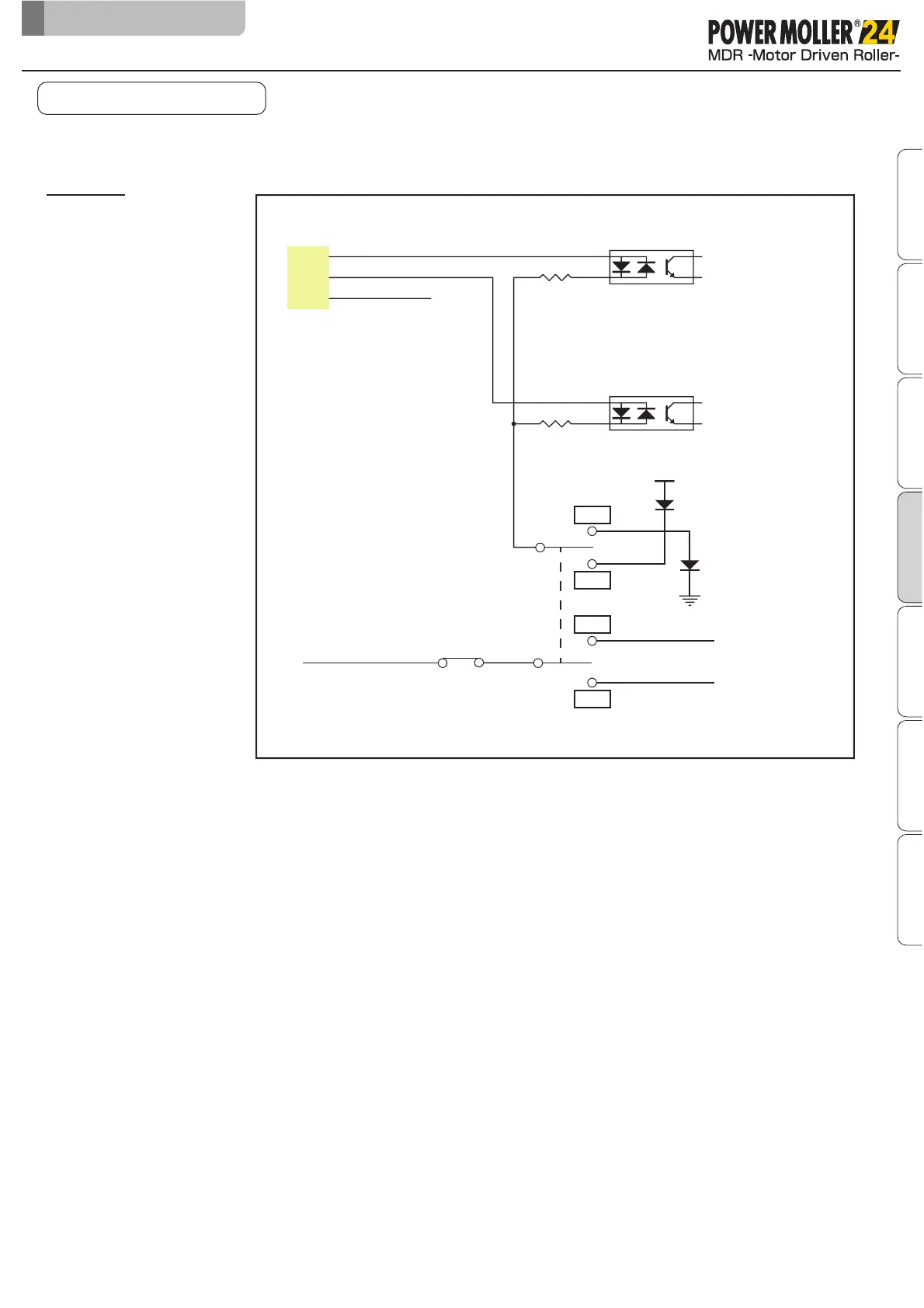

I/OCircuit
RUN_IN
DIR_IN
5.1kΩ
5.1kΩ
+24V
1
2
STTS OUT
3 STTS OUT
3
CN2
PNP
Open Drain output
PNP
Polyswitch
NPN
Open Drain output
PNP
NPN
NPN
＊ Set up a protective resistor so that the current flowing STATUS OUT will be 25 mA or lower.
