Initializing, Connecting, and Programming the ERT Module
-0909-006 100W/100W+ and 100WP/100WP+ Datalogging Water ERT Module Installation Guide 12
Proprietary and Confidential
To connect the 100W/100W+ to the register

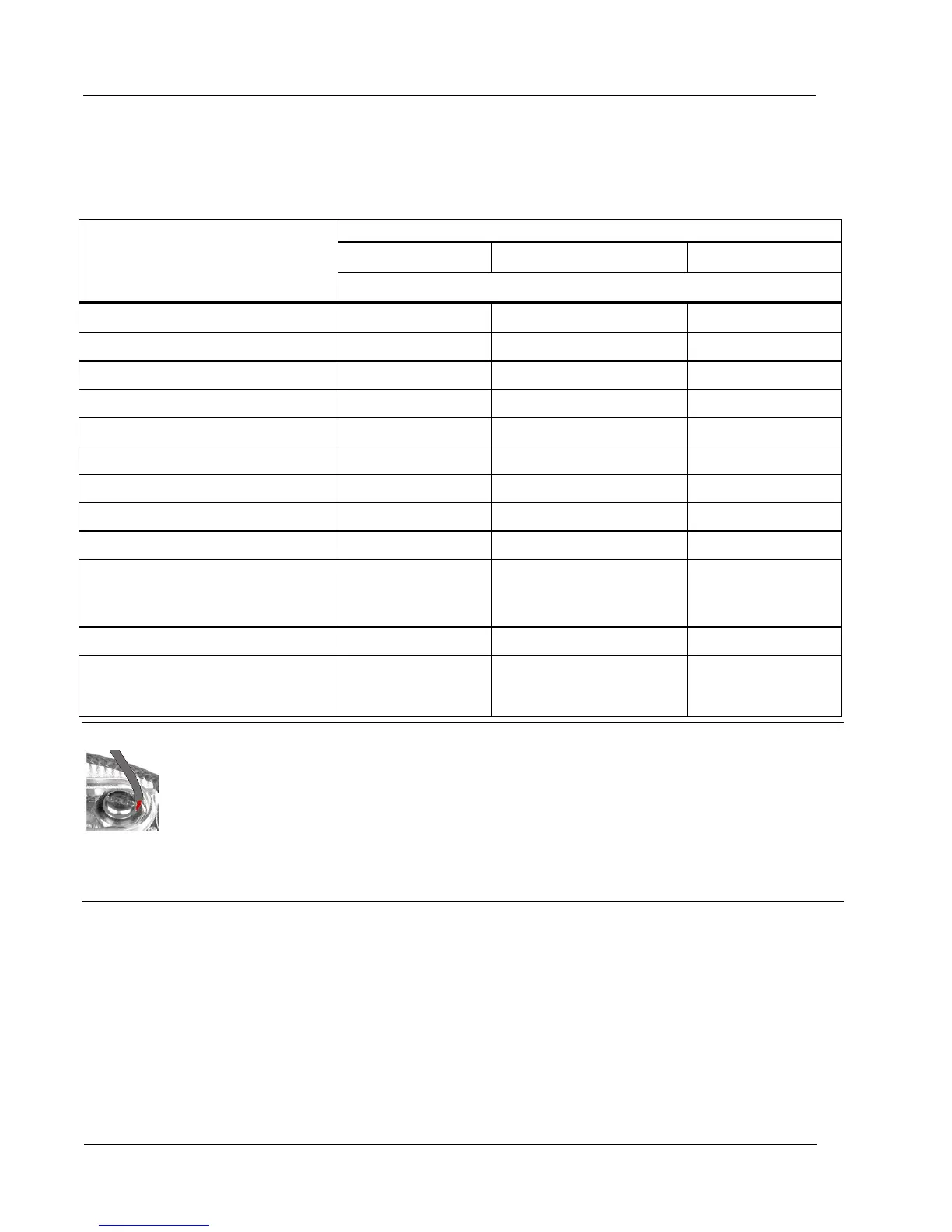

Connect the 100W/100W+ wires to the register screw terminals according to the following table.
Red (data) Black (power/clock) White (ground)
Register screw terminal
Elster AMCO Invision
R G B
Elster AMCO Scancoder
R G B
Elster AMCO evoQ4 (Q4000)
R W B
Hersey Translator
G R B
Badger ADE
G R B
Sensus ECR
G R B
Sensus ICE
G R B
Metron Farnier
G R B
Itron (Actaris) Coder
G R B
Neptune ProRead
E-Coder
ARB-V
R B G
Performance ETR
G R B
Severn Trent SM700
SmartMeter
(Sensus Protocol)
G
R
B
Caution Wrap the wire one complete revolution around the register screw.
Completely tighten the register screw and verify the wire insulation is not under the screw terminal heads or
intermittent electrical connection may occur. You must use a moisture-proof sealant if the meter is installed
outdoors or in any environment where moisture can collect on the screw terminals.
Connect the ERT module to the register cable using the Itron Splice Kit (see Using the Itron Splice Kit).
